Description

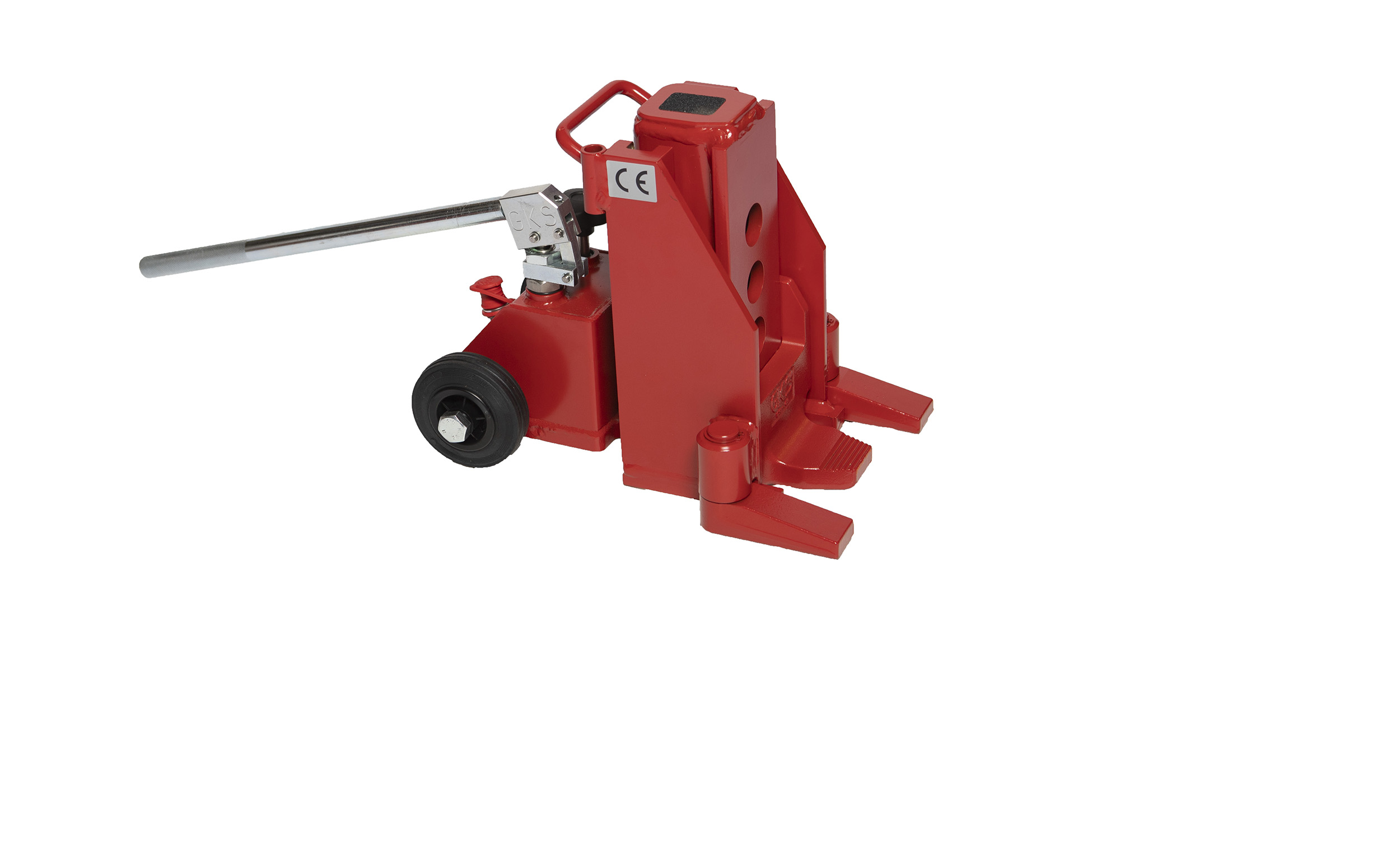

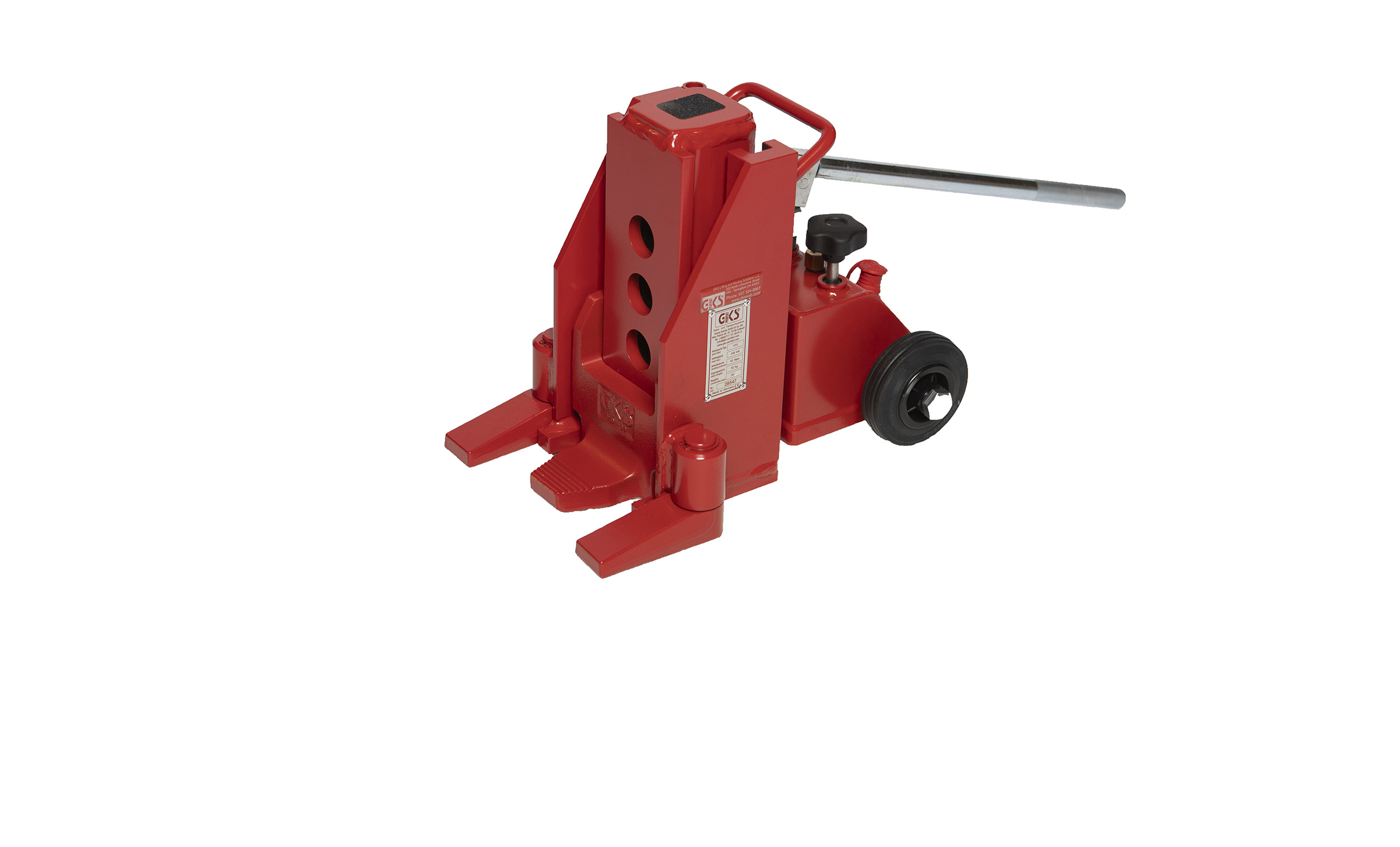

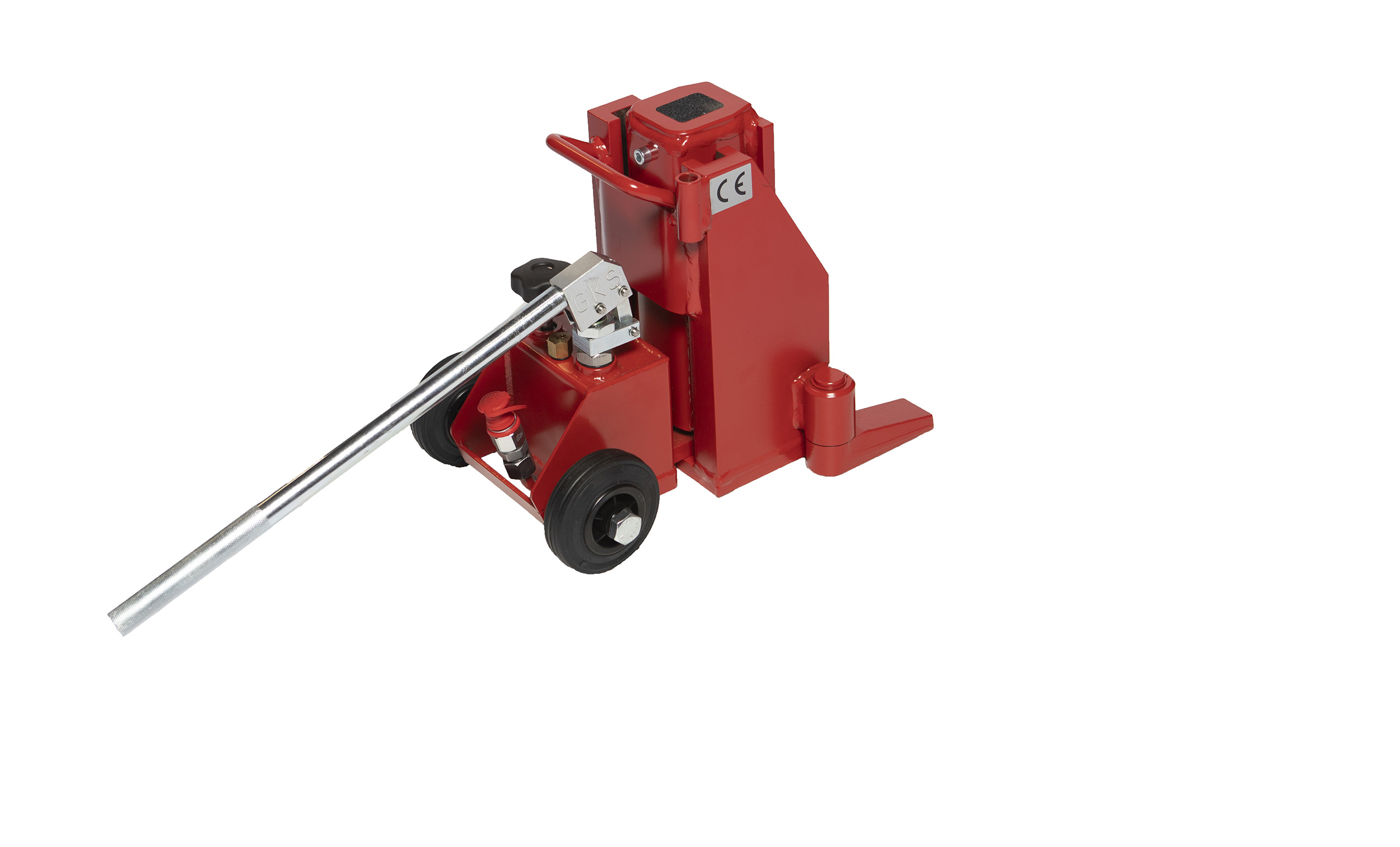

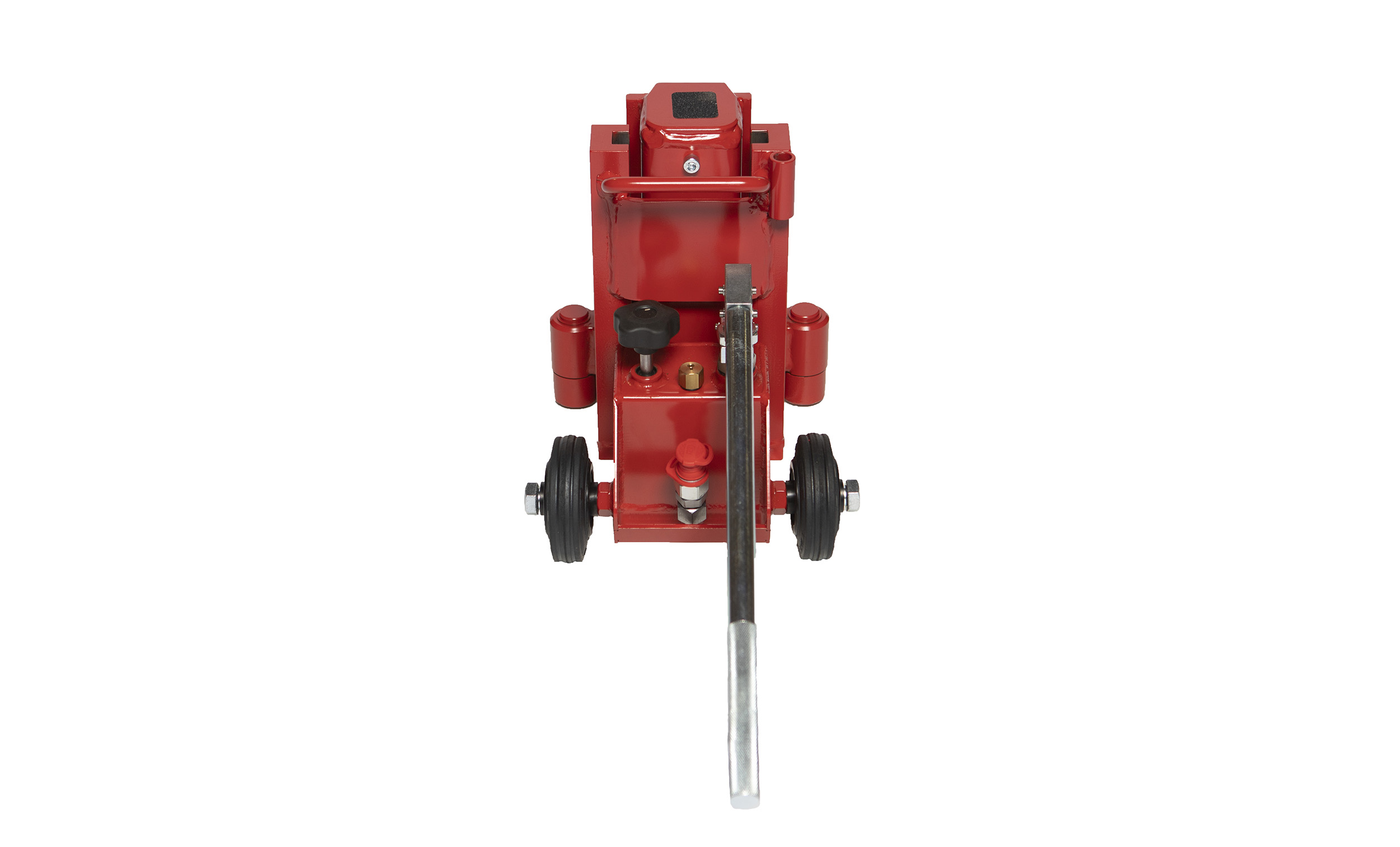

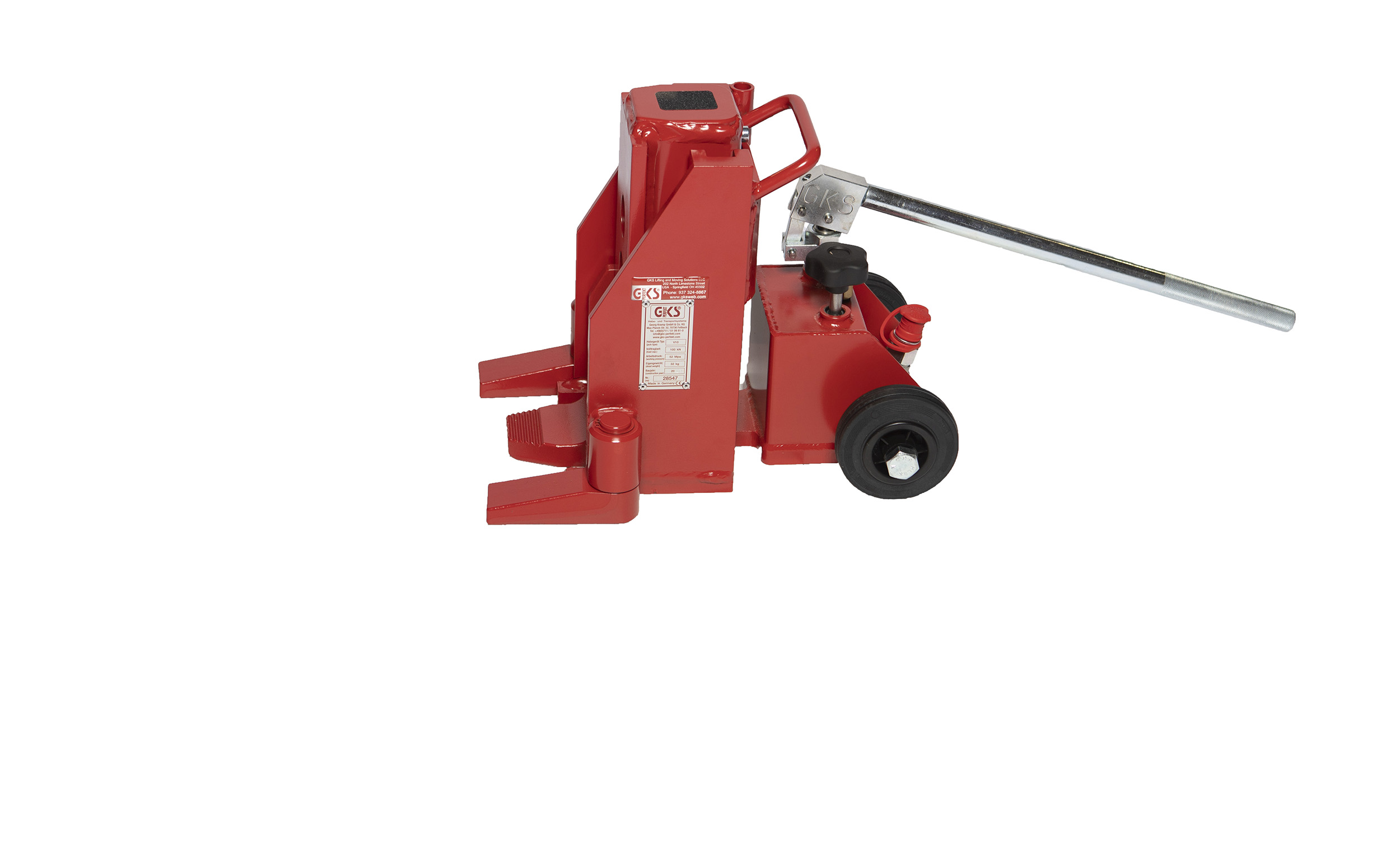

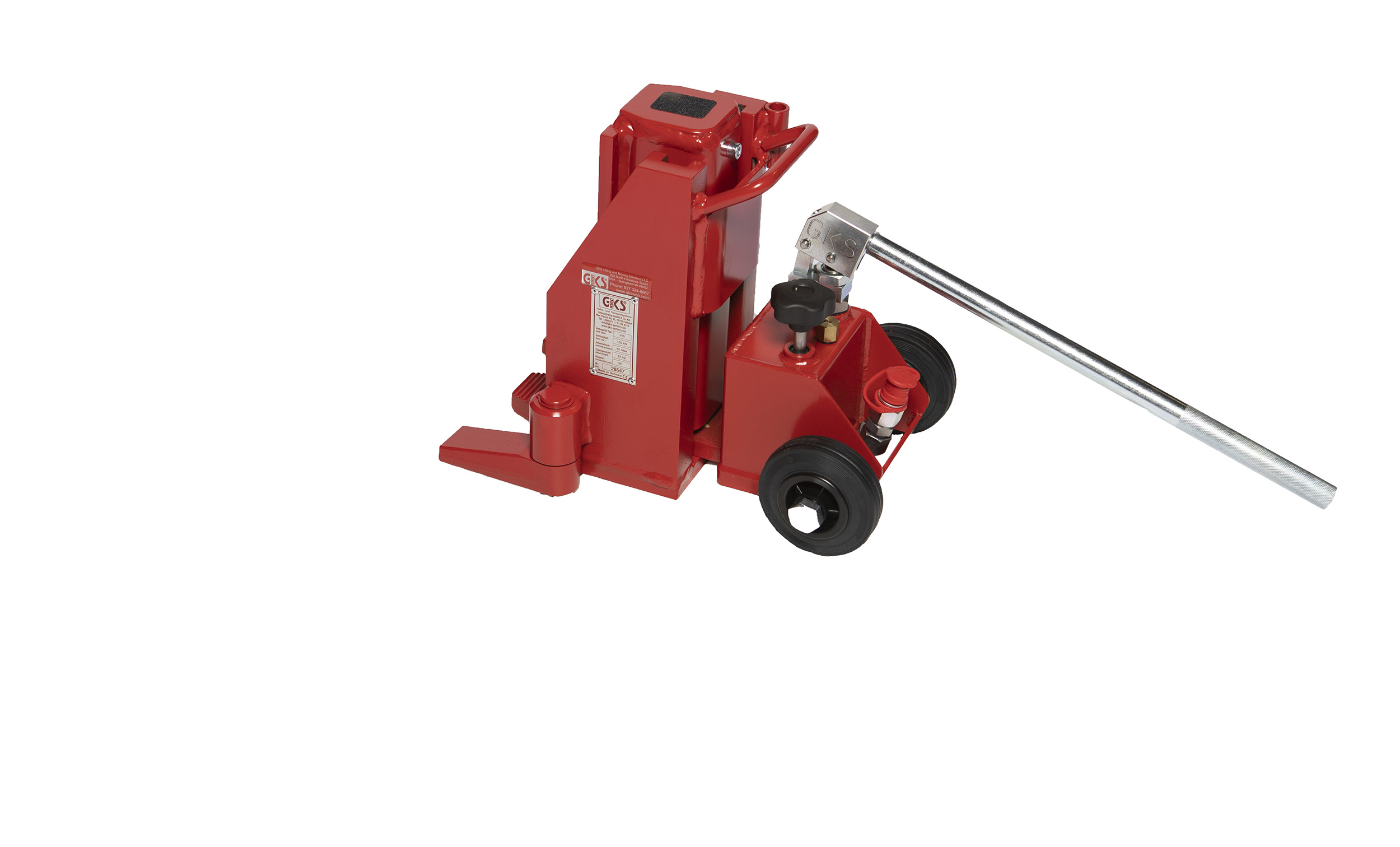

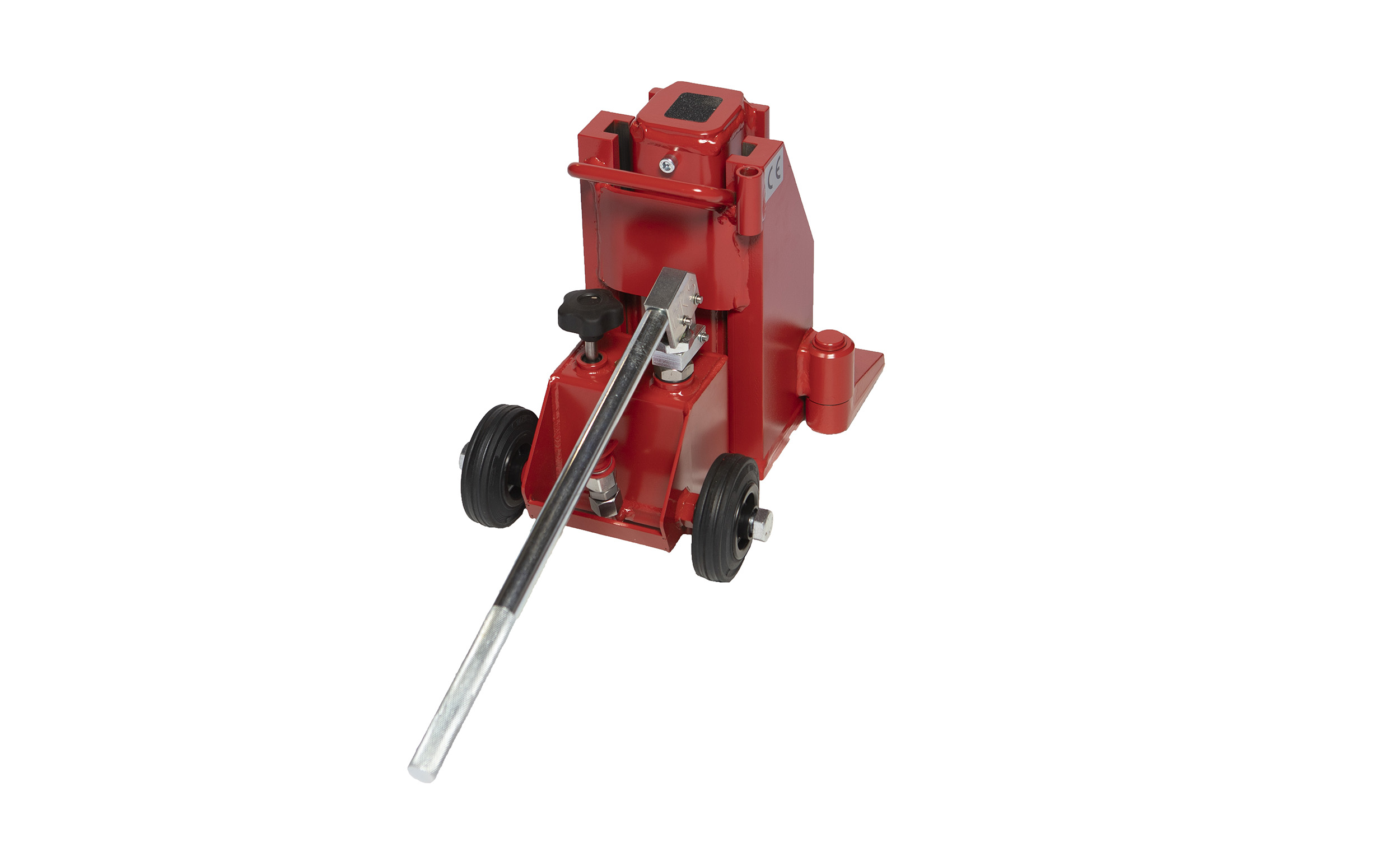

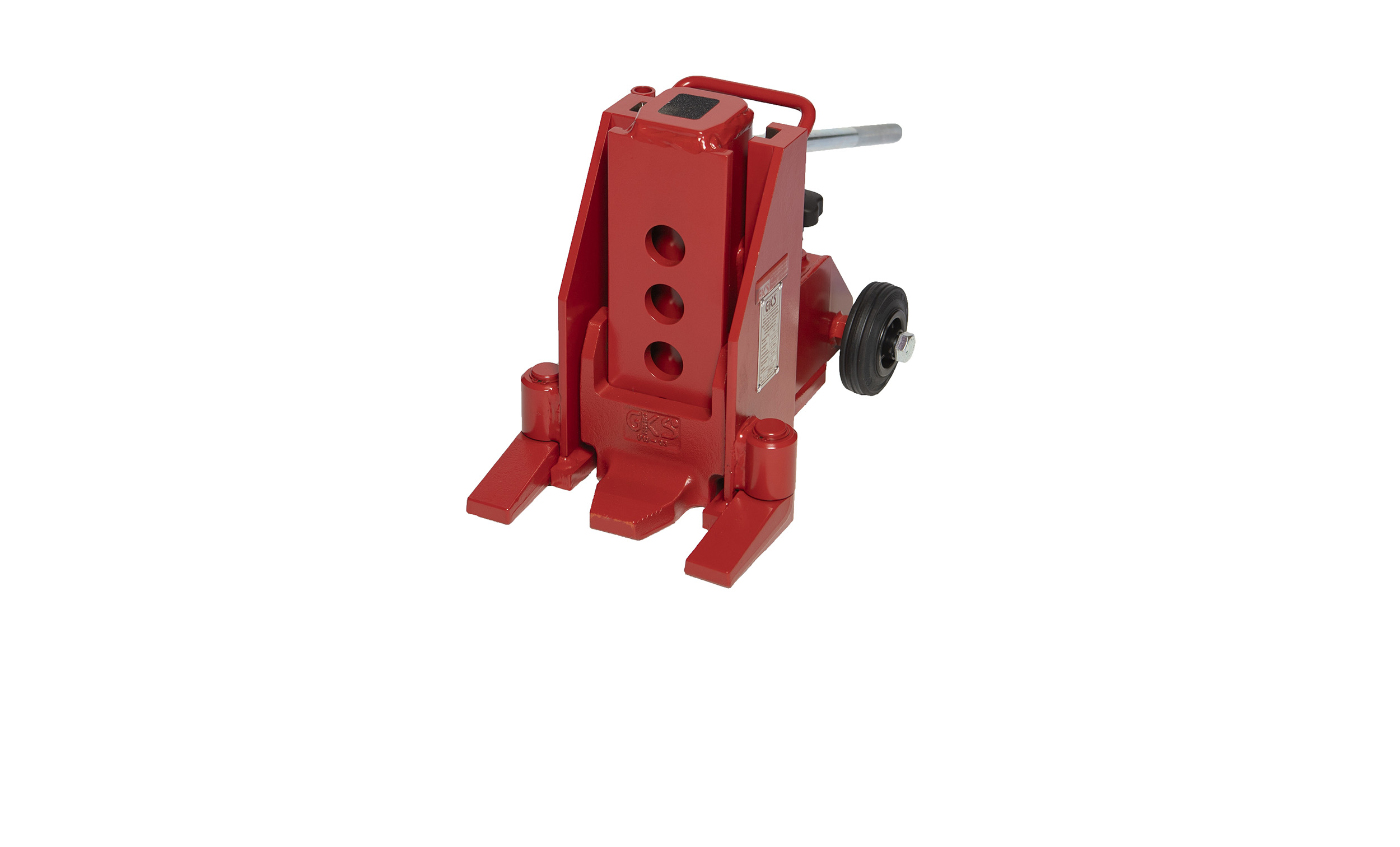

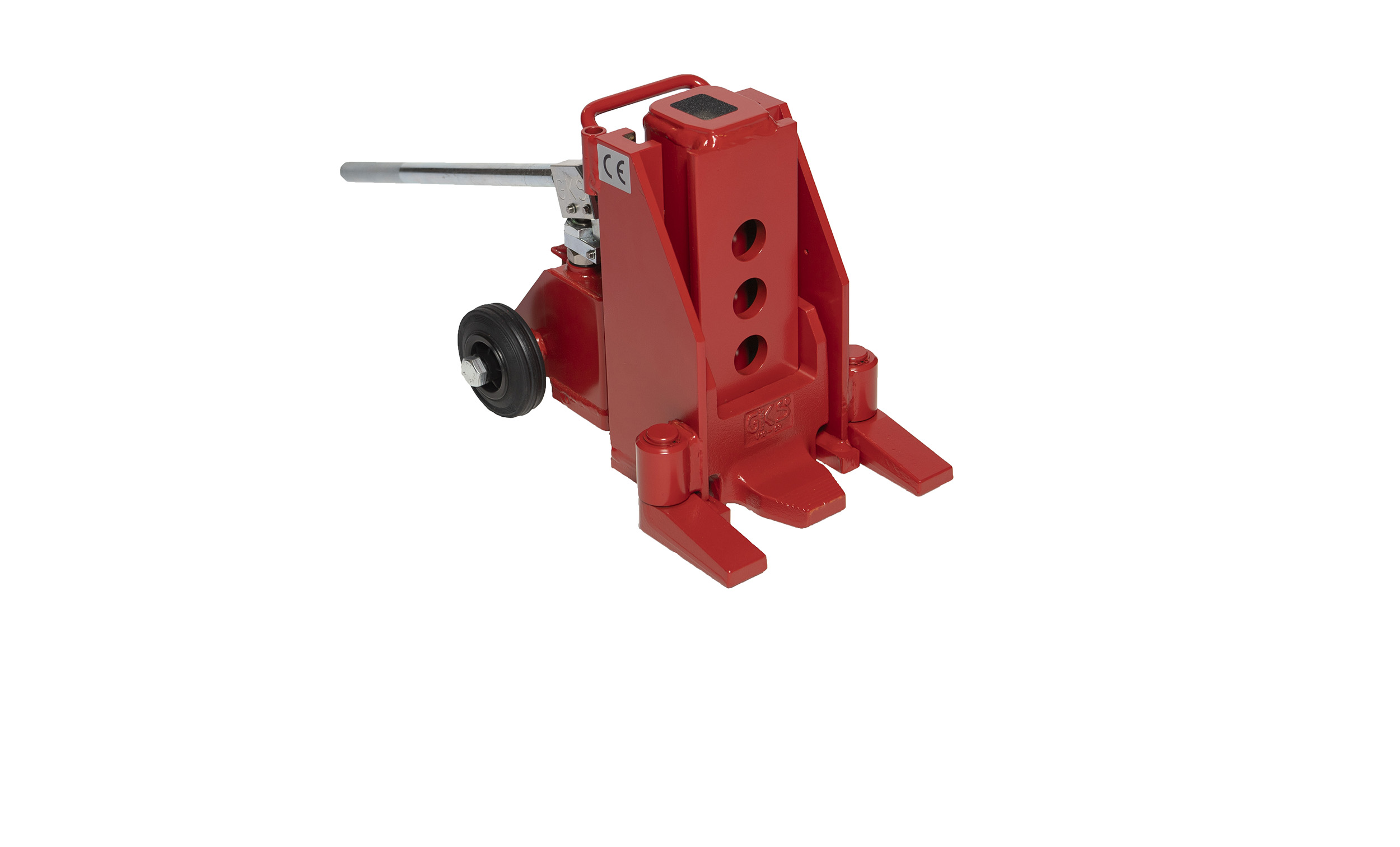

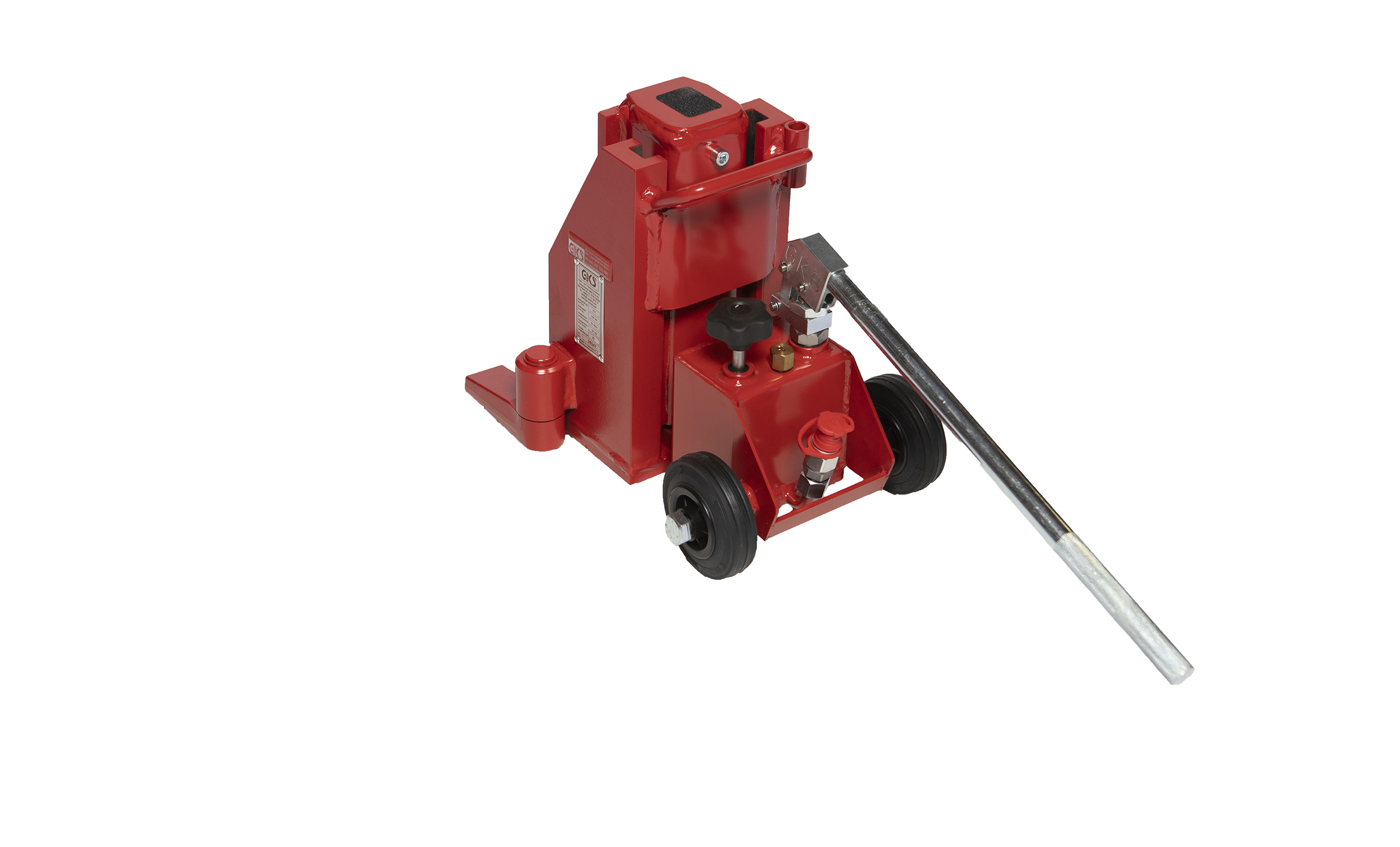

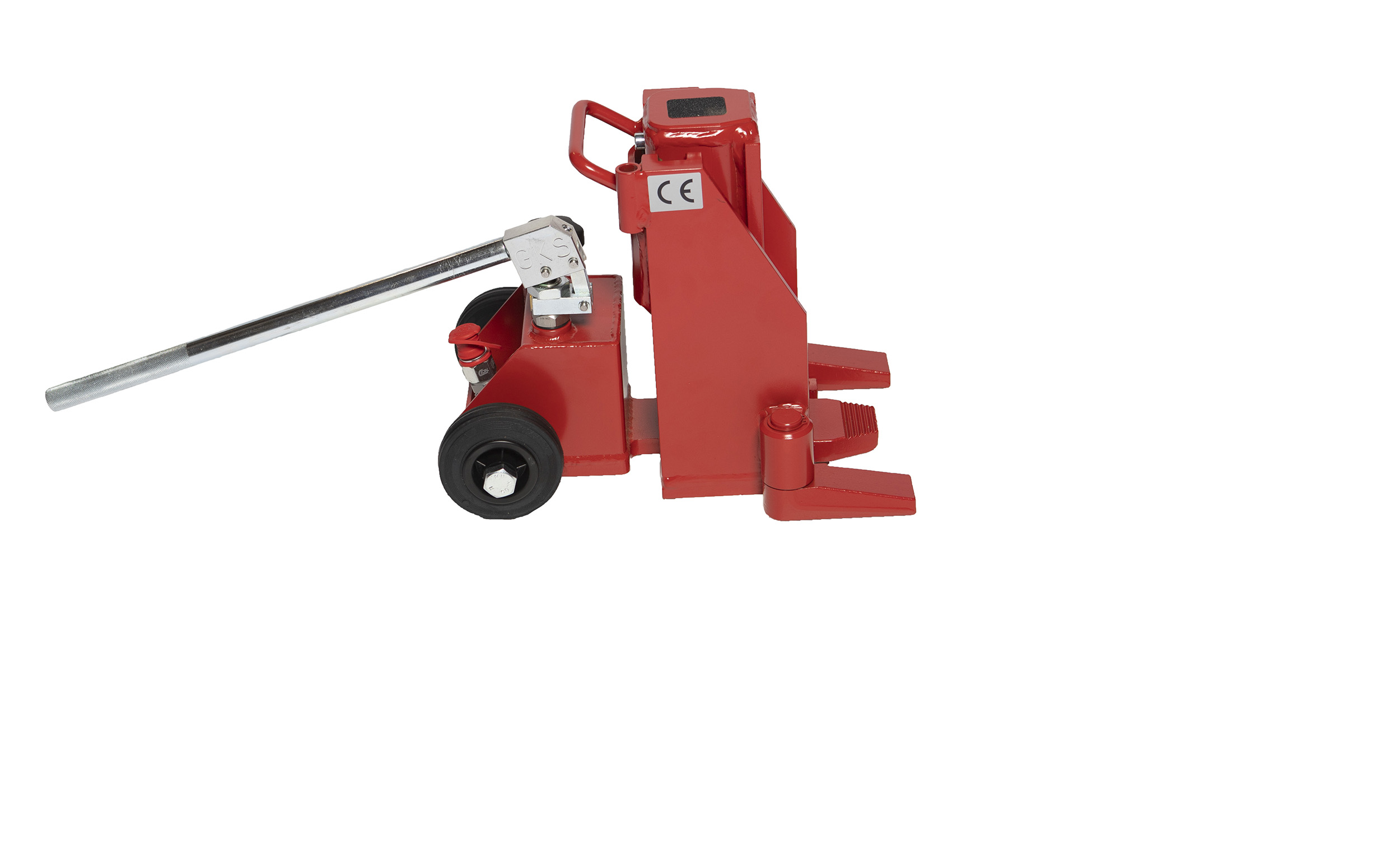

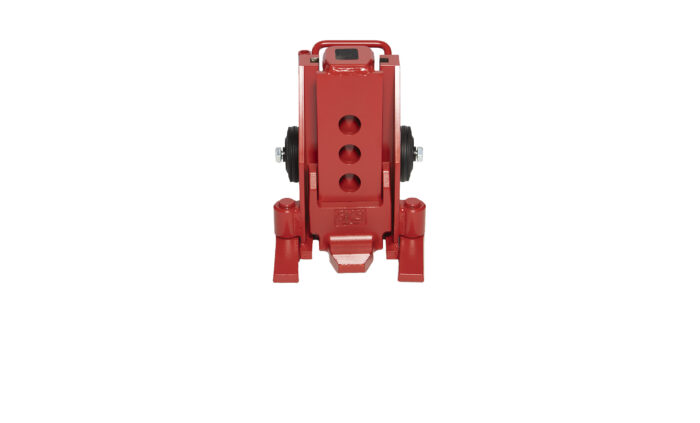

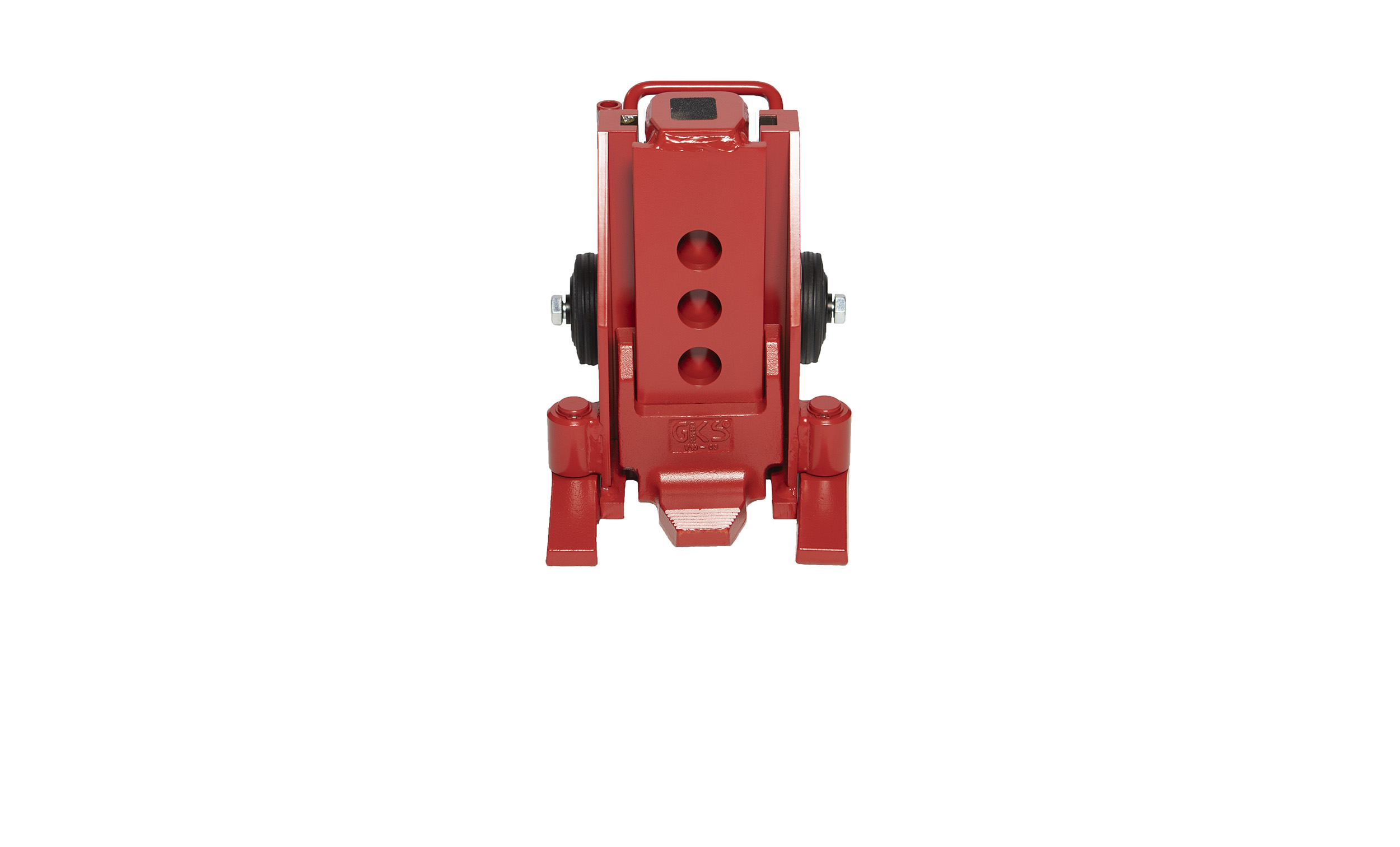

Introducing the V10 Hydraulic Toe Jack, the pinnacle of heavy-duty lifting technology, engineered to meet the rigorous demands of industrial, construction, and logistical applications. This state-of-the-art tool elevates the capabilities of professional lifting with its robust design, superior strength, and unmatched versatility. Designed for those who demand the best in lifting equipment, the V10 sets a new standard in performance and reliability.
Key Features:
- Adjustable Toe for Enhanced Versatility: The V10 distinguishes itself with an adjustable toe feature, allowing operators to tailor the lifting point to a variety of loads and surfaces. This adaptability ensures precise and secure lifting, from delicate machinery to heavy structural components.
- Integrated Pump for Optimum Efficiency: At the heart of the V10 Hydraulic Toe Jack lies an integrated hydraulic pump, providing a seamless and powerful lifting action. The pump is meticulously designed for user-friendly operation, requiring minimal effort to generate maximum lift, thereby optimizing efficiency and reducing labor intensity.
- Exceptional Lifting Capacity: With a formidable lifting capacity, the V10 is engineered to handle loads up to 10 tons, making it a powerhouse for any lifting task. Its high-strength design guarantees performance under the most demanding conditions, offering reliability when it matters most.
- Built to Last: Constructed from premium materials, the V10 Hydraulic Toe Jack is built for durability and longevity. Its robust construction ensures it can withstand the wear and tear of intensive use in harsh environments, providing a dependable lifting solution for years to come.
- Safety-First Design: Safety is paramount with the V10, featuring multiple built-in safety mechanisms to protect both the operator and the load. Its stable base and overload protection valve are among the key features that ensure a safe lifting process, mitigating risks in high-stakes environments.
Applications:
The V10 Hydraulic Toe Jack is the ideal lifting tool for a wide range of industries including construction, manufacturing, mining, transportation, and more. Whether lifting heavy machinery, relocating industrial equipment, or supporting structural modifications, the V10 delivers unmatched efficiency and safety.
Elevate your lifting capabilities with the V10 Hydraulic Toe Jack, where power meets precision. Discover the ultimate solution for your heavy lifting needs, designed for those who require the utmost in performance, versatility, and reliability.
Specifications:
Weight | 71 lbs |
---|---|
Load Capacity | 22,000 lbs. (10 t) 100kN |
Working Pressure | 7,542 psi (520 bar) |
Loading Height: Toe Min | Toe min 0.8″ (20 mm) |
Loading Height: Toe Max | Toe max 6.9″ (175 mm) |
Loading Height | Top Plate 12.2″ (310 mm) |
Lifting height | 6.3″ (160 mm) |
Top Plate LxW | 2.7 x 2.4″ (68 x 60 mm) |
Lift Toe Positions | 4 |
Dimensions LxWxH | 14 x 10.2 x 12.2″ / 357 x 260 x 310 mm |
Weight with oil | 71 lbs. / 32 kg |
