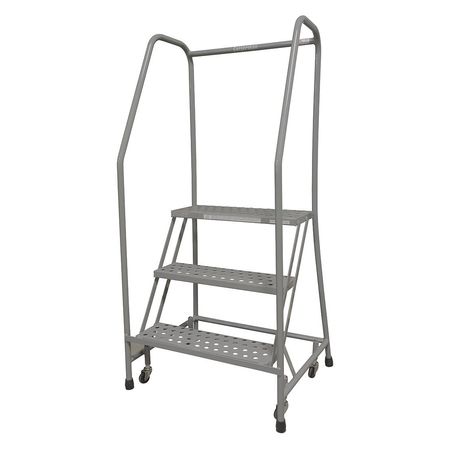

Original catalog photograph. Confirm the selected model and configuration with your quote.
| Load Capacity | 450 lb. |
|---|---|
| Platform Height | 30″ |
| Overall Height | 60″ |
| Number of Steps | 3 |
| Platform Width | 16″ |
| Platform Depth | 10″ |
| Material | Stainless Steel |
| Green Environmental Attribute | Minimum 50% Post-Consumer Recycled Content |
| Bottom Width | 20″ |
| Includes | Ladder Instructions |
| Base Depth | 27″ |
| Item | Rolling Ladder |
| Rear Exit | No |
| Finish | Satin Blasted |
| Ladder Actuation | Spring-Loaded Casters |
| Color | Gray |
| Step Tread | Serrated |
| Step Width | 16″ |
| Handrails Included | Yes |
| Assembled/Unassembled | Assembled |
| Standards | OSHA 1910.29 and ANSI A14.7 |
| Step Depth | 7″ |
| Overall Width | 20″ |
| Climbing Angle | 59 Degrees |
| Handrail Height | 30″ |
| Country of Origin (subject to change) | United States |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Rolling Ladder, Material Stainless Steel, Platform Height 30 In., Handrails Included Yes, Handrail Height 30 In., Overall Height 60 In., Number of Steps 3, Assembled, Load Capacity 450 lb., Step Tread Serrated, Platform Depth 10 In., Platform Width 16 In., Bottom Width 20 In., Base Depth 27 In., Overall Width 20 In., Climbing Angle 59 Degrees , Step Depth 7 In., Step Width 16 In., Ladder Actuation Spring-Loaded Casters, Finish Satin Blasted, Color Gray, Standards OSHA 1910.29 and ANSI A14.7
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Load Capacity: 450 lb.; Platform Height: 30″; Overall Height: 60″. Confirm the complete selected configuration before ordering.
Include the product name and SKU G0382831, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
