| Model / reference | STEPS INCLUDING TOP STEP | HEIGHT INCHES / TOP STEP | HEIGHT INCHES / OVER ALL | BASE W” x L” / OVER ALL | WGT Lbs. / OVER ALL |
|---|---|---|---|---|---|
| WA-AD-SW-052414 | 5 STEP | 50” | 83” | 24 x 50 | 96 |
| WA-AD-SW-062414 | 6 STEP | 60” | 93” | 24 x 60 | 109 |
| WA-AD-SW-072414 | 7 STEP | 70” | 103” | 24 x 68 | 122 |
| WA-AD-SW-082414 | 8 STEP | 80” | 113” | 24 x 76 | 135 |
| WA-AD-SW-053214 | 5 STEP | 50” | 83” | 32 x 50 | 115 |
| WA-AD-SW-063214 | 6 STEP | 60” | 93” | 32 x 60 | 120 |
| WA-AD-SW-073214 | 7 STEP | 70” | 103” | 32 x 68 | 139 |
| WA-AD-SW-083214 | 8 STEP | 80” | 113” | 32 x 76 | 165 |
| WA-AD-SW-093214 | 9 STEP | 90” | 123” | 32 x 85 | 180 |
| WA-AD-SW-103214 | 10 STEP | 100” | 133” | 32 x 92 | 200 |
| WA-AD-SW-113214 | 11 STEP | 110” | 143” | 32 x 101 | 210 |
| WA-AD-SW-123214 | 12 STEP | 120” | 153” | 32 x 110 | 230 |
| Documented model configurations | 12 |
|---|---|
| Catalog feature / option | 450 LB. CAPACITY |
Source: 2026 ladder and access catalog, PDF page 17. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

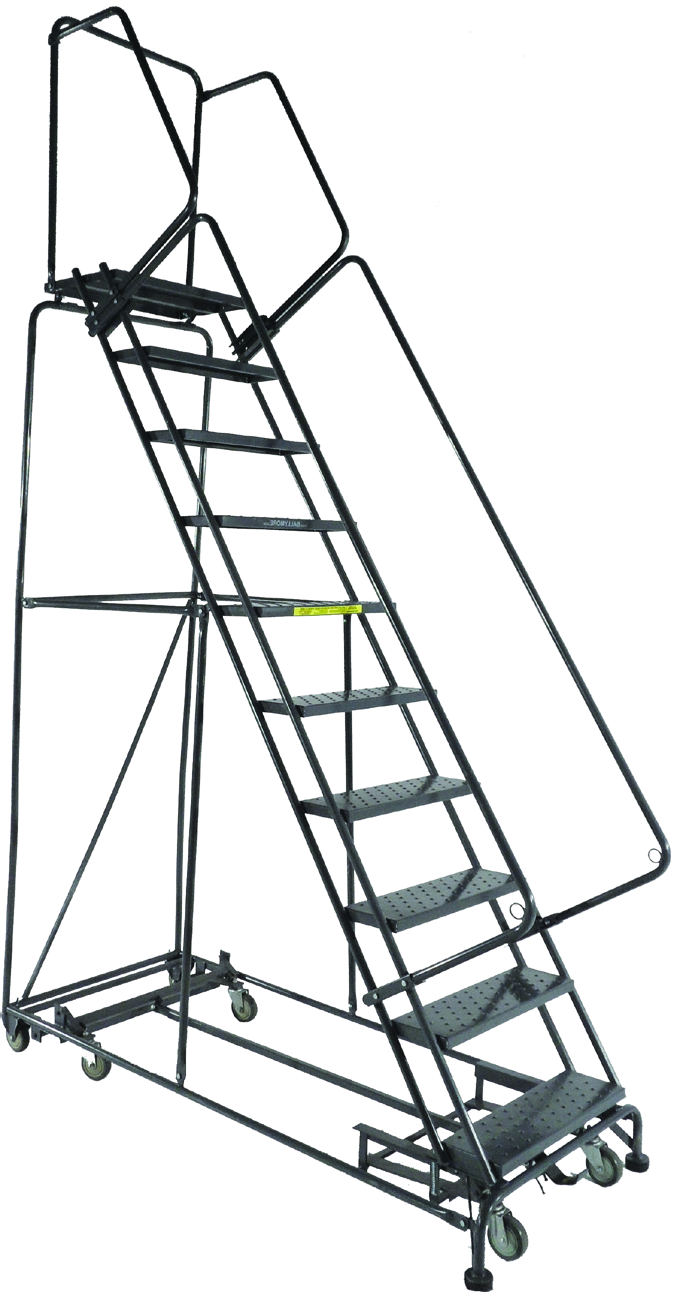

50-Degree All-Direction Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

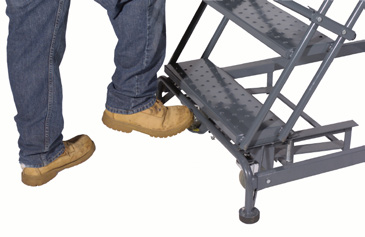

Catalog features and options: Gray powder coat finish; 450 LB. CAPACITY; Patented lockstep - most durable in the industry; Your weight activates the lockstep as you climb, locking ladder to the floor in the climbing position; 50° stairway slope allows easier climbing and descent; Standard 14” deep top step, 21” & 28” top step available; Durable 1” O.D. steel tubing; Available w/Rear Guard rail removed for easy walk through.
Model and option notes: 24” WIDE STEP; WA-AD-144014 14 STEP* 140” 185” 40 x 100 280; WA-AD-154014 15 STEP* 150” 195” 40 x 106 310.
Reference: 2026 ladder and access catalog, PDF page 17. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
