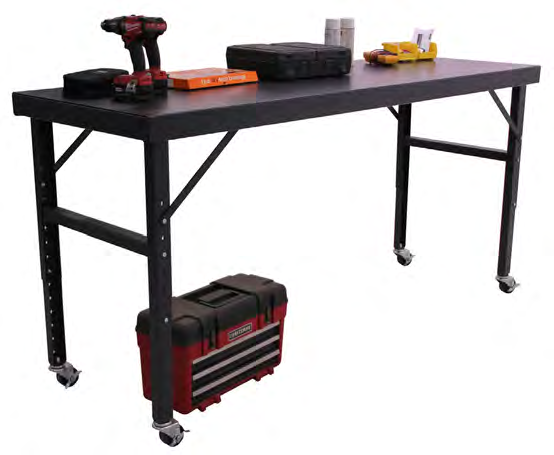

Adjustable-Height Industrial Work Tables — original catalog photograph

Open an image to inspect its original detail.

Adjustable-Height Industrial Work Tables — catalog equipment photograph

Specifications & options

Model / reference	Catalog configuration	Width (in) / Mobile	Depth (in) / Mobile	Steel Gauge / Mobile	Dimensions W x D x H (in) / Mobile	Capacity (lb) / Mobile	Weight (lb) / Mobile	Hardwood Top Option / Standard	Hardwood Top Option / Mobile
F87857A3	Standard	84	28	14	84 x 28 x (26 - 42)	2,000	110	F87866A4	F88021A7
F88030A8	Mobile	84	28	14	84 x 28 x (26 - 42)	2,000	110	F87866A4	F88021A7
F87858A2	Standard	84	34	14	84 x 34 x (26 - 42)	2,000	125	F87867A3	F88020A8
F88029A9	Mobile	84	34	14	84 x 34 x (26 - 42)	2,000	125	F87867A3	F88020A8
F87859A1	Standard	84	48	14	84 x 48 x (26 - 42)	2,000	161	F87868A2	F88019A9
F88028A0	Mobile	84	48	14	84 x 48 x (26 - 42)	2,000	161	F87868A2	F88019A9
F87860A0	Standard	96	28	14	96 x 28 x (26 - 42)	2,000	120	F87869A1	F88018A0
F88027A1	Mobile	96	28	14	96 x 28 x (26 - 42)	2,000	120	F87869A1	F88018A0
F87861A9	Standard	96	34	14	96 x 34 x (26 - 42)	2,000	136	F87870A0	F88017A1
F88026A2	Mobile	96	34	14	96 x 34 x (26 - 42)	2,000	136	F87870A0	F88017A1
F87862A8	Standard	96	48	14	96 x 48 x (26 - 42)	2,000	175	F87871A9	F88016A2
F88025A3	Mobile	96	48	14	96 x 48 x (26 - 42)	2,000	175	F87871A9	F88016A2
F87863A7	Standard	120	28	14	120 x 28 x (26 - 42)	2,000	155	F87872A8	F88015A3
F88024A4	Mobile	120	28	14	120 x 28 x (26 - 42)	2,000	155	F87872A8	F88015A3
F87864A6	Standard	120	34	14	120 x 34 x (26 - 42)	2,000	175	F87873A7	F88014A4
F88023A5	Mobile	120	34	14	120 x 34 x (26 - 42)	2,000	175	F87873A7	F88014A4
F87865A5	Standard	120	48	14	120 x 48 x (26 - 42)	2,000	225	F87874A6	F88013A5
F88022A6	Mobile	120	48	14	120 x 48 x (26 - 42)	2,000	225	F87874A6	F88013A5

Documented model configurations	18
Steel Gauge / Mobile	14
Capacity (lb) / Mobile	2,000
Catalog feature / option	Ergonomic adjustable height steel work tables.
Catalog feature / option	Height adjustable from 26-42”, on 2” increments.

Source: 2025 storage and handling catalog, PDF page 19. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable-Height Industrial Work Tables is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

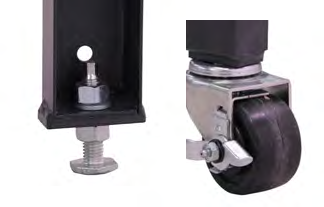

Catalog features and options: Ergonomic adjustable height steel work tables.; Mobile option provided for versatile workstations.; Height adjustable from 26-42”, on 2” increments.; Legs fold down for easy transport or storage.; Quick and easy assembly, hardware pack included.; Steel tops includes fully welded channels underneath with 2 support braces.; Premium leveling feet included on standard models.; Mobile work tables maneuver on (4) 3" polyolefin locking swivel casters.; Optional hard wood top available for all models.; Optional lower stringer shelf available for 120” length models only (sold separately).; Heavy duty 14 gauge steel construction.; Premium powder coat paint finish..

Model and option notes: • Optional lower stringer shelf available for 120” length models only (sold separately)..

Documentation & drawings

Reference: 2025 storage and handling catalog, PDF page 19. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Industrial Benches, Tables & Seating

Adjustable-Height Industrial Work Tables

Manufacturer: Valley Craft

Adjustable-Height Industrial Work Tables. Documented model configurations: 18. Steel Gauge / Mobile: 14. Capacity (lb) / Mobile: 2,000.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Documented model configurations: 18
Steel Gauge / Mobile: 14
Capacity (lb) / Mobile: 2,000
Catalog feature / option: Ergonomic adjustable height steel work tables.
Catalog feature / option: Height adjustable from 26-42”, on 2” increments.
