| MODEL NUMBER | PLATFORM SIZE (W x L) | UNIFORM CAPACITY | LOWERED HEIGHT | FIRST SETTING | SECOND SETTING | THIRD SETTING | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|

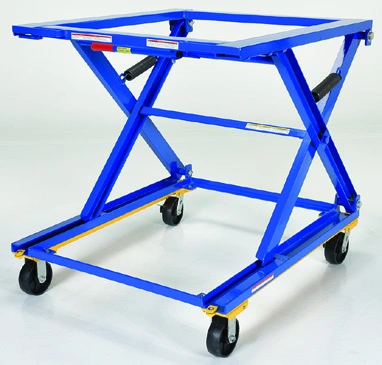

| PS-4045 | 40" x 42¼" | 5,000 lb. | 10" | 20 1/4" | 30 1/2" | 35 1/4" | 253 |
| PS-4045/CA | 40" x 42¼" | 4,000 lb. | 12 1/4" | 22 1/4" | 32 3/4" | 37 1/4" | 312 |
| PS-4045/CA-CK | 40" x 42¼" | 1,500 lb. | 19 1/16" | 29 1/16" | 39 5/16" | 45 1/16" | 333 |
| PS-4045-CK | 40" x 42¼" | 1,500 lb. | 17 1/2" | 27 1/16" | 37 5/16" | 43 1/16" | 271 |

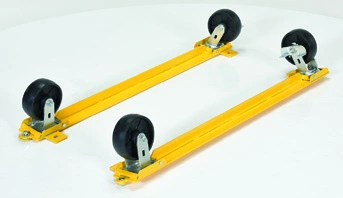

| PS-RF-CK | Casters to retro onto existing pallet stands | 57 |
| Platform Size (W X L) | 40" x 42¼" |
|---|---|
| Uniform Capacity | 5,000 lb.; 4,000 lb.; 1,500 lb. |
| Lowered Height | 10"; 12 1/4"; 19 1/16"; 17 1/2"; Casters to retro onto existing pallet stands |
| First Setting | 20 1/4"; 22 1/4"; 29 1/16"; 27 1/16" |
| Second Setting | 30 1/2"; 32 3/4"; 39 5/16"; 37 5/16" |
| Third Setting | 35 1/4"; 37 1/4"; 45 1/16"; 43 1/16" |
Source: 2018 catalog, page 125. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists PS-4045 through PS-RF-CK within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 40" x 42¼"; Uniform Capacity: 5,000 lb.; 4,000 lb.; 1,500 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 125. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 5 model references for this family. The first listed model is PS-4045. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
