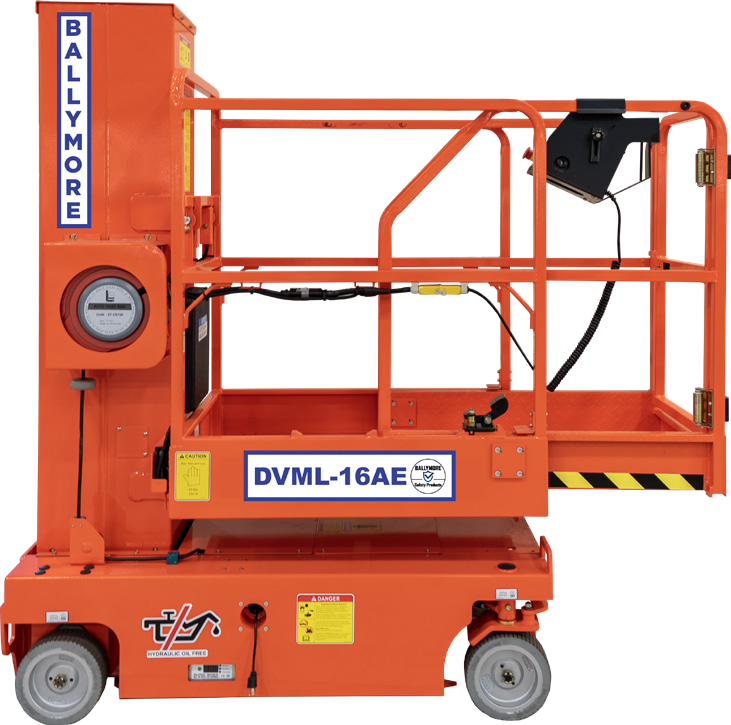

All-Electric Drivable Vertical Mast Lift — DVML-16AE — catalog equipment photograph

Open an image to inspect its original detail.

All-Electric Drivable Vertical Mast Lift — DVML-16AE — catalog equipment photograph

Specifications & options

Model / referenceWORKING HEIGHTPLATFORM HEIGHTW” X L”PLATFORM HEIGHT (OUTER DIMENSION)PLATFORM EXTENSIONWEIGHT Lbs.
DVML-16AE22’15’ 5”30” X 58”30” X 39”20”2,182
WORKING HEIGHT22’
PLATFORM HEIGHT15’ 5”
W” X L”30” X 58”
PLATFORM HEIGHT (OUTER DIMENSION)30” X 39”
PLATFORM EXTENSION20”
WEIGHT Lbs.2,182
Catalog feature / option500 lbs. capacity
Catalog feature / optionCantilever extended platform
Catalog feature / optionDrivable at full height
Catalog feature / option12 Volt DC Power (raise and lower)

Source: 2026 personnel lift catalog, PDF page 8. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

All-Electric Drivable Vertical Mast Lift — DVML-16AE is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Light weight and compact; 500 lbs. capacity; Cantilever extended platform; All-Electric, No Hydraulic Oil; Easy operating controls; Drivable at full height; Maximizes productivity; Manual lowering valve; Emergency stop button; Automatic pothole protection; Tilt and motion alarm; 12 Volt DC Power (raise and lower); Designed for indoor use; MANUALLY PROPELLED LIFT.

Model and option notes: DVML-16AE* 22’ 15’ 5” 30” X 58” 30” X 39” 20” 2,182; * Indoor Use Only.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF page 8. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
