| Model / reference | Catalog configuration | Weight (column 1) | Weight (column 2) | Weight (column 3) | # of Steps | Step Width | Overall Height | Platform W x L | Base W x D |
|---|---|---|---|---|---|---|---|---|---|
| WLAR108244 | Ribbed | 89 | 76 | 76 | 8 | 24 | 112” | 24” x 14” | 34 x 72 |
| WLAR108245 | Serrated | 89 | 76 | 76 | 8 | 24 | 112” | 24” x 14” | 34 x 72 |
| WLAR108246 | Perforated | 89 | 76 | 76 | 8 | 24 | 112” | 24” x 14” | 34 x 72 |
| WLAR109244 | Ribbed | 95 | 81 | 81 | 9 | 24 | 126” | 24” x 14” | 36 x 73 |
| WLAR109245 | Serrated | 95 | 81 | 81 | 9 | 24 | 126” | 24” x 14” | 36 x 73 |
| WLAR109246 | Perforated | 95 | 81 | 81 | 9 | 24 | 126” | 24” x 14” | 36 x 73 |
| WLAR110244 | Ribbed | 103 | 90 | 90 | 10 | 24 | 136” | 24” x 14” | 36 x 81 |
| WLAR110245 | Serrated | 103 | 90 | 90 | 10 | 24 | 136” | 24” x 14” | 36 x 81 |
| WLAR110246 | Perforated | 103 | 90 | 90 | 10 | 24 | 136” | 24” x 14” | 36 x 81 |
| WLAR111244 | Ribbed | 106 | 98 | 98 | 11 | 24 | 146” | 24” x 14” | 38 x 87 |
| WLAR111245 | Serrated | 106 | 98 | 98 | 11 | 24 | 146” | 24” x 14” | 38 x 87 |
| WLAR111246 | Perforated | 106 | 98 | 98 | 11 | 24 | 146” | 24” x 14” | 38 x 87 |
| WLAR112244 | Ribbed | 110 | 110 | 110 | 12 | 24 | 156” | 24” x 14” | 39 x 93 |
| WLAR112245 | Serrated | 110 | 110 | 110 | 12 | 24 | 156” | 24” x 14” | 39 x 93 |
| WLAR112246 | Perforated | 110 | 110 | 110 | 12 | 24 | 156” | 24” x 14” | 39 x 93 |
| Documented model configurations | 15 |
|---|---|
| Step Width | 24 |
| Platform W x L | 24” x 14” |
| Catalog feature / option | 450 lb. Rated Capacity |
| Catalog feature / option | 7” deep treads (56° models) |
| Catalog feature / option | 10” deep platform (56° models) |
Source: 2026 ladder and access catalog, PDF page 40. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Aluminum Lockstep Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

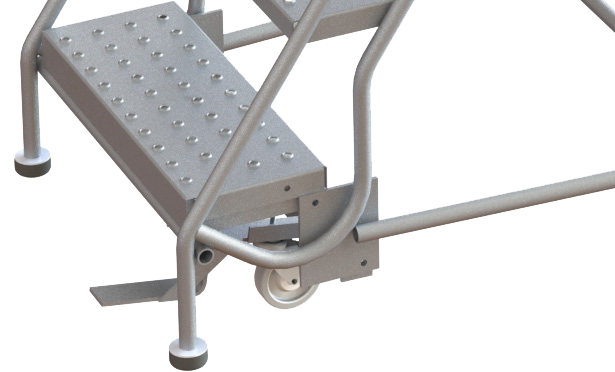

Catalog features and options: 450 lb. Rated Capacity; 24” wide steps; 7” deep treads (56° models); 10” deep platform (56° models); 14” standard deep top step; Also available with a 21” or 28” deep top step; Lockstep standard on all models; Aluminum mill finish; Ships fully assembled.
Reference: 2026 ladder and access catalog, PDF page 40. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
