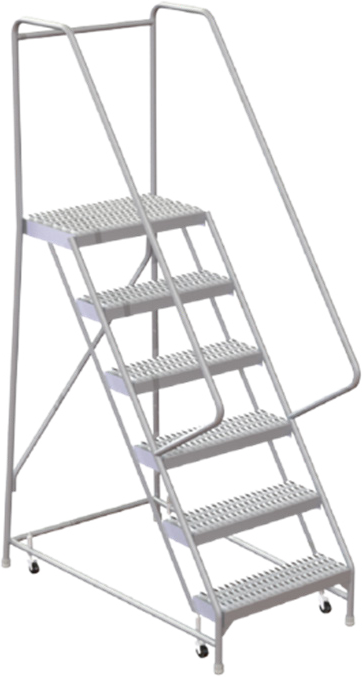

Aluminum Rolling Access Ladders — catalog equipment photograph

Open an image to inspect its original detail.

Aluminum Rolling Access Ladders — catalog equipment photographAluminum Rolling Access Ladders — catalog equipment photograph

Specifications & options

Model / referenceCatalog configuration# of StepsOverall HeightPlatform W x LBase W x DWeight / 14" Deep Top StepWeight / 21" Deep Top StepWeight / 28” Deep Top Step
WLAR10216514" Deep Top Step25216" x 14"20" x 23"272427
WLAR102165-D421" Deep Top Step25216" x 14"20" x 23"272427
WLAR102165-D528” Deep Top Step25216" x 14"20" x 23"272427
WLAR10316514" Deep Top Step36216" x 14"22" x 31"333033
WLAR103165-D421" Deep Top Step36216" x 14"22" x 31"333033
WLAR103165-D528” Deep Top Step36216" x 14"22" x 31"333033
WLAR10416514" Deep Top Step47216" x 14"22" x 37"393639
WLAR104165-D421" Deep Top Step47216" x 14"22" x 37"393639
WLAR104165-D528” Deep Top Step47216" x 14"22" x 37"393639
WLAR10516514" Deep Top Step58216" x 14"22" x 44"434548
WLAR105165-D421" Deep Top Step58216" x 14"22" x 44"434548
WLAR105165-D528” Deep Top Step58216" x 14"22" x 44"434548
WLAR10616514" Deep Top Step69216" x 14"26" x 51"505250
WLAR106165-D421" Deep Top Step69216" x 14"26" x 51"505250
WLAR106165-D528” Deep Top Step69216" x 14"26" x 51"505250
WLAR10716514" Deep Top Step710216" x 14"26" x 57"565856
WLAR107165-D421" Deep Top Step710216" x 14"26" x 57"565856
WLAR107165-D528” Deep Top Step710216" x 14"26" x 57"565856
WLAR10224514" Deep Top Step25224" x 14"29" x 23"322832
WLAR102245-D421" Deep Top Step25224" x 14"29" x 23"322832
WLAR102245-D528” Deep Top Step25224" x 14"29" x 23"322832
WLAR10324514" Deep Top Step36224" x 14"29" x 31"353135
WLAR103245-D421" Deep Top Step36224" x 14"29" x 31"353135
WLAR103245-D528” Deep Top Step36224" x 14"29" x 31"353135
WLAR10424514" Deep Top Step47224" x 14"32" x 37"454145
WLAR104245-D421" Deep Top Step47224" x 14"32" x 37"454145
WLAR104245-D528” Deep Top Step47224" x 14"32" x 37"454145
WLAR10524514" Deep Top Step58224" x 14"32" x 44"505150
WLAR105245-D421" Deep Top Step58224" x 14"32" x 44"505150
WLAR105245-D528” Deep Top Step58224" x 14"32" x 44"505150
WLAR10624514" Deep Top Step69224" x 14"24" x 14"575857
WLAR106245-D421" Deep Top Step69224" x 14"24" x 14"575857
WLAR106245-D528” Deep Top Step69224" x 14"24" x 14"575857
WLAR10724514" Deep Top Step710224" x 14"32" x 57"646564
WLAR107245-D421" Deep Top Step710224" x 14"32" x 57"646564
WLAR107245-D528” Deep Top Step710224" x 14"32" x 57"646564
WLAR108245-D421" Deep Top Step811224" x 14"36" x 66"808180
WLAR108245-D528” Deep Top Step811224" x 14"36" x 66"808180
WLAR109245-D421" Deep Top Step912224" x 14"36" x 72"878587
WLAR109245-D528” Deep Top Step912224" x 14"36" x 72"878587
WLAR110245-D421" Deep Top Step1013224" x 14"36" x 79"939493
WLAR110245-D528” Deep Top Step1013224" x 14"36" x 79"939493
WLAR111245-D421" Deep Top Step1114224" x 14"38" x 86"100101100
WLAR111245-D528” Deep Top Step1114224" x 14"38" x 86"100101100
Documented model configurations44
Catalog feature / option350 Lb. Capacity
Catalog feature / optionSolid Ribbed, Perforated or Grip Strut tread
Catalog feature / optionSpring-loaded caters 2-7 step models

Source: 2026 ladder and access catalog, PDF page 39. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Aluminum Rolling Access Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 350 Lb. Capacity; Solid Ribbed, Perforated or Grip Strut tread; 3/4” Sch. 40, 1-1/16” O.D. pipe; Standard mill finish; Spring-loaded caters 2-7 step models; Step lock 8-12 models.

Model and option notes: 24” Step Width; 2 52 16" x 14" 20" x 23" WLAR102165 27 WLAR102165-D4 24 WLAR102165-D5* 27 3 62 16" x 14" 22" x 31" WLAR103165 33 WLAR103165-D4 30 WLAR103165-D5* 33 4 72 16" x 14" 22" x 37" WLAR104165 39 WLAR104165-D4 36 WLAR104165-D5* 39 5 82 16" x 14" 22" x 44" WLAR105165 43 WLAR105165-D4 45 WLAR105165-D5 48 6 92 16" x 14" 26" x 51" WLAR106165 50 WLAR106165-D4 52 WLAR106165-D5 50 7 102 16" x 14" 26" x 57" WLAR107165 56 WLAR107165-D4 58 WLAR107165-D5 56.

Documentation & drawings

Reference: 2026 ladder and access catalog, PDF page 39. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
