| MODEL NUMBER | PLATFORM SIZE (W x L) | CAPACITY x READABILITY | OVERALL SIZE (W x L x H) | WEIGHT (POUND) |
|---|---|---|---|---|
| BS-915-1212-100 | 12" x 12" | 100 lb. x 0.2 lb | 12" x 16" x 17" | 25 |
| BS-915-1214-150 | 12" x 14" | 150 lb. x 0.2 lb | 14" x 18" x 17" | 26 |
| BS-915-1616-300 | 16" x 16" | 300 lb. x 0.5 lb | 16" x 20" x 26" | 34 |
| BS-915-1620-400 | 16" x 20" | 400 lb. x 0.5 lb | 16" x 24" x 26" | 40 |
| BS-915-1818-400 | 18" x 18" | 400 lb. x 0.5 lb | 18" x 22" x 26" | 42 |
| BS-915-1824-500 | 18" x 24" | 500 lb. x 0.1 lb | 18" x 28" x 33" | 66 |
| BS-915-2020-500 | 20" x 20" | 500 lb. x 0.1 lb | 20" x 24" x 33" | 64 |
| BS-915-2424-500 | 24" x 24" | 500 lb. x 0.1 lb | 24" x 28" x 33" | 72 |
| BS-915-2424-1000 | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 72 |

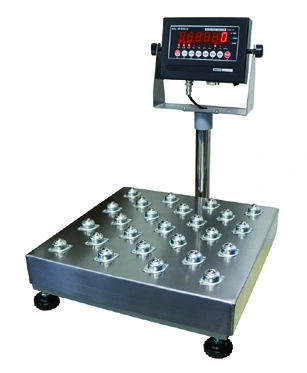

| BS-915BT-2424-1000* | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 74 |

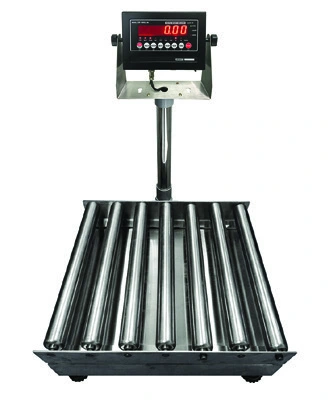

| BS-915RT-2424-1000** | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 76 |
| MODEL NUMBER | PLATFORM SIZE (W x L) | CAPACITY x READABILITY | OVERALL SIZE (W x L x H) | WEIGHT (POUND) |
|---|---|---|---|---|
| BS-915-1212-100 | 12" x 12" | 100 lb. x 0.2 lb | 12" x 16" x 17" | 25 |
| BS-915-1214-150 | 12" x 14" | 150 lb. x 0.2 lb | 14" x 18" x 17" | 26 |
| BS-915-1616-300 | 16" x 16" | 300 lb. x 0.5 lb | 16" x 20" x 26" | 34 |
| BS-915-1620-400 | 16" x 20" | 400 lb. x 0.5 lb | 16" x 24" x 26" | 40 |
| BS-915-1818-400 | 18" x 18" | 400 lb. x 0.5 lb | 18" x 22" x 26" | 42 |
| BS-915-1824-500 | 18" x 24" | 500 lb. x 0.1 lb | 18" x 28" x 33" | 66 |
| BS-915-2020-500 | 20" x 20" | 500 lb. x 0.1 lb | 20" x 24" x 33" | 64 |
| BS-915-2424-500 | 24" x 24" | 500 lb. x 0.1 lb | 24" x 28" x 33" | 72 |
| BS-915-2424-1000 | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 72 |
| BS-915BT-2424-1000* | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 74 |
| BS-915RT-2424-1000** | 24" x 24" | 1000 lb. x 0.2 lb | 24" x 28" x 33" | 76 |
| Platform Size (W X L) | 12" x 12"; 12" x 14"; 16" x 16"; 16" x 20"; 18" x 18"; 18" x 24"; 20" x 20"; 24" x 24" |
|---|---|
| Capacity X Readability | 100 lb. x 0.2 lb; 150 lb. x 0.2 lb; 300 lb. x 0.5 lb; 400 lb. x 0.5 lb; 500 lb. x 0.1 lb; 1000 lb. x 0.2 lb |
| Overall Size (W X L X H) | 12" x 16" x 17"; 14" x 18" x 17"; 16" x 20" x 26"; 16" x 24" x 26"; 18" x 22" x 26"; 18" x 28" x 33"; 20" x 24" x 33"; 24" x 28" x 33" |
Source: 2018 catalog, pages 161, 411. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists BS-915-1212-100 through BS-915RT-2424-1000 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 12" x 12"; 12" x 14"; 16" x 16"; 16" x 20"; 18" x 18"; 18" x 24"; 20" x 20"; 24" x 24"; Capacity X Readability: 100 lb. x 0.2 lb; 150 lb. x 0.2 lb; 300 lb. x 0.5 lb; 400 lb. x 0.5 lb; 500 lb. x 0.1 lb; 1000 lb. x 0.2 lb. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, pages 161, 411. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 11 model references for this family. The first listed model is BS-915-1212-100. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
