Specifications & options
| MODEL NUMBER | STRAP WIDTH | WORKING LENGTH | UNIFORM WORKING LOAD | TIGHTENING MECHANISM | FASTENER | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| STRAP-12-RE | 2" | 12' | 1,000 lb. | RATCHETING | E-CLIP | 2 |

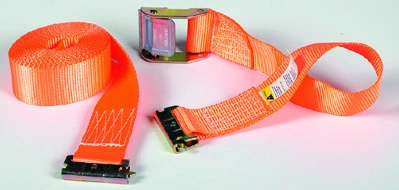

| STRAP-16-CE | 2" | 16' | 1,200 lb. | CAM | E-CLIP | 4 |

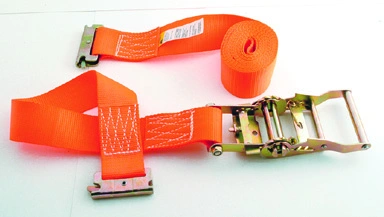

| STRAP-16-RE | 2" | 16' | 1,200 lb. | RATCHETING | E-CLIP | 3 |

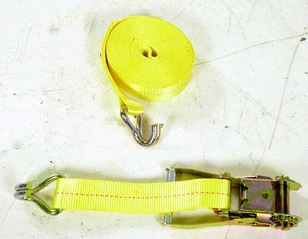

| STRAP-27-RH | 2" | 27' | 3,325 lb. | RATCHETING | ROD HOOK | 6 |

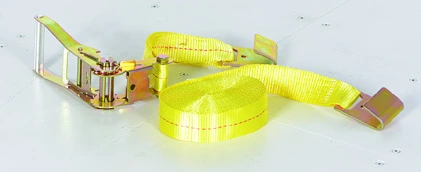

| STRAP-27-FH | 2" | 27' | 3,325 lb. | RATCHETING | FLAT HOOK | 6 |
| STRAP-6-RTO | 2" | 6" | 800 lb. | D-RING/STRAP | E-CLIP | 2 |
| E-CLIP-W | BEAM E-SOCKET SUPPORTS THE END OF WOOD 2 x 4 | 2 | ||||
| E-CLIP-D | TIE OFF THE "D" RING WHEN ATTACHED TO THE E-TRACK | 2 | ||||
| EDGE-R12 | RUBBER EDGE GUARDS, 5¾"W x 12"L, | 50 PIECES PER PACKAGE | 37 | |||
| EDGE-R6 | RUBBER EDGE GUARDS, 5"W x 6"L, | 100 PIECES PER PACKAGE | 31 | |||
| EDGE-S7 | STEEL EDGE GUARDS, 7½"W x 4 | 7/8"L, | 10 PIECES PER PACKAGE | 15 | ||
| TARP-C | RECYCLE MOLDED PLASTIC, 6 | 7/8 | "W x 5½"L, 16 PIECES PER PKG. | 3 |
| Strap Width | 2" |
|---|---|
| Working Length | 12'; 16'; 27'; 6"; RUBBER EDGE GUARDS, 5¾"W x 12"L,; RUBBER EDGE GUARDS, 5"W x 6"L,; STEEL EDGE GUARDS, 7½"W x 4; RECYCLE MOLDED PLASTIC, 6 |
| Uniform Working Load | 1,000 lb.; 1,200 lb.; 3,325 lb.; 800 lb.; BEAM E-SOCKET SUPPORTS THE END OF WOOD 2 x 4; TIE OFF THE "D" RING WHEN ATTACHED TO THE E-TRACK; 7/8"L,; 7/8 |
| Tightening Mechanism | RATCHETING; CAM; D-RING/STRAP; 50 PIECES PER PACKAGE; 100 PIECES PER PACKAGE; 10 PIECES PER PACKAGE; "W x 5½"L, 16 PIECES PER PKG. |
| Fastener | E-CLIP; ROD HOOK; FLAT HOOK |
Source: 2018 catalog, page 38. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists STRAP-12-RE through TARP-C within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Strap Width: 2"; Working Length: 12'; 16'; 27'; 6"; RUBBER EDGE GUARDS, 5¾"W x 12"L,; RUBBER EDGE GUARDS, 5"W x 6"L,; STEEL EDGE GUARDS, 7½"W x 4; RECYCLE MOLDED PLASTIC, 6. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 38. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for cargo strapping & guards?
The catalog records 12 model references for this family. The first listed model is STRAP-12-RE. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right cargo strapping & guards configuration?
Select a layout around the area or vehicle being managed. Confirm installation details, clearances and the listed model dimensions for the actual site.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
