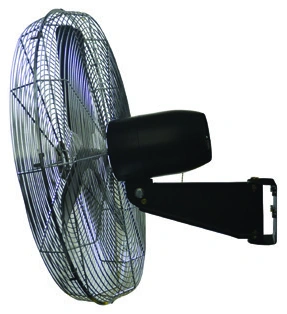

Commercial Circulator Fans catalog equipment view

Open an image to inspect its original detail.

Commercial Circulator Fans catalog equipment view

Specifications & options

MODEL NUMBERBLADE DIAMETERMOUNTING STYLEAMPS HIGHCFM HIGHCFM LOWWEIGHT (POUND)
CCRF-24-P25"PEDESTAL2.35400430063
CCRF-24-W25"WALL2.35400430043
CCRF-30-P30"PEDESTAL2.46000480066
CCRF-30-W30"WALL2.46000480046
Blade Diameter25"; 30"
Mounting StylePEDESTAL; WALL
Amps High2.3; 2.4
Cfm High5400; 6000
Cfm Low4300; 4800

Source: 2018 catalog, page 59. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists CCRF-24-P through CCRF-30-W within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Blade Diameter: 25"; 30"; Mounting Style: PEDESTAL; WALL. These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 59. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for commercial circulator fans?

The catalog records 4 model references for this family. The first listed model is CCRF-24-P. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right commercial circulator fans configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
