Open an image to inspect its original detail.
| MODEL NUMBER | PLATFORM SIZE (W x L) | SERVICE RANGE | UNIFORM CAPACITY | OPERATION | WEIGHT (POUND) |
|---|---|---|---|---|---|
| HYD-3 | 23" x 24" | 3½" to 35" | 880 lb. | FOOT PUMP | 190 |
| HYD-5 | 23" x 24" | 4" to 44" | 880 lb. | FOOT PUMP | 246 |
| HYD-10 | 23" x 24" | 4" to 59" | 880 lb. | FOOT PUMP | 280 |
| HYD-15 | 23" x 31½" | 4" to 63" | 1,500 lb. | FOOT PUMP | 479 |
| HYD-5-EP | 23" x 40" | 3½" to 44" | 400 lb. | FOOT PUMP | 293 |
| HYD-10-EP | 23" x 40" | 3½" to 59" | 300 lb. | FOOT PUMP | 308 |
| HYD-5-AS | 23" x 24" | 4" to 44" | 880 lb. | TWO-SPEED FP | 251 |
| HYD-10-AS | 23" x 24" | 4" to 59" | 880 lb. | TWO-SPEED FP | 286 |

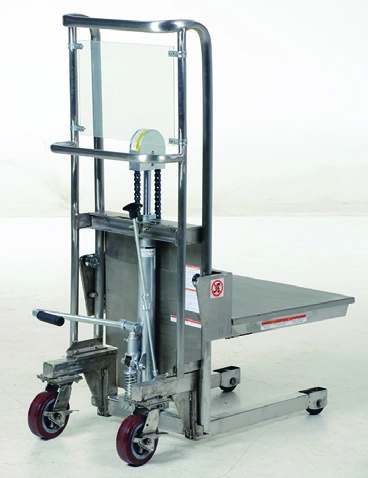

| HYD-5-PSS | 21" x 24" | 3½" to 45 5/8" | 450 lb. | FOOT PUMP | 236 |

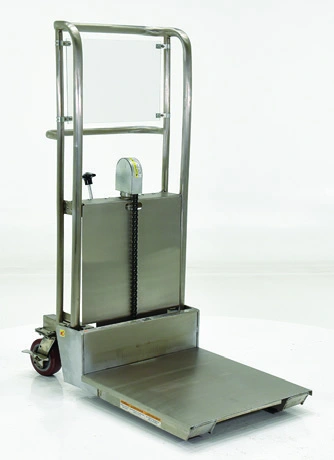

| HYD-5-SS | 23 7/8" x 21¼" | 3½" to 45 5/8" | 450 lb. | FOOT PUMP | 230 |

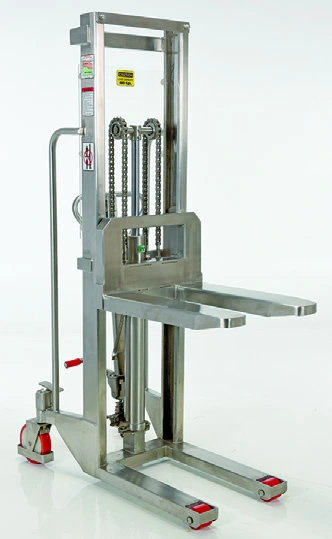

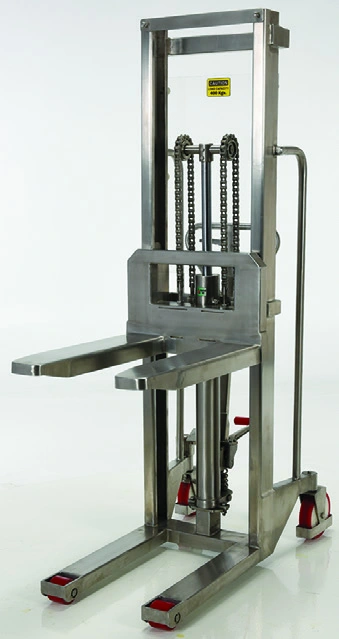

| HYD-10-DA-SS* | N/A | 3 1/8" x 59" | 800 lb. | HAND PUMP | 270 |
| HYD-5-AIR | 23" x 24" | 3½" to 44" | 880 lb. | AIR | 261 |
| HYD-10-AIR | 23" x 24" | 3½" to 59" | 880 lb. | AIR | 295 |
| MODEL NUMBER | PLATFORM SIZE (W x L) | SERVICE RANGE | UNIFORM CAPACITY | OPERATION | WEIGHT (POUND) |
|---|---|---|---|---|---|
| HYD-5-PSS | 21" x 24" | 6¼" to 45 5/8" | 450 lb. | FOOT PUMP | 236 |
| HYD-5-SS | 23 7/8" x 21¼" | 6¼" to 45 5/8" | 450 lb. | FOOT PUMP | 230 |
| HYD-10-DA-SS* | N/A | 3 1/8" x 59" | 800 lb. | HAND PUMP | 270 |
| Platform Size (W X L) | 23" x 24"; 23" x 31½"; 23" x 40"; 21" x 24"; 23 7/8" x 21¼"; N/A |
|---|---|
| Service Range | 3½" to 35"; 4" to 44"; 4" to 59"; 4" to 63"; 3½" to 44"; 3½" to 59"; 6¼" to 45 5/8"; 3 1/8" x 59" |
| Uniform Capacity | 880 lb.; 1,500 lb.; 400 lb.; 300 lb.; 450 lb.; 800 lb. |
| Operation | FOOT PUMP; TWO-SPEED FP; HAND PUMP; AIR |
Source: 2018 catalog, pages 120, 404. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The catalog lists HYD-3 through HYD-10-AIR within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 23" x 24"; 23" x 31½"; 23" x 40"; 21" x 24"; 23 7/8" x 21¼"; N/A; Service Range: 3½" to 35"; 4" to 44"; 4" to 59"; 4" to 63"; 3½" to 44"; 3½" to 59"; 6¼" to 45 5/8"; 3 1/8" x 59". These values cover multiple models; consult the individual row for the model being quoted.
The catalog entry describes push-button controls, foot-pump actuation, hand-pump actuation. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, pages 120, 404. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 13 model references for this family. The first listed model is HYD-3. Compare the model rows and confirm the required configuration when quoting.
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
