Open an image to inspect its original detail.

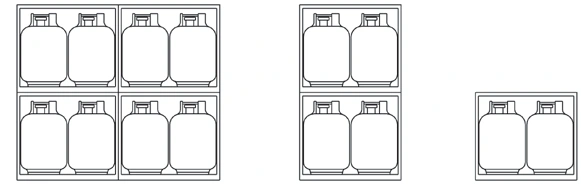

| MODEL NUMBER | CYLINDER CAPACITY | OVERALL SIZE (W x L x H) | NUMBER OF SHELVES | WEIGHT (POUND) |
|---|---|---|---|---|
| CYL-LP-2-CA | 2 | 30" x 20" x 35¼" | 0 | 136 |
| CYL-LP-4-CA | 4 | 30" x 32" x 35¼" | 0 | 172 |
| CYL-LP-8-CA | 8 | 30" x 32" x 68¼" | 1 | 242 |
| CYL-LP-16-CA | 16 | 60" x 32" x 68¼" | 2 | 452 |

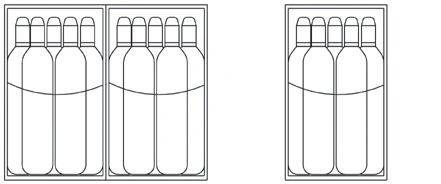

| CYL-G-8-CA | 8 | 30" x 32" x 68¼" | 0 | 206 |
| CYL-G-12-CA | 12 | 60" x 32" x 68¼" | 0 | 432 |
| Cylinder Capacity | 2; 4; 8; 16; 12 |
|---|---|
| Overall Size (W X L X H) | 30" x 20" x 35¼"; 30" x 32" x 35¼"; 30" x 32" x 68¼"; 60" x 32" x 68¼" |
| Number Of Shelves | 0; 1; 2 |
Source: 2018 catalog, page 324. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists CYL-LP-2-CA through CYL-G-12-CA within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Cylinder Capacity: 2; 4; 8; 16; 12; Overall Size (W X L X H): 30" x 20" x 35¼"; 30" x 32" x 35¼"; 30" x 32" x 68¼"; 60" x 32" x 68¼". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 324. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 6 model references for this family. The first listed model is CYL-LP-2-CA. Compare the model rows and confirm the required configuration when quoting.
Describe the container dimensions, contents and handling operation when selecting a model. Compatibility depends on the particular container and attachment configuration.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
