| MODEL NUMBER | PLATFORM SIZE (W x L) | SERVICE RANGE | UNIFORM CAPACITY | POWER | WEIGHT (POUND) |
|---|---|---|---|---|---|

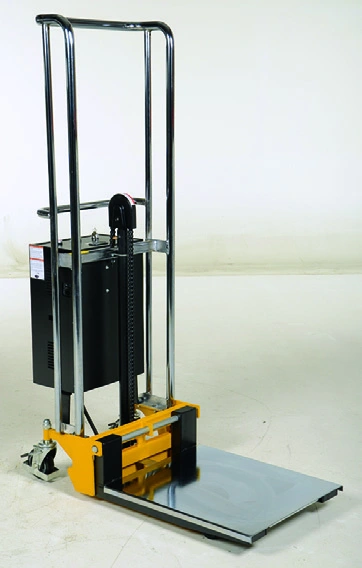

| HYD-10-DC | 22 1/8" x 25¾" | 3½" to 59" | 880 lb. | 12V DC | 330 |

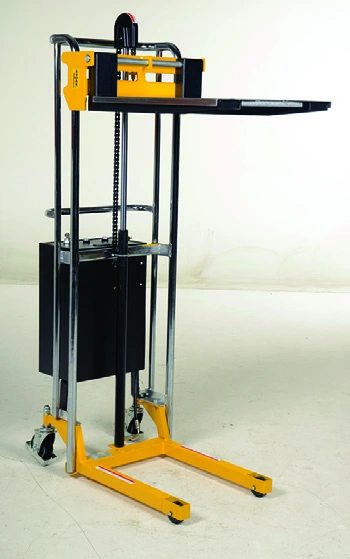

| HYD-CB-10-DC* | N/A | 2¾" to 55½" | 550 lb. | 12V DC | 566 |

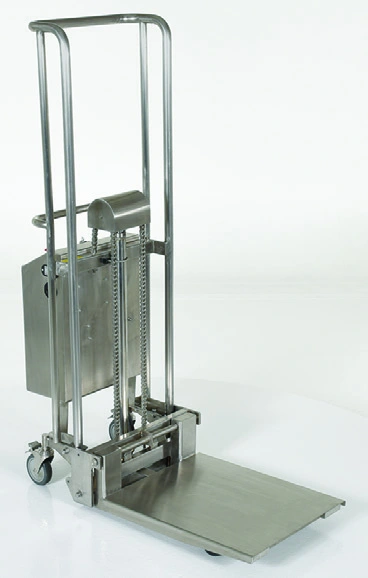

| HYD-10-DC-SS | 22" x 25¾" | 3½" to 59" | 880 lb. | 12V DC | 257 |
| HYDC-SPIN | SINGLE SPINDLE | 10 | |||
| HYDC-DSPIN | DOUBLE SPINDLE | 18 | |||
| HYDC-VFRK | V-SHAPE FORK | 28 | |||
| HYDC-RP | ROLLER PLATFORM | 44 | |||
| HYDC-BTP | BALL TRANSFER PLATFORM | 34 | |||
| HYDC-SSP | 304 STAINLESS STEEL PLATFORM | 22 | |||
| HYDC-VBLK | V BLOCK | 27 | |||
| HYDC-RR | RUBBER ROLLER | 22 | |||
| HYDC-FRKHK | FORK HOOK | 15 |
| Platform Size (W X L) | 22 1/8" x 25¾"; N/A; 22" x 25¾" |
|---|---|
| Uniform Capacity | 880 lb.; 550 lb. |
| Power | 12V DC |
Source: 2018 catalog, page 120. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The catalog lists HYD-10-DC through HYDC-FRKHK within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 22 1/8" x 25¾"; N/A; 22" x 25¾"; Uniform Capacity: 880 lb.; 550 lb.. These values cover multiple models; consult the individual row for the model being quoted.
Power details mentioned in the catalog entry include 12V. Confirm which apply to the selected model or optional power package.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 120. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 12 model references for this family. The first listed model is HYD-10-DC. Compare the model rows and confirm the required configuration when quoting.
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
