| MODEL NUMBER | PLATFORM SIZE (W x L) | UNIFORM CAPACITY | SERVICE RANGE | CASTER SIZE | WEIGHT (POUNDS) |
|---|---|---|---|---|---|
| PEL-88 | 23½" x 18½" | 175 lb. | 5 5/8" to 57" | 3" | 225 |
| PEL-100 | 23½" x 18½" | 125 lb. | 5 5/8" to 72" | 3" | 245 |
| PEL-400-57 | 24" x 20" | 400 lb. | 6½" to 57" | 4" | 574 |
| PEL-400-72 | 24" x 20" | 400 lb. | 6½" to 72" | 4" | 560 |
| PEL-88-A | 23½" x 18½" | 175 lb. | 5½" to 57" | 3" | 205 |
| PEL-100-A | 23½" x 18½" | 125 lb. | 5½" to 72" | 3" | 225 |
| PEL-HOOK | HOOK ARM | 9 | |||

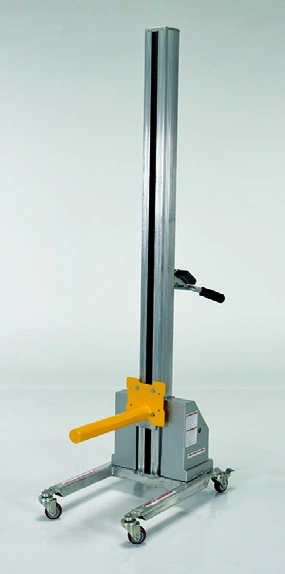

| PEL-SPIN | SINGLE SPINDLE | 11 | |||
| PEL-DSPIN | DOUBLE SPINDLE | 21 | |||
| PEL-VBLK | "V" BLOCK ATTACHMENT | 27 | |||
| PEL-CONV | CONVEYOR WITH BRAKE | 40 | |||
| PEL-PAIL | PAIL DUMPER | 20 | |||
| PEL-RR | REEL ROTATOR | 40 | |||
| PEL-88-KEG-KT | KEG LIFTER KIT FOR MODEL PEL-88 | 11 | |||
| PEL-400-KEG-KT | KEG LIFTER KIT FOR SERIES PEL-400 | 14 | |||
| PEL-88-AC | OPTIONAL 115V OR 230V, 1 PHASE SUPPLY OPTION | ||||
| PEL-400-AC | OPTIONAL 230V 1 PHASE SUPPLY OPTION | ||||
| PEL-88-AC/DC | OPERATES ON EITHER 24V DC, 115V OR 230V, 1 PHASE | ||||
| PEL-400-AC/DC | OPERATES ON EITHER 24V DC OR 230V, 1 PHASE ONLY | ||||

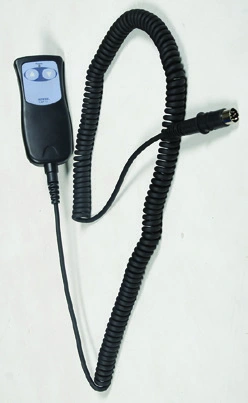

| PEL-2PB | HANDHELD PUSH-BUTTON CONTROL | ||||
| PEL-RRC | WIRELESS REMOTE CONTROL FOR THE QUICK LIFT | ||||

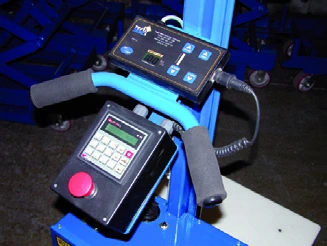

| PEL-INDEX-4 | PROGRAMMABLE HEIGHT INDEXING 4 SETPOINTS | ||||
| PEL-INDEX-21 | PROGRAMMABLE HEIGHT INDEXING 21 SETPOINTS |
| Service Range | 5 5/8" to 57"; 5 5/8" to 72"; 6½" to 57"; 6½" to 72"; 5½" to 57"; 5½" to 72" |
|---|---|
| Caster Size | 3"; 4" |
Source: 2018 catalog, page 119. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists PEL-88 through PEL-INDEX-21 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Service Range: 5 5/8" to 57"; 5 5/8" to 72"; 6½" to 57"; 6½" to 72"; 5½" to 57"; 5½" to 72"; Caster Size: 3"; 4". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 119. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 23 model references for this family. The first listed model is PEL-88. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
