| Model / reference | Catalog configuration | Style / Aluminum | Brake / Aluminum | Wheels / Aluminum | Dimensions W x D x H (in) / Aluminum | Capacity (lb) / Aluminum | Weight (lb) / Steel | Weight (lb) / Aluminum |
|---|---|---|---|---|---|---|---|---|
| F81600A9 | Steel | 2-Wheel | - | (2) 12” Pneumatic | 26 x 18 x 52 | 1,000 | 70 | 45 |
| F81500A0 | Aluminum | 2-Wheel | - | (2) 12” Pneumatic | 26 x 18 x 52 | 1,000 | 70 | 45 |
| F81735A7 | Steel | 2-Wheel | - | (2) 10” Solid Rubber | 25 x 18 x 52 | 1,000 | 70 | 45 |
| F81625A0 | Aluminum | 2-Wheel | - | (2) 10” Solid Rubber | 25 x 18 x 52 | 1,000 | 70 | 45 |
| F81895A3 | Steel | 2-Wheel | - | (2) 10” Mold-On Rubber | 25 x 18 x 52 | 1,000 | 70 | 45 |
| F81770A3 | Aluminum | 2-Wheel | - | (2) 10” Mold-On Rubber | 25 x 18 x 52 | 1,000 | 70 | 45 |
| F82025A4 | Steel | 2-Wheel | Hand Brake | (2) 12” Pneumatic | 26 x 18 x 52 | 1,000 | 75 | 50 |
| F81925A7 | Aluminum | 2-Wheel | Hand Brake | (2) 12” Pneumatic | 26 x 18 x 52 | 1,000 | 75 | 50 |
| F82150A1 | Steel | 2-Wheel | Hand Brake | (2) 10” Solid Rubber | 25 x 18 x 52 | 1,000 | 75 | 50 |
| F82050A2 | Aluminum | 2-Wheel | Hand Brake | (2) 10” Solid Rubber | 25 x 18 x 52 | 1,000 | 75 | 50 |
| F82375A0 | Steel | 4-Wheel | - | (2) 12” Front Pneumatic & (2) 6" Poly | 26 x 21 x 60 | 1,000 | 75 | 50 |
| F82175A2 | Aluminum | 4-Wheel | - | (2) 12” Front Pneumatic & (2) 6" Poly | 26 x 21 x 60 | 1,000 | 75 | 50 |
| F82895A1 | Steel | 4-Wheel | - | (2) 10” Front Solid Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 75 | 50 |
| F82425A0 | Aluminum | 4-Wheel | - | (2) 10” Front Solid Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 75 | 50 |
| F82845A2 | Steel | 4-Wheel | - | (2) 10” Front Mold-On Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 75 | 50 |
| F82645A4 | Aluminum | 4-Wheel | - | (2) 10” Front Mold-On Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 75 | 50 |
| F83160A7 | Steel | 4-Wheel | Hand Brake | (2) 12” Front Pneumatic & (2) 6" Poly | 26 x 21 x 60 | 1,000 | 80 | 55 |
| F82960A1 | Aluminum | 4-Wheel | Hand Brake | (2) 12” Front Pneumatic & (2) 6" Poly | 26 x 21 x 60 | 1,000 | 80 | 55 |
| F83450A6 | Steel | 4-Wheel | Hand Brake | (2) 10” Front Solid Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 80 | 55 |
| F83210A7 | Aluminum | 4-Wheel | Hand Brake | (2) 10” Front Solid Rubber & (2) 6" Poly | 25 x 21 x 60 | 1,000 | 80 | 55 |
| Documented model configurations | 20 |
|---|---|
| Capacity (lb) / Aluminum | 1,000 |
| Catalog feature / option | Standard universal chime hook is spring-loaded with a hands-free connection. |
Source: 2025 storage and handling catalog, PDF page 39. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

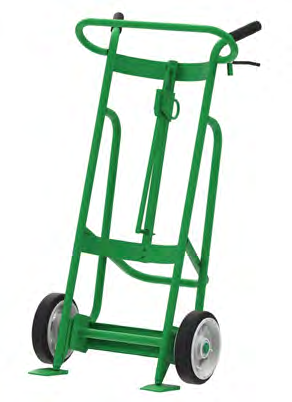

Manual Drum Hand Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Efficiently transport drums and barrels throughout facilities or on the go.; Compatible with 30 and 55 gallon drums: steel, plastic, and fiber.; Ergonomic design with rubber grip twin handles and full loop handle.; Hand brake option gives operators added control and safety.; Standard universal chime hook is spring-loaded with a hands-free connection.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 39. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
Equipment details
Powered-Grip Manual-Drive Drum Rotators. Documented model configurations: 4. Drive / lift style: Semi-Powered. Drum connection: Grip.
Equipment details
Powered-Drive Strap Drum Rotators. Documented model configurations: 4. Drive / lift style: Fully Powered. Drum connection: Strap.
Equipment details
Powered-Drive Grip Drum Rotators. Documented model configurations: 4. Drive / lift style: Fully Powered. Drum connection: Grip.
