Open an image to inspect its original detail.
| MODEL NUMBER | STEEL DUAL HANDLE HAND TRUCKS | NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | WEIGHT (POUND) |
|---|---|---|---|---|---|
| DHHT-500S-HR | 13¾" x 6½" | 500 lb. | 21" x 17½" x 44½" | 40 | |
| DHHT-500S | 13¾" x 6½" | 500 lb. | 22½" x 17½" x 44½" | 30 |

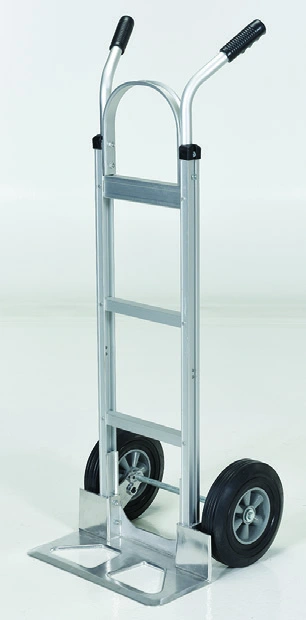

| MODEL NUMBER | ALUMINUM DUAL HANDLE HAND TRUCKS | NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | WEIGHT (POUND) |
|---|---|---|---|---|---|
| DHHT-500A-HR* | 18" x 7½" | 500 lb. | 19½" x 19" x 51¼" | 36 | |
| DHHT-500A-ANP-HR* | 18" x 7½" | 500 lb. | 19½" x 19" x 51¼" | 33 | |
| DHHT-500A* | 18" x 7½" | 500 lb. | 20¼" x 19" x 51¼" | 24 | |
| DHHT-500A-ANP* | 18" x 7½" | 500 lb. | 20¼" x 19" x 51¼" | 24 |
| Nose Plate (W X D) | 13¾" x 6½"; 18" x 7½" |
|---|---|
| Uniform Capacity | 500 lb. |
| Overall Size (W X D X H) | 21" x 17½" x 44½"; 22½" x 17½" x 44½"; 19½" x 19" x 51¼"; 20¼" x 19" x 51¼" |
Source: 2018 catalog, page 355. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The catalog lists DHHT-500S-HR through DHHT-500A-ANP within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Nose Plate (W X D): 13¾" x 6½"; 18" x 7½"; Uniform Capacity: 500 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 355. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 6 model references for this family. The first listed model is DHHT-500S-HR. Compare the model rows and confirm the required configuration when quoting.
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
