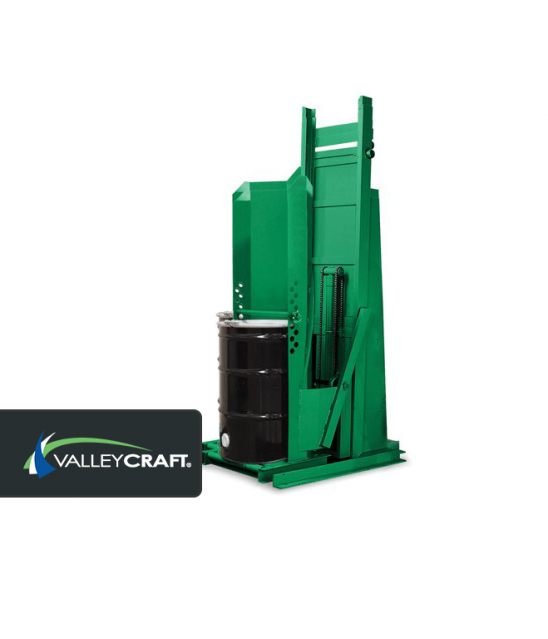

Original catalog photograph. Confirm the selected model and configuration with your quote.
| Capacity (lbs) | 1500 |
|---|---|
| Drive | Portable, Stationary |
| Dump Height (Inches) | 108, 120, 72, 84, 96 |
| Chute Height (Inches) | 58 |
| Chute Reach (Inches) | 6 |
| Horizontal Clearance (Inches) | 66 |
| Overhead Clearance (Inches) | 130, 140, 152, 164, 176 |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Dual Stage High Level Stationary Drum Dumper
Valley Craft’s High Level Drum Dumpers are available in Stationary or Portable models, 1,500-lb. capacity, with dump heights ranging from 72 inch to 120 inch with a maximum dumping angle of 45-degrees. Drum chute rises vertically until arms meet pivot rollers, causing chute to rotate. With user safety our number one priority, Valley Craft’s drum dumpers include a NEMA12 power up/gravity down power unit with adjustable flow control to safely lower chute to its down position. The 1/60/110V power unit is equipped with a 1HP motor and a 1GPM pump. Drum dumpers feature an adjustable hold-down bar to accommodate various drum heights up to 43 inch , and are constructed of heavy gauge carbon steel with an enamel finish.
About Valley Craft
Valley Craft designs, develops and manufactures Professional Grade material handling and storage solutions, including a broad array of proprietary and custom products. On the shores of beautiful Lake Pepin, in Lake City Minnesota, Valley Craft is staffed by a committed and loyal team of employees. Valley Craft has grown to become a world class manufacturer known for its expertise in producing rugged and versatile hand trucks, carts, trailers, portable lifts, hydraulic drum handling devices, and storage equipment.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Capacity (lbs): 1500; Drive: Portable, Stationary; Dump Height (Inches): 108, 120, 72, 84, 96. Confirm the complete selected configuration before ordering.
Include the product name and SKU 17-12-0083, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
