SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| QUICKSHIP | MODEL NUMBER | PLATFORM SIZE (W x L) | LOWERED HEIGHT | RAISED HEIGHT | *UNIFORM CAPACITY | VOLTAGE PHASE | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|
| EHLT-2448-3-43-QS | 24" x 48" | 7" | 43" | 3,000 lb. | 460/3 | 694 | |
| EHLT-3060-3-43-QS | 30" x 60" | 7" | 43" | 3,000 lb. | 460/3 | 823 | |
| EHLT-4048-3-43-QS | 40" x 48" | 7" | 43" | 3,000 lb. | 460/3 | 807 | |
| EHLT-4848-3-43-QS | 48" x 48" | 7" | 43" | 3,000 lb. | 460/3 | 841 | |
| EHLT-4872-3-43-QS | 48" x 72" | 7" | 43" | 3,000 lb. | 460/3 | 946 | |
| EHLT-3060-4-43-QS | 30" x 60" | 7" | 43" | 4,000 lb. | 460/3 | 827 | |
| EHLT-4048-4-43-QS | 40" x 48" | 7" | 43" | 4,000 lb. | 460/3 | 878 | |
| EHLT-4848-4-43-QS | 48" x 48" | 7" | 43" | 4,000 lb. | 460/3 | 918 | |
| EHLT-4872-4-43-QS | 48" x 72" | 7" | 43" | 4,000 lb. | 460/3 | 963 |
| PARTIALLY STAINLESS STEEL MODEL NUMBER | (460V 3 PHASE POWER) PLATFORM SIZE (W x L) | LOWERED HEIGHT | RAISED HEIGHT | *UNIFORM CAPACITY | VOLTAGE PHASE | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| EHLT-2448-1-43-PSS | 24" x 48" | 7" | 43" | 1,000 lb. | 460/3 | 652 |
| EHLT-2448-2-43-PSS | 24" x 48" | 7" | 43" | 2,000 lb. | 460/3 | 652 |
| EHLT-2448-3-43-PSS | 24" x 48" | 7" | 43" | 3,000 lb. | 460/3 | 694 |
| EHLT-2448-4-43-PSS | 24" x 48" | 7" | 43" | 4,000 lb. | 460/3 | 714 |
| EHLT-4848-1-43-PSS | 48" x 48" | 7" | 43" | 1,000 lb. | 460/3 | 820 |
| EHLT-4848-2-43-PSS | 48" x 48" | 7" | 43" | 2,000 lb. | 460/3 | 820 |
| EHLT-4848-3-43-PSS | 48" x 48" | 7" | 43" | 3,000 lb. | 460/3 | 841 |
| EHLT-4848-4-43-PSS | 48" x 48" | 7" | 43" | 4,000 lb. | 460/3 | 918 |
| Platform Size (W X L) | 24" x 48"; 30" x 60"; 40" x 48"; 48" x 48"; 48" x 72" |
|---|---|
| Lowered Height | 7" |
| Raised Height | 43" |
| *Uniform Capacity | 3,000 lb.; 4,000 lb.; 1,000 lb.; 2,000 lb. |
| Voltage Phase | 460/3 |
| (460V 3 Phase Power) Platform Size (W X L) | 24" x 48"; 48" x 48" |
Source: 2018 catalog, page 94. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The catalog lists EHLT-2448-3-43-QS through EHLT-4848-4-43-PSS within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 24" x 48"; 30" x 60"; 40" x 48"; 48" x 48"; 48" x 72"; Lowered Height: 7". These values cover multiple models; consult the individual row for the model being quoted.

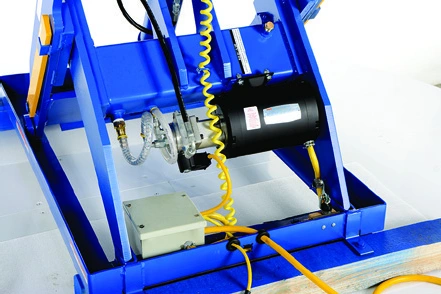

Power details mentioned in the catalog entry include 460V, 24V, 2HP, 60 Hz. Confirm which apply to the selected model or optional power package.

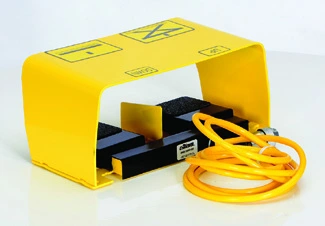

The catalog entry describes push-button controls. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 94. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for electric hydraulic scissor lift tables?
The catalog records 17 model references for this family. The first listed model is EHLT-2448-3-43-QS. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right electric hydraulic scissor lift tables configuration?
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
