| Model / reference | VERTICAL TRAVEL | CAPACITY | LOAD CENTER | LOWERED / LOAD CENTER / RIGID | LOWERED / LOAD CENTER / ADJ. | STRADDLE / LOAD CENTER / ID | STRADDLE / LOAD CENTER / OD | LIFT SPEED / LOAD CENTER / OD | OVERALL HEIGHT / LOAD CENTER / COL | OVERALL HEIGHT / LOAD CENTER / EXT | WEIGHT / LOAD CENTER / EXT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BM-MMSE-30 | 58” | 660 | 12” | 3.1” | 1.8” | 14.5” | 18.8” | 14 | 67.8” | 72” | 272 lbs |
| VERTICAL TRAVEL | 58” |
|---|---|
| CAPACITY | 660 |
| LOAD CENTER | 12” |
| LOWERED / LOAD CENTER / RIGID | 3.1” |
| LOWERED / LOAD CENTER / ADJ. | 1.8” |
| STRADDLE / LOAD CENTER / ID | 14.5” |
| STRADDLE / LOAD CENTER / OD | 18.8” |
| LIFT SPEED / LOAD CENTER / OD | 14 |
| OVERALL HEIGHT / LOAD CENTER / COL | 67.8” |
| OVERALL HEIGHT / LOAD CENTER / EXT | 72” |
| WEIGHT / LOAD CENTER / EXT | 272 lbs |
| Catalog feature / option | Cylinder overload protection |
Source: 2026 material handling catalog, PDF page 39. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Electric Mini Lift — MMSE Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

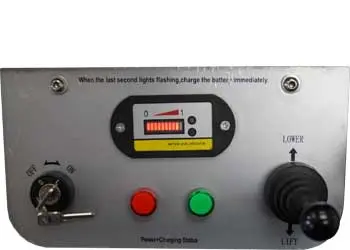

Catalog features and options: Lift / Lower Stick; Key switch; Battery discharge indicator; Charging lights; Emergency stop switch; Built-in automatic charger and cord; 12V deep cycle maintenance free battery; (2) rear swivel casters with brakes; (2) front rigid casters; Chrome plated lift cylinder; Cylinder overload protection.
Reference: 2026 material handling catalog, PDF page 39. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 691215002349
Vestil Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver ALLW-2020-FW. Material: Aluminum/Steel; Co…
SKU 31-10-0149
Vestil Portable Worksite Lift. Platform Width (Inches): 20; Platform Length (Inches): 20; Service Range: 14.75 - 70. Review the equipment information …
Equipment details
Powered-Drive Interchangeable-Attachment Steel Lifts. Documented model configurations: 2. Style: Fully Powered. Base: Counter- weighted.
