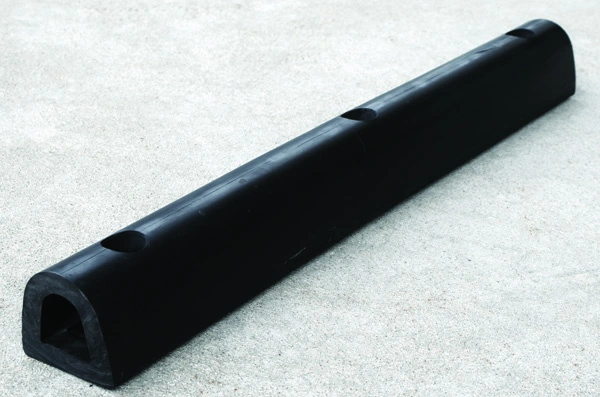

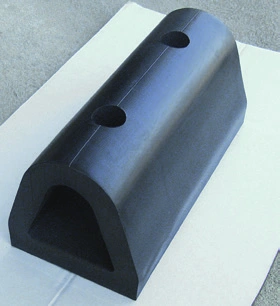

Extruded Bumpers catalog equipment view

Open an image to inspect its original detail.

Extruded Bumpers catalog equipment viewExtruded Bumpers catalog equipment view

Specifications & options

TYPEMODEL NUMBEROVERALL SIZE (L x W x H)# OF HOLES & SIZEWEIGHT (POUND)
AM-2-1212"L x 2"W x 1¾"H2, 1/2"2
AM-2-1818"L x 2"W x 1¾"H2, 1/2"2
AM-2-2424"L x 2"W x 1¾"H2, 1/2"3
AM-2-3636"L x 2"W x 1¾"H3, 1/2"8
AM-2-120120"L x 2"W x 1¾"H013
BM-4-1212"L x 4¼"W x 4"H2, 7/8"8
BM-4-1818"L x 4¼"W x 4"H2, 7/8"10
BM-4-2424"L x 4¼"W x 4"H2, 7/8"14
BM-4-3636"L x 4¼"W x 4"H3, 7/8"18
BM-4-120120"L x 4¼"W x 4"H056
CM-6-1212"L x 6"W x 6"H2, 7/8"14
CM-6-1818"L x 6"W x 6"H2, 7/8"18
CM-6-2424"L x 6"W x 6"H2, 7/8"24
CM-6-3636"L x 6"W x 6"H3, 7/8"34
CM-6-120120"L x 6"W x 6"H0137
---AS-383(1) 3/8" x 3", USE WITH M-2 SERIES1
---AS-383-4PK(4) 3/8" x 3", USE WITH M-2 SERIES4
---AS-344(1) 3/4" x 4", USE WITH M-4 & M-6 SERIES1
---AS-344-4PK(4) 3/4" x 4", USE WITH M-4 & M-6 SERIES4
TypeA; B; C; ---
# Of Holes & Size2, 1/2"; 3, 1/2"; 0; 2, 7/8"; 3, 7/8"

Source: 2018 catalog, page 45. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.

The catalog lists M-2-12 through AS-344-4PK within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Type: A; B; C; ---; # Of Holes & Size: 2, 1/2"; 3, 1/2"; 0; 2, 7/8"; 3, 7/8". These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 45. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for extruded bumpers?

The catalog records 19 model references for this family. The first listed model is M-2-12. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right extruded bumpers configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
