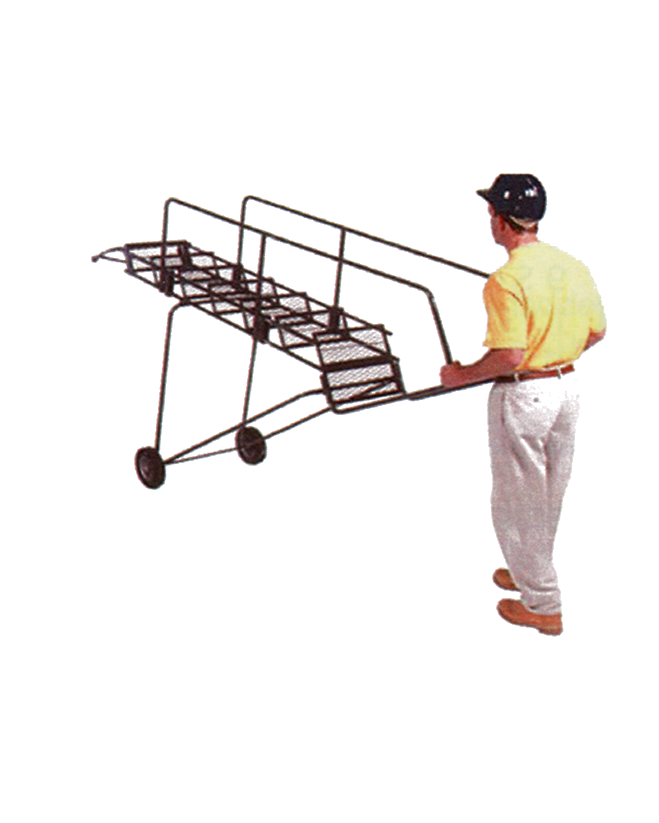

Ballymore manufacturer image listed for FAWL-9-P. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
| Model / reference | STEPS INCLUDING TOP STEP | HEIGHT INCHES / TOP STEP | HEIGHT INCHES / OVERALL | BASE W” x L” / OVERALL | WGT Lbs. / OVERALL |
|---|---|---|---|---|---|
| FAWL-5 | 5 STEP | 50” | 83” | 30 x 46 | 90 |
| FAWL-6 | 6 STEP | 60” | 93” | 30 x 52 | 100 |
| FAWL-7 | 7 STEP | 70” | 103” | 30 x 58 | 110 |
| FAWL-8 | 8 STEP | 80” | 113” | 30 x 64 | 120 |
| FAWL-9 | 9 STEP | 90” | 123” | 30 x 70 | 135 |
| FAWL-10 | 10 STEP | 100” | 133” | 30 x 76 | 148 |
| FAWL-11 | 11 STEP | 110” | 143” | 30 x 82 | 165 |
| FAWL-12 | 12 STEP | 120” | 153” | 30 x 88 | 175 |
| Documented model configurations | 8 |
|---|---|
| Catalog feature / option | 30” Handrails with guard rail 14” DEEP |
| Catalog feature / option | 350 LB. CAPACITY |
| Catalog feature / option | 16” Wide Treads |
Source: 2026 ladder and access catalog, PDF page 11. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Fold-and-Store Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: No hinge to break; 16” Wide steps; Blue powder coat finish; Approximately 10” deep when folded for easy storage; 7” Deep top step; 22” High handles The Modified Folding Ladder; 10” Deep top step; 30” Handrails with guard rail 14” DEEP; 350 LB. CAPACITY; Can be folded for storage or transportation; Tilt and roll mobility; Large 10” rubber wheels roll easily on rough surfaces; 16” Wide Treads; Ships un-assembled; Tools required to fold.
Reference: 2026 ladder and access catalog, PDF page 11. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
