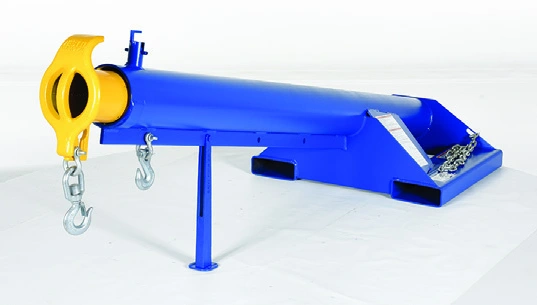

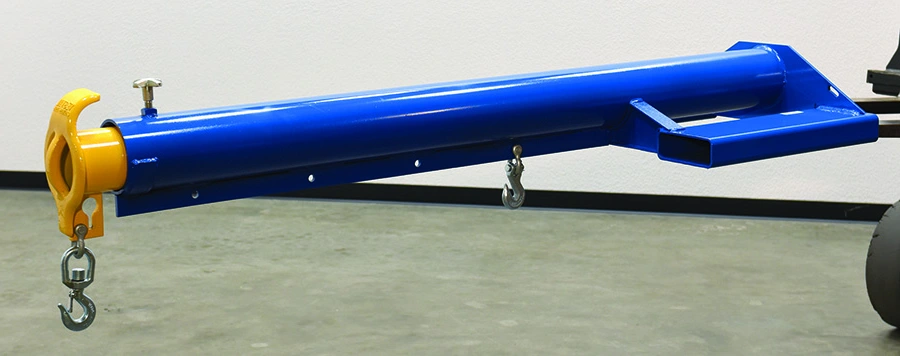

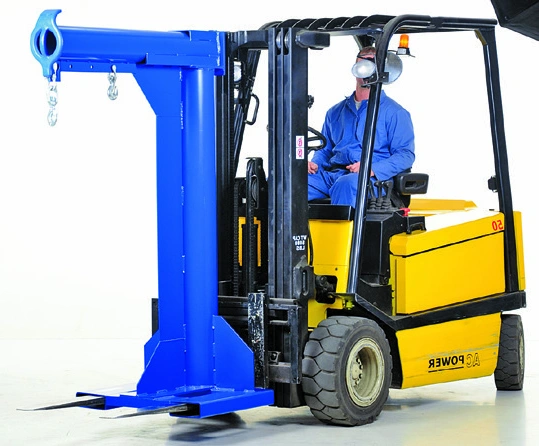

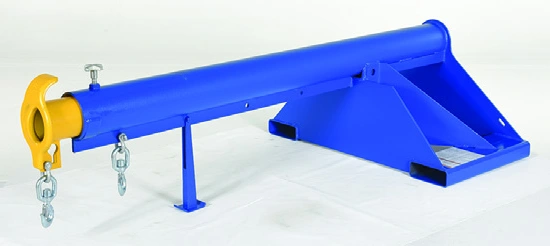

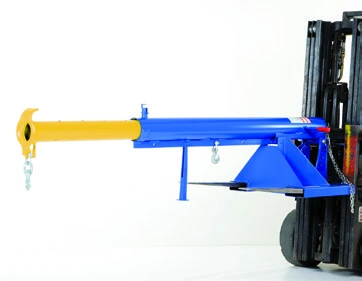

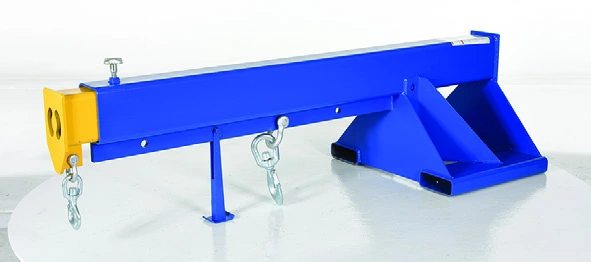

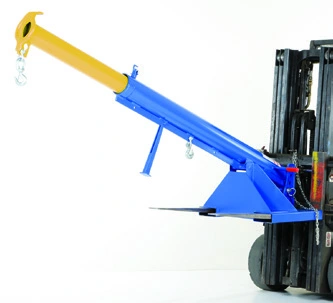

Fork-Mounted Lifting Booms catalog equipment view

Open an image to inspect its original detail.

Fork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment viewFork-Mounted Lifting Booms catalog equipment view

Specifications & options

MODEL NUMBERDESCRIPTIONOVERALL HEIGHTOVERALL EXTENDED LENGTHUNIFORM CAPACITYWEIGHT (POUND)
LM-1T-4-24LIFT MASTER BOOM25 7/8"151 1/4"4,000 lb.425
LM-OBT-4-24ORBIT BOOM27 11/16"146 5/8"4,000 lb.433
LM-HRT-4-24HIGH-RISE BOOM79 13/16"92 5/8"4,000 lb.950
LM-EBT-4-24ECONOMY BOOM13½"151 1/2"4,000 lb.333
LM-F15-4-24FIXED 15 DEGREES33"147"4,000 lb.370
LM-1T-6-24LIFT MASTER BOOM25 7/8"151 1/4"6,000 lb.480
LM-OBT-6-24ORBIT BOOM27 11/16"146 5/8"6,000 lb.476
LM-HRT-6-24HIGH-RISE BOOM79 13/16"92 5/8"6,000 lb.950
LM-EBT-6-24ECONOMY BOOM13½"151 1/2"6,000 lb.377
LM-1T-8-24LIFT MASTER BOOM26 9/16"149 1/8"8,000 lb.647
LM-OBT-8-24ORBIT BOOM28 7/8"148 1/2"8,000 lb.622
LM-EBT-8-24ECONOMY BOOM15"149 3/8"8,000 lb.577
LM-1NT-4-24LIFT MASTER BOOM24 13/16"81 1/2"4,000 lb.333
LM-OBNT-4-24ORBIT BOOM26 5/8"80 7/8"4,000 lb.337
LM-HRNT-4-24HIGH-RISE BOOM78 9/16"50 3/8"4,000 lb.810
LM-EBNT-4-24ECONOMY BOOM13 5/16"81 5/8"4,000 lb.258
LM-1NT-6-24LIFT MASTER BOOM24 13/16"81 1/2"6,000 lb.489
LM-OBNT-6-24ORBIT BOOM26 5/8"80 7/8"6,000 lb.391
LM-HRNT-6-24HIGH-RISE BOOM78 9/16"50 3/8"6,000 lb.697
LM-EBNT-6-24ECONOMY BOOM13 15/16"81 5/8"6,000 lb.291
LM-1NT-8-24LIFT MASTER BOOM23½"80 1/8"8,000 lb.476
LM-OBNT-8-24ORBIT BOOM25 1/8"79 1/2"8,000 lb.792
LM-EBNT-8-24ECONOMY BOOM11 1/2"80 3/8"8,000 lb.418
Uniform Capacity4,000 lb.; 6,000 lb.; 8,000 lb.

Source: 2018 catalog, page 189. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists LM-1T-4-24 through LM-1T-4-36 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Uniform Capacity: 4,000 lb.; 6,000 lb.; 8,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 189. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for fork-mounted lifting booms?

The catalog records 24 model references for this family. The first listed model is LM-1T-4-24. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right fork-mounted lifting booms configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
