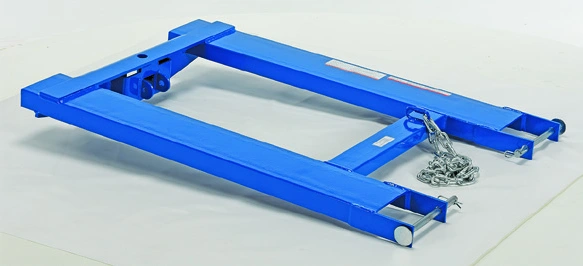

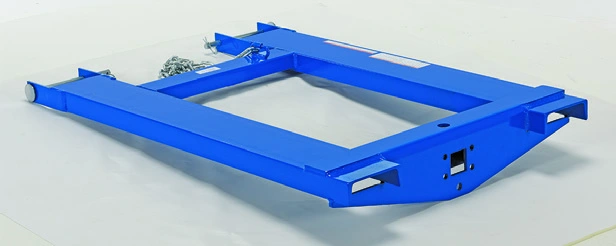

Fork Truck Bases with Optional Tow Balls & Pintle Hook catalog equipment view

Open an image to inspect its original detail.

Fork Truck Bases with Optional Tow Balls & Pintle Hook catalog equipment viewFork Truck Bases with Optional Tow Balls & Pintle Hook catalog equipment viewFork Truck Bases with Optional Tow Balls & Pintle Hook catalog equipment view

Specifications & options

MODEL NUMBERDESCRIPTIONFORK LENGTHLENGTH TO CENTER OF BALLUNIFORM CAPACITYWEIGHT (POUND)
HOOK-BASE-32FORK BASE36"32 3/8"4,000 lb.139
HOOK-BASE-38FORK BASE42"38 3/8"4,000 lb.162
HOOK-BASE-44FORK BASE48"44 3/8"4,000 lb.166
MODEL NUMBERDESCRIPTIONBALL DIAMETERSHANK DIAMETERUNIFORM CAPACITYWEIGHT (POUND)
BALL-178TOW BALL1 7/8"1"2,000 lb.3
BALL-200TOW BALL2"1"5,000 lb.3
BALL-2516TOW BALL2 5/16"1"5,000 lb.4
MODEL NUMBERDESCRIPTIONJAW OPENINGUNIFORM TONGUE CAPACITYUNIFORM TOW CAPACITYWEIGHT (POUND)
PINTLEPINTLE HOOK1¾"2,000 lb.10,000 lb.11
Fork Length36"; 42"; 48"
Length To Center Of Ball32 3/8"; 38 3/8"; 44 3/8"
Uniform Capacity4,000 lb.; 2,000 lb.; 5,000 lb.
Ball Diameter1 7/8"; 2"; 2 5/16"
Shank Diameter1"
Jaw Opening1¾"

Source: 2018 catalog, page 190. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.

The catalog lists HOOK-BASE-32 through PINTLE within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Fork Length: 36"; 42"; 48"; Length To Center Of Ball: 32 3/8"; 38 3/8"; 44 3/8". These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 190. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for fork truck bases with optional tow balls & pintle hook?

The catalog records 7 model references for this family. The first listed model is HOOK-BASE-32. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right fork truck bases with optional tow balls & pintle hook configuration?

Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
