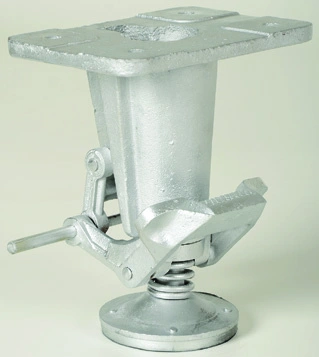

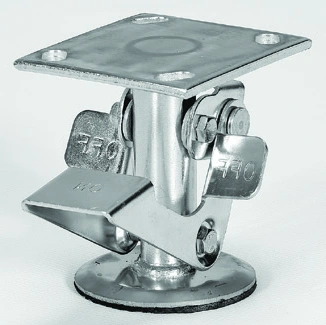

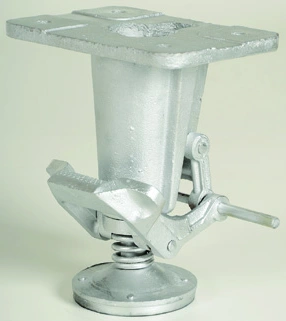

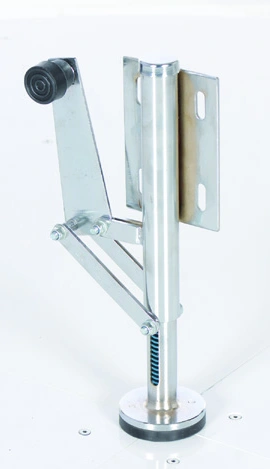

| MODEL NUMBER | MOUNTING HEIGHT | RETRACTED HEIGHT | USED WITH CASTER SIZE | WEIGHT (POUND) |
|---|---|---|---|---|
| FL-LK-4E | 5 5/8" | 4 7/8" | 4" | 5 |
| FL-LK-5EG | 7" | 6" | 5" | 5 |
| FL-LK-5X | 5 5/8" | 4½" | 5" | 9 |
| FL-LK-6EH | 8" | 7" | 6" | 7 |
| FL-LK-6EM | 7½" | 6 3/4" | 6" | 5 |
| FL-LK-6EL | 7¼" | 6 1/2" | 6" | 5 |
| FL-LK-7X | 7¼" | 6¼" | 6" | 11 |
| FL-LK-7G | 7¾" | 6¼" | 6" | 11 |
| FL-LK-8EH | 10½" | 9 1/2" | 8" | 8 |
| FL-LK-8EM | 10 1/8" | 9½" | 8" | 5 |
| FL-LK-8EL | 9½" | 8¾" | 8" | 5 |
| FL-LK-10 | 9 15/16" | 8 7/8" | 8" | 16 |
| FL-LK-S | 8 3/16" | 7" | 6" | 6 |
| FL-LK-SMR-L | 10" / 13 7/8" | 15 15/16" | (2" of Travel) | 9 |
| FL-LK-SMR-R | 10" / 13 7/8" | 15 15/16" | (2" of Travel) | 9 |
| FL-LK-SMR-SS-L | 10" / 13 7/8" | 15 15/16" | (2" of Travel) | 9 |
| FL-LK-SMR-SS-R | 10" / 13 7/8" | 15 15/16" | (2" of Travel) | 9 |
| MODEL NUMBER | RETRACTED HEIGHT | EXTENDED HEIGHT | USED WITH CASTER SIZE | WEIGHT (POUND) |
|---|---|---|---|---|
| FL-LK-4E | 4 7/8" | 5 5/8" | 4" | 5 |
| FL-LK-5EG | 6" | 7" | 5" | 8 |
| FL-LK-5X | 4½" | 5 5/8" | 5" | 9 |
| FL-LK-6EH | 7" | 8" | 6" | 7 |
| FL-LK-6EM | 6 3/4" | 7½" | 6" | 5 |
| FL-LK-6EL | 6 1/2" | 7¼" | 6" | 5 |
| FL-LK-7X | 6¼" | 7¼" | 6" | 11 |
| FL-LK-7G | 6¼" | 7¾" | 6" | 11 |
| FL-LK-8EH | 9 1/2" | 10½" | 8" | 8 |
| FL-LK-8EM | 9½" | 10 1/8" | 8" | 5 |
| FL-LK-8EL | 8¾" | 9½" | 8" | 5 |
| FL-LK-10 | 8 7/8" | 9 15/16" | 8" | 16 |
| FL-LK-S | 7" | 8 3/16" | 6" | 6 |
| FL-LK-SMR-L | 15 15/16" | 10" / 13 7/8" | (2" of Travel) | 7 |
| FL-LK-SMR-R | 15 15/16" | 10" / 13 7/8" | (2" of Travel) | 7 |
| FL-LK-SMR-SS-L | 15 15/16" | 10" / 13 7/8" | (2" of Travel) | 7 |
| FL-LK-SMR-SS-R | 15 15/16" | 10" / 13 7/8" | (2" of Travel) | 7 |
| Used With Caster Size | 4"; 5"; 6"; 8"; (2" of Travel) |
|---|
Source: 2018 catalog, pages 374, 445. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The catalog lists FL-LK-4E through FL-LK-SMR-SS-R within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Used With Caster Size: 4"; 5"; 6"; 8"; (2" of Travel). These values cover multiple models; consult the individual row for the model being quoted.
The catalog entry describes floor-lock positioning. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, pages 374, 445. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 17 model references for this family. The first listed model is FL-LK-4E. Compare the model rows and confirm the required configuration when quoting.
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
