SKU 1-13292

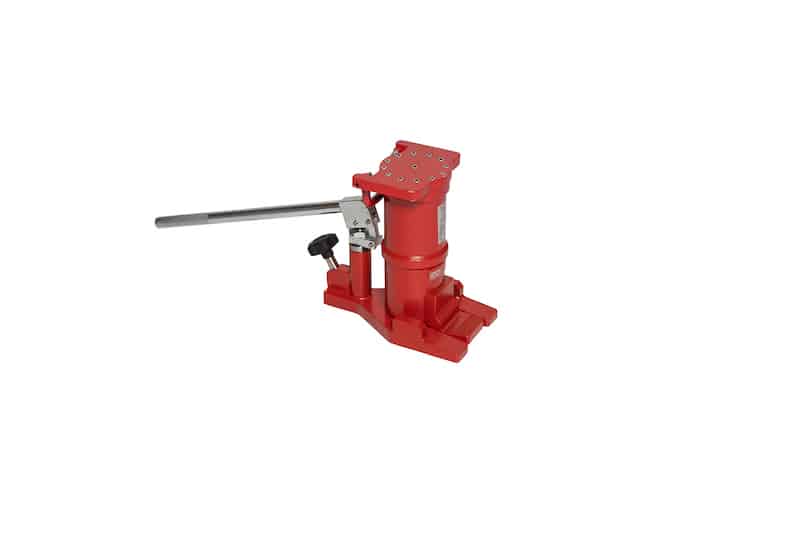

U6 Hydraulic toe jack with integrated pump. Can be used both vertically and horizontally.
Hydraulic toe jack with integrated pump. Can be used both vertically and horizontally.
- Lifting height
- 7500 psi
- Operating pressure
- 7500 psi

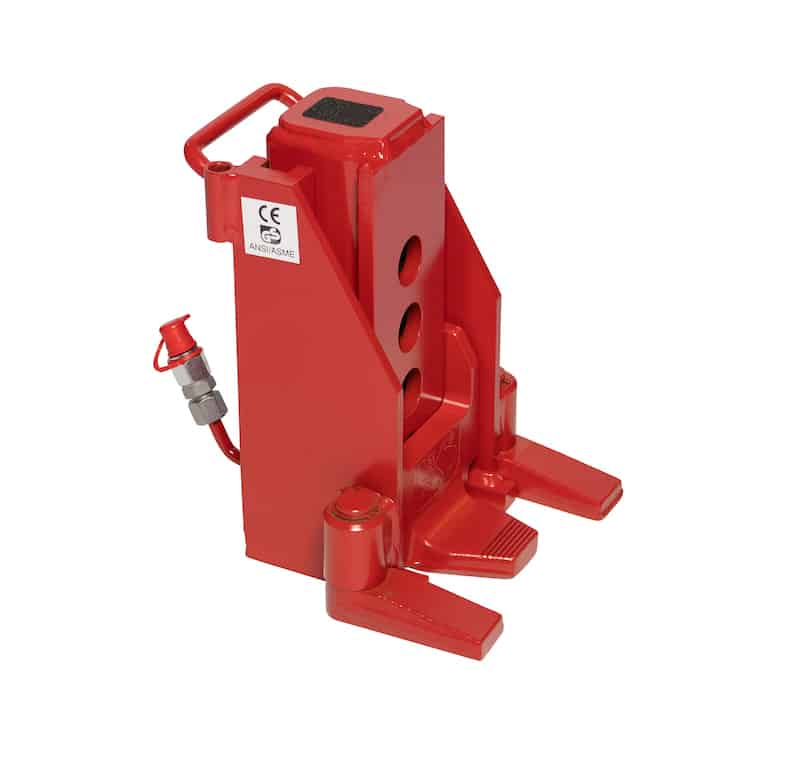

GKS family example: V10-EX Toe Jack with External Hydraulics. The photograph shows this example model, rather than every size in the family. Confirm the required capacity and configuration with your quote.
Specifications & options
| Model Number | V10-EX, V30-EX, V5-EX |
|---|---|
| Full Load Capacity | 11,000lbs. 50kN (5 t), 22,000lbs. 100 kN (10 t), 66,000lbs. 300kN (30 t) |
| Working Pressure | 6237psi 430bar, 7542psi 520bar |
| Lifting Height Stroke | 5.5" 140mm, 6.1" 156mm, 6.3" 160mm |
Source: GKS product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Detailed supplier information is not available in the source catalog. Request confirmation of dimensions, load limits and configuration for your application.
Documentation & drawings
Manufacturer reference: Manufacturer product and image reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
What specifications are listed for 18-11-0006?
Model Number: V10-EX, V30-EX, V5-EX; Full Load Capacity: 11,000lbs. 50kN (5 t), 22,000lbs. 100 kN (10 t), 66,000lbs. 300kN (30 t); Working Pressure: 6237psi 430bar, 7542psi 520bar. Confirm the complete selected configuration before ordering.
How do I request a quote for 18-11-0006?
Include the product name and SKU 18-11-0006, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Can you confirm freight and delivery timing?
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
More in Hydraulic Toe Jacks
SKU 1-12378

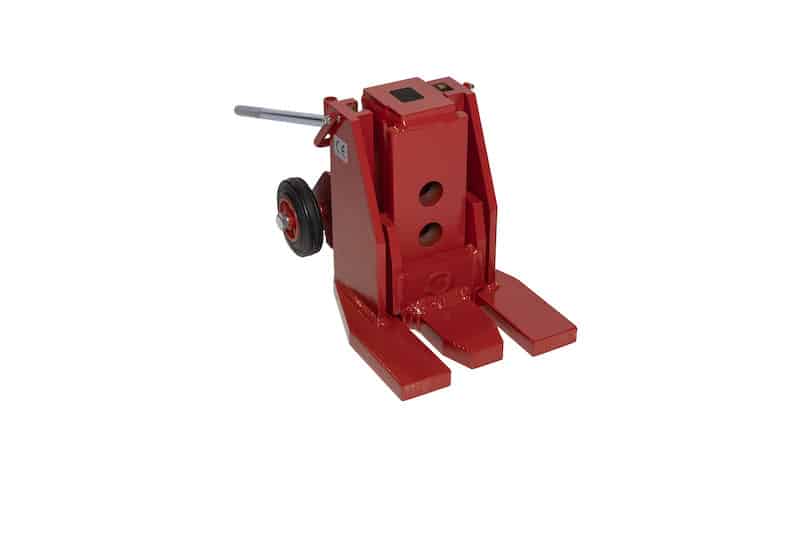

G10 Hydraulic toe jack with adjustable toe and integrated pump. Designed for forklift or vehlice maintenance.
Hydraulic toe jack with adjustable toe and integrated pump. Designed for forklift or vehlice maintenance.
- Lifting height
- 7500 psi
- Operating pressure
- 7500 psi
SKU 1-10189

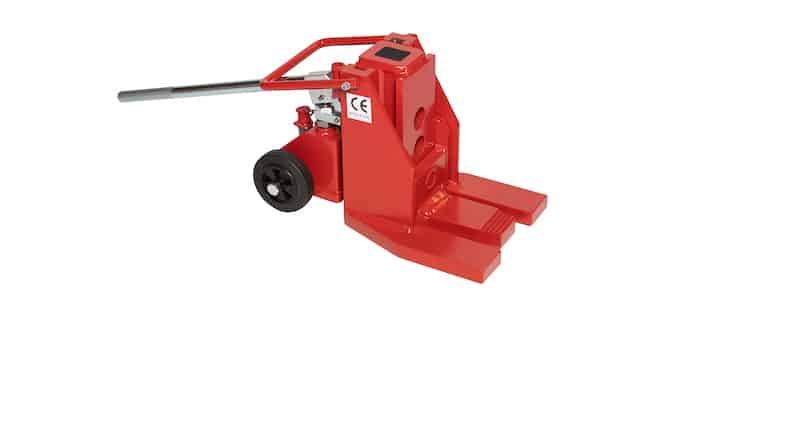

G5 Hydraulic toe jack with adjustable toe and integrated pump. Designed for forklift or vehlice maintenance.
