| Model / reference | Wheels | Brake | Power Source | Dimensions W x D x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|
| F89484 | (2) 121/2” Front Pneumatic & (2) 8” Rear Solid Rubber | Hand Brake | 24V Battery | 28 x 21 x 60 | 800 | 160 |
| F89503 | (2) 10” Front Solid Rubber & (2) 6” Rear Polyurethane | Hand Brake | 24V Battery | 26 x 20 x 60 | 800 | 150 |
| Documented model configurations | 2 |
|---|---|
| Brake | Hand Brake |
| Power Source | 24V Battery |
| Capacity (lb) | 800 |
| Catalog feature / option | Power drive improves safety when moving heavy payloads. |
| Catalog feature / option | Standard universal chime hook is spring-loaded with a hands-free connection. |
Source: 2025 storage and handling catalog, PDF page 40. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

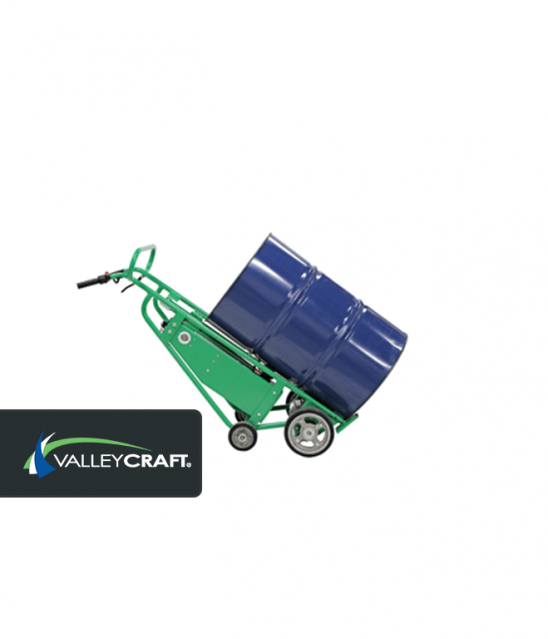

Powered Drum Hand Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Power drive improves safety when moving heavy payloads.; Efficiently transport drums throughout facilities or on the go.; Compatible with 30 and 55 gallon drums: steel, plastic, and fiber.; Variable speed control up to 2.5 MPH using twist throttle handle.; Full function forward and reverse with reverse audible warning.; Ergonomic design with rubber grip twin handles and full loop handle.; Hand brake gives operators added control and safety.; Built-in 18 AH rechargeable battery with monitor display.; Steel frame for heavy duty, rigorous applications.; 4-Wheel design: Pneumatic or Solid Rubber.; Standard universal chime hook is spring-loaded with a hands-free connection.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 40. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
