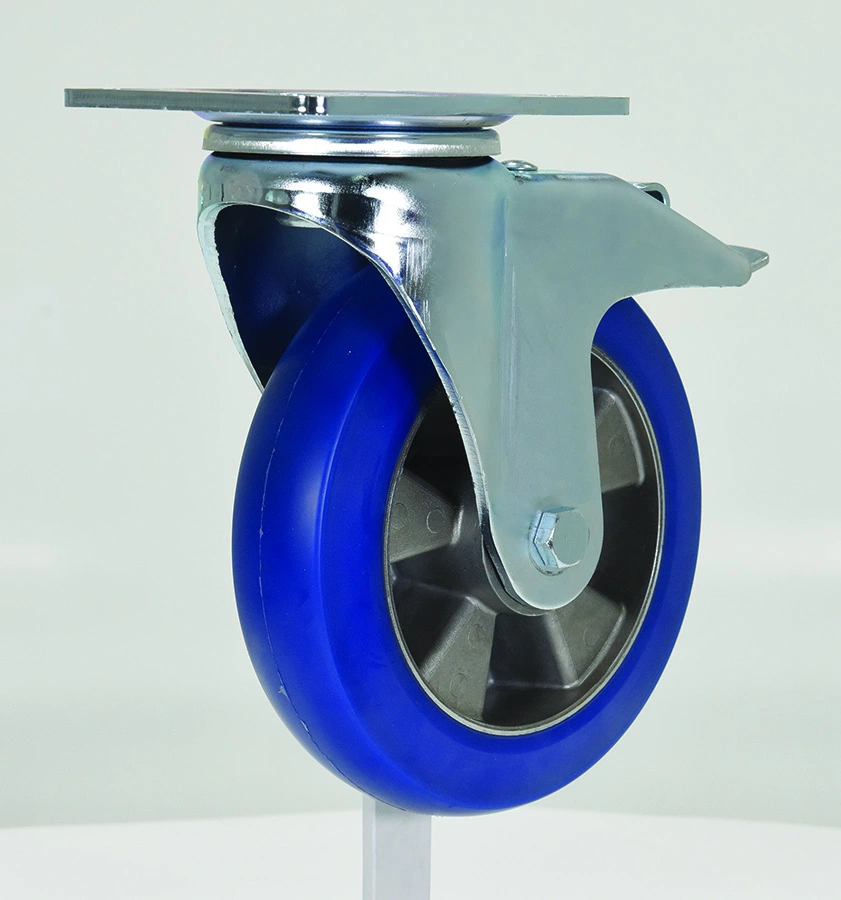

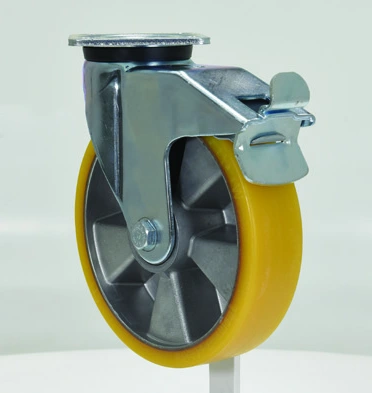

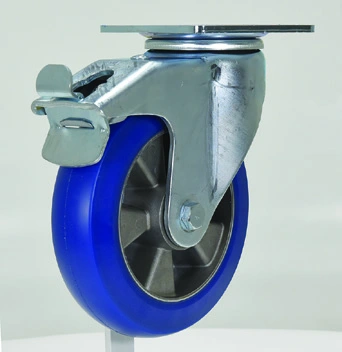

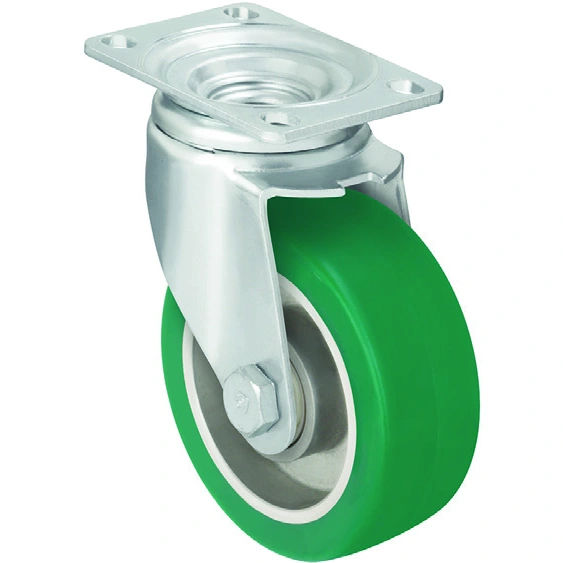

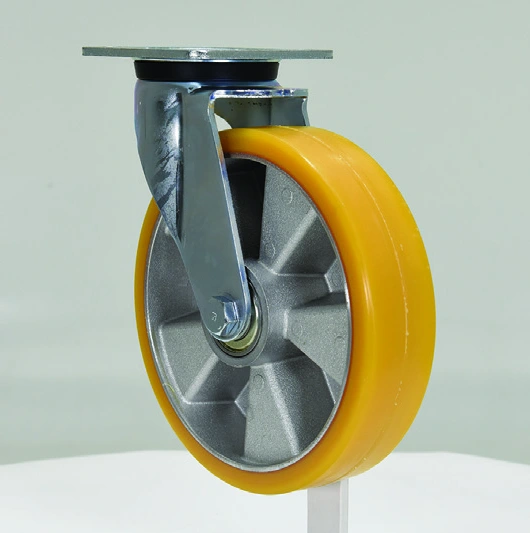

High Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment view

Open an image to inspect its original detail.

High Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment viewHigh Quality Non-Marking Polyurethane-Elastomer Casters catalog equipment view

Specifications & options

MODEL NUMBERCASTER SIZECAPACITYOVERALL HEIGHTCASTER WHEEL BEARINGCASTER RACEWAYWEIGHT (POUND)
CST-AL-4X2SO-S4" x 1 9/16"400 lb.5 1/8"Precision BallDouble Ball2.2
CST-AL-5X2SO-S5" x 1 9/16"400 lb.6 1/8"Precision BallDouble Ball3.9
CST-AL-4X2SO-R4" x 1 9/16"400 lb.5 1/8"Precision Ball--1.9
CST-AL-5X2SO-R5" x 1 9/16"400 lb.6 1/8"Precision Ball--2.25
CST-AL-4X2SO-SWTB4" x 1 9/16"400 lb.5 1/8"Precision BallDouble Ball2.5
CST-AL-5X2SO-SWTB5" x 1 9/16"400 lb.6 1/8"Precision BallDouble Ball2.95
MODEL NUMBERCASTER SIZECAPACITYOVERALL HEIGHTCASTER WHEEL BEARINGCASTER RACEWAYWEIGHT (POUND)
CST-ALH-5X2EX-S5" x 1 9/16"770 lb.6 1/2"Precision BallDouble Ball4.75
CST-ALH-6X2EX-S6" x 2"1,100 lb.7 3/4"Precision BallDouble Ball7.89
CST-ALEH-6X2EX-S6" x 2"1,100 lb.7 1/2"Precision BallDouble Ball5.04
CST-ALEH-8X2EX-S8" x 2"1,250 lb.9½"Precision BallDouble Ball6.26
CST-ALH-5X2EX-R5" x 1 9/16"770 lb.6 1/2"Precision Ball--4.40
CST-ALH-6X2EX-R6" x 2"1,100 lb.7 3/4"Precision Ball--5.85
CST-ALEH-6X2EX-R6" x 2"1,100 lb.7 1/2"Precision Ball-4.18
CST-ALEH-8X2EX-R8" x 2"1,250 lb.9½"Precision Ball--6.40
CST-ALH-5X2EX-SWTB5" x 1 9/16"770 lb.6 1/2"Precision BallDouble Ball5.50
CST-ALH-6X2EX-SWTB6" x 2"1,100 lb.7 3/4"Precision BallDouble Ball8.50
CST-ALEH-6X2EX-SWTB6" x 2"1,100 lb.7 1/2"Precision BallDouble Ball6.17
CST-ALEH-8X2EX-SWTB8" x 2"1,250 lb.9½"Precision BallDouble Ball7.53
MODEL NUMBERCASTER SIZECAPACITYOVERALL HEIGHTCASTER WHEEL BEARINGCASTER RACEWAYWEIGHT (POUND)
CST-ALH-6X2BESO-S6" x 2"1,100 lb.7¾"Precision BallDouble Ball8.30
CST-ALH-8X2BESO-S8" x 2"1,540 lb.9 5/8"Precision BallDouble Ball9.45
CST-ALH-6X2BESO-R6" x 2"1,100 lb.7¾"Precision Ball--6.30
CST-ALH-8X2BESO-R8" x 2"1,540 lb.9 5/8"Precision Ball--7.40
CST-ALH-6X2BESO-SWTB6" x 2"1,100 lb.7¾"Precision BallDouble Ball9.67
CST-ALH-8X2BESO-SWTB8" x 2"1,540 lb.9 5/8"Precision BallDouble Ball11.0
Caster Size4" x 1 9/16"; 5" x 1 9/16"; 6" x 2"; 8" x 2"
Capacity400 lb.; 770 lb.; 1,100 lb.; 1,250 lb.; 1,540 lb.
Overall Height5 1/8"; 6 1/8"; 6 1/2"; 7 3/4"; 7 1/2"; 9½"; 7¾"; 9 5/8"
Caster Wheel BearingPrecision Ball
Caster RacewayDouble Ball; --; -

Source: 2018 catalog, pages 427, 429, 431. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.

The catalog lists CST-AL-4X2SO-S through CST-ALH-8X2BESO-SWTB within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Caster Size: 4" x 1 9/16"; 5" x 1 9/16"; 6" x 2"; 8" x 2"; Capacity: 400 lb.; 770 lb.; 1,100 lb.; 1,250 lb.; 1,540 lb.. These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, pages 427, 429, 431. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for high quality non-marking polyurethane-elastomer casters?

The catalog records 24 model references for this family. The first listed model is CST-AL-4X2SO-S. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right high quality non-marking polyurethane-elastomer casters configuration?

Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
