Specifications & options
| Standard section references | 1.29 m × 1.29 m or 1.83 m × 1.83 m |
|---|---|
| Listed minimum access opening | 0.36 m × 0.36 m |
| Standard platform width | 0.56 m |
| Platform length options | 1.29 m or 1.83 m |
| Special platform pieces | Two connected pieces, each 0.28 m wide |
Source: Upright Scaffold product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

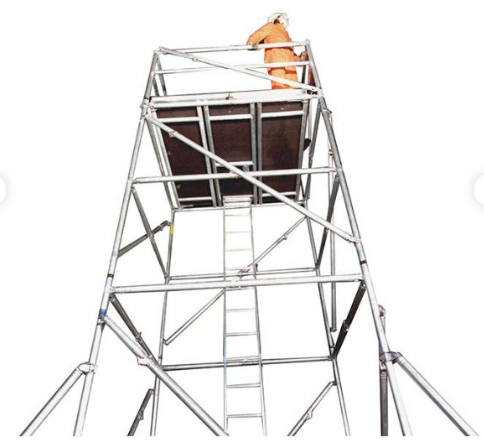

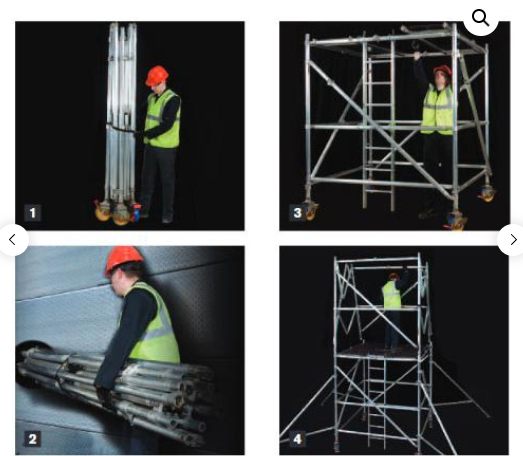

Instant Snap-Out uses folding scaffold sections to address transport through restricted openings into enclosed work areas. Review the complete entry route and internal work zone before requesting a configuration.
The listed 0.36 m × 0.36 m opening is a source reference, not a guarantee that every module will pass through any hatch of that size. Check the hatch shape, obstructions and handling clearance alongside the selected section dimensions.
Standard platforms are listed at 0.56 m wide. The special twin arrangement uses two connected pieces, each 0.28 m wide, with the listed platform lengths. Ask for the complete component schedule and current configuration instructions.
No maximum scaffold height, complete load rating or confined-space certification is established by these dimensions. Entry procedures and site requirements must be reviewed separately from the equipment configuration.
Documentation & drawings
Manufacturer reference: Upright Scaffold Snap-Out reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which Snap-Out dimensions are documented?
The source lists 1.29 m × 1.29 m and 1.83 m × 1.83 m section references, a 0.36 m × 0.36 m minimum opening reference and 1.29 m or 1.83 m platform lengths. Confirm how each dimension applies to the selected configuration.
Does compact access establish confined-space suitability?
No. The equipment fit and the site’s entry requirements are separate decisions. Request current instructions and have the responsible team review the complete work area.
What should I include in a boiler scaffold quote?
Include hatch dimensions, the full entry route, internal geometry, desired platform position, quantities and delivery location.
