| Model / reference | Configuration | Rungs | Length from top to bottom rung |
|---|---|---|---|
| WLFS0111-Y | Uncaged / Standard | 11 | 10’ |
| WLFS0211-Y | Uncaged / Walk-through | 11 | 10’ |
| Documented model configurations | 2 |
|---|---|
| Rungs | 11 |
| Length from top to bottom rung | 10’ |
Source: 2026 ladder and access catalog, PDF page 41. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

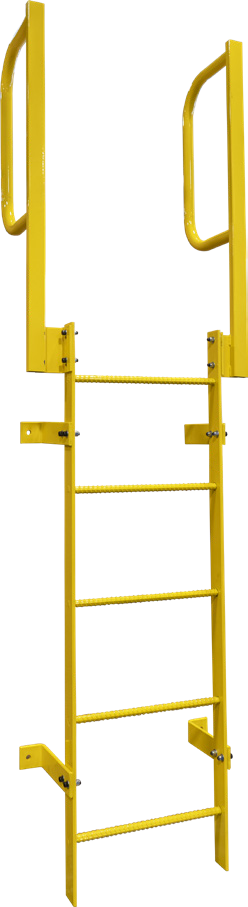

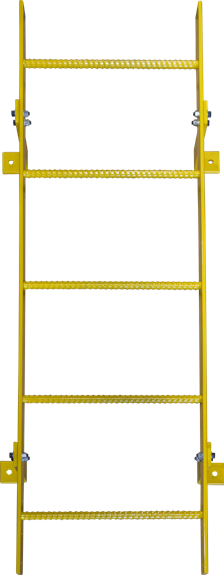

Fixed Steel Access Ladders — 10-Foot Rung Length is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Side rail 2 - 1/2” x 3/8” flat bar; Solid round 3/4” rungs; 12” spacing between rungs; 18” ladder width; 42” guardrails on walk-thru models; Powder-coat yellow finish; Ships in components for freight savings.
Model and option notes: FIXED LADDER ACCESS RESTRICTION OPTIONS; Guard Door closes of fentry onto a fxied ladder. Cage Door closes of fentry at bottom of cage..
Reference: 2026 ladder and access catalog, PDF page 41. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 04-03-0001
Cotterman Fixed Ladder F Series – Fully Assembled. Number Of Step Rungs: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 2…
SKU 04-01-0001
Steel fixed access ladder without rail extensions. Review the existing listed dimensions and request current model and mounting confirmation.
Equipment details
Fixed Steel Access Ladders. Documented model configurations: 72.
