Open an image to inspect its original detail.

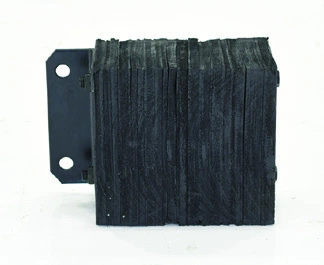

| TYPE | 4.5" PROJECTION LAMINATED DOCK BUMPERS MODEL NUMBER | DIMENSIONS (H x W x P) | NO. OF HOLES | WEIGHT (POUND) | TYPE | 6" PROJECTION LAMINATED DOCK BUMPERS MODEL NUMBER | DIMENSIONS (H x W x P) | NO. OF HOLES | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|---|---|
| A | 1012-4.5 | 10" x 12" x 4½" | 4 | 22 | A | 1012-6 | 10" x 12" x 6" | 4 | 24 |
| A | 1014-4.5 | 10" x 14" x 4½" | 4 | 25 | A | 1014-6 | 10" x 14" x 6" | 4 | 34 |
| A | 1018-4.5 | 10" x 18" x 4½" | 4 | 36 | A | 1018-6 | 10" x 18" x 6" | 4 | 43 |
| A | 1024-4.5 | 10" x 24" x 4½" | 4 | 45 | A | 1024-6 | 10" x 24" x 6" | 4 | 58 |
| A | 1030-4.5 | 10" x 30" x 4½" | 4 | 60 | A | 1030-6 | 10" x 30" x 6" | 4 | 64 |
| A | 1036-4.5 | 10" x 36" x 4½" | 4 | 68 | A | 1036-6 | 10" x 36" x 6" | 4 | 89 |
| A | 1096-4.5 | 10" x 96" x 4½" | 4 | 191 | A | 1212-6 | 12" x 12" x 6" | 4 | 31 |
| A | 1212-4.5 | 12" x 12" x 4½" | 4 | 24 | A | 1214-6 | 12" x 14" x 6" | 4 | 39 |
| A | 1214-4.5 | 12" x 14" x 4½" | 4 | 31 | A | 1218-6 | 12" x 18" x 6" | 4 | 51 |
| A | 1218-4.5 | 12" x 18" x 4½" | 4 | 41 | A | 1224-6 | 12" x 24" x 6" | 4 | 67 |
| A | 1224-4.5 | 12" x 24" x 4½" | 4 | 56 | A | 1230-6 | 12" x 30" x 6" | 4 | 73 |
| A | 1230-4.5 | 12" x 30" x 4½" | 4 | 69 | A | 1236-6 | 12" x 36" x 6" | 4 | 94 |
| A | 1236-4.5 | 12" x 36" x 4½" | 4 | 88 | A | 1296-6 | 12" x 96" x 6" | 4 | 316 |

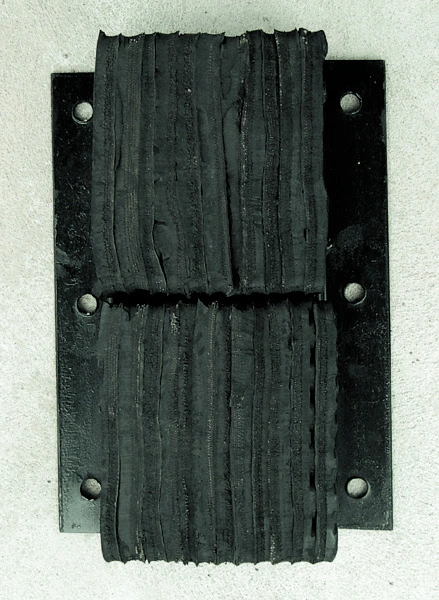

| A | 1296-4.5 | 12" x 96" x 4½" | 4 | 215 | B | V-1120-6 | 20" x 11" x 6" | 6 | 50 |
| A | 624-4.5 | 6" x 24" x 4½" | 4 | 26 | B | V-1124-6 | 24" x 11" x 6" | 6 | 61 |
| A | 636-4.5 | 6" x 36" x 4½" | 4 | 45 | B | V-1130-6 | 30" x 11" x 6" | 8 | 113 |
| C | 1014-4.5F | 10" x 14 1/8" x 4½" | 2 | 32 | B | V-1136-6 | 36" x 11" x 6" | 8 | 134 |
| C | 1214-4.5F | 12" x 14 1/8" x 4½" | 2 | 32 | |||||
| B | V-1120-4.5 | 20" x 11" x 4½" | 6 | 41 | |||||
| V-1124-4.5 |
| TYPE | 4.5" PROJECTION LAMINATED DOCK BUMPERS MODEL NUMBER | DIMENSIONS (H x W x P) | NO. OF HOLES | WEIGHT (POUND) | TYPE | 6" PROJECTION LAMINATED DOCK BUMPERS MODEL NUMBER | DIMENSIONS (H x W x P) | NO. OF HOLES | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|---|---|
| A | 1012-4.5 | 10" x 12" x 4½" | 4 | 22 | A | 1012-6 | 10" x 12" x 6" | 4 | 24 |
| A | 1014-4.5 | 10" x 14" x 4½" | 4 | 25 | A | 1014-6 | 10" x 14" x 6" | 4 | 34 |
| A | 1018-4.5 | 10" x 18" x 4½" | 4 | 36 | A | 1018-6 | 10" x 18" x 6" | 4 | 43 |
| A | 1024-4.5 | 10" x 24" x 4½" | 4 | 45 | A | 1024-6 | 10" x 24" x 6" | 4 | 58 |
| A | 1030-4.5 | 10" x 30" x 4½" | 4 | 60 | A | 1030-6 | 10" x 30" x 6" | 4 | 64 |
| A | 1036-4.5 | 10" x 36" x 4½" | 4 | 68 | A | 1036-6 | 10" x 36" x 6" | 4 | 89 |
| A | 1096-4.5 * | 10" x 96" x 4½" | 4 | 191 | A | 1212-6 | 12" x 12" x 6" | 4 | 31 |
| A | 1212-4.5 | 12" x 12" x 4½" | 4 | 24 | A | 1214-6 | 12" x 14" x 6" | 4 | 39 |
| A | 1214-4.5 | 12" x 14" x 4½" | 4 | 31 | A | 1218-6 | 12" x 18" x 6" | 4 | 51 |
| A | 1218-4.5 | 12" x 18" x 4½" | 4 | 41 | A | 1224-6 | 12" x 24" x 6" | 4 | 67 |
| A | 1224-4.5 | 12" x 24" x 4½" | 4 | 56 | A | 1230-6 | 12" x 30" x 6" | 4 | 73 |
| A | 1230-4.5 | 12" x 30" x 4½" | 4 | 69 | A | 1236-6 | 12" x 36" x 6" | 4 | 94 |
| A | 1236-4.5 | 12" x 36" x 4½" | 4 | 88 | A | 1296-6 | 12" x 96" x 6" | 4 | 316 |
| A | 1296-4.5 * | 12" x 96" x 4½" | 4 | 215 | B | V-1120-6 | 20" x 11" x 6" | 6 | 50 |
| A | 624-4.5 | 6" x 24" x 4½" | 4 | 26 | B | V-1124-6 | 24" x 11" x 6" | 6 | 61 |
| A | 636-4.5 | 6" x 36" x 4½" | 4 | 45 | B | V-1130-6 | 30" x 11" x 6" | 8 | 113 |
| C | 1014-4.5F | 10" x 14 1/8" x 4½" | 2 | 32 | B | V-1136-6 | 36" x 11" x 6" | 8 | 134 |
| MODEL NUMBER | ANCHOR BOLTS HARDWARE FOR CONCRETE INSTALLATION | QUANTITY AND SIZE | WEIGHT (POUND) |
|---|---|---|---|
| AS-344 | (1) 3/4" x 4" | 1 | |
| AS-344-4PK | (4) 3/4" x 4" | 4 |
| Type | A; B; C |
|---|---|
| No. Of Holes | 4; 2; 6; 8 |
| Quantity And Size | (1) 3/4" x 4"; (4) 3/4" x 4" |
Source: 2018 catalog, page 44. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists 1012-4.5 through AS-344-4PK within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Type: A; B; C; No. Of Holes: 4; 2; 6; 8. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 44. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 39 model references for this family. The first listed model is 1012-4.5. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
