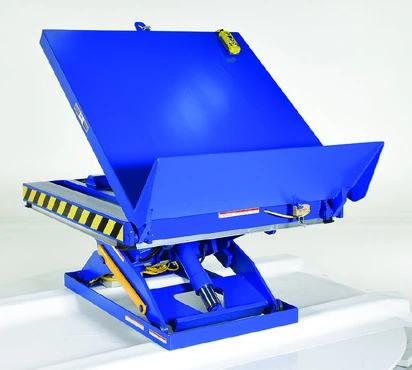

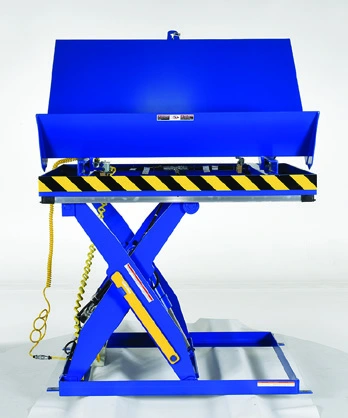

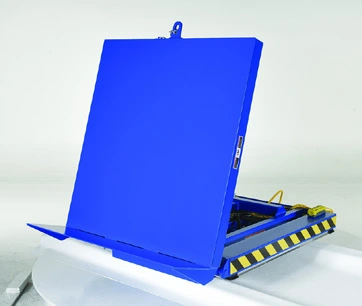

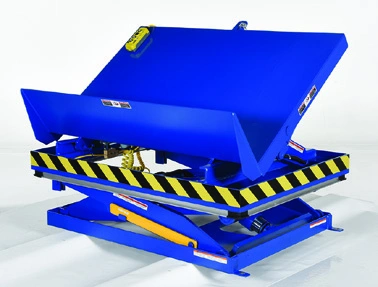

Lift & Tilt Scissor Tables catalog equipment view

Open an image to inspect its original detail.

Lift & Tilt Scissor Tables catalog equipment viewLift & Tilt Scissor Tables catalog equipment viewLift & Tilt Scissor Tables catalog equipment viewLift & Tilt Scissor Tables catalog equipment view

Specifications & options

MODEL NUMBERPLATFORM SIZE (W x L)UNIFORM CAPACITYRAISED HEIGHTLOWERED HEIGHTOVERALL SIZE (W x L)WEIGHT (POUND)
EHLTT-3648-1-4736" x 48"1,000 lb.47"11"36" x 56"1208
EHLTT-4848-1-4748" x 48"1,000 lb.47"11"48" x 56"1228
EHLTT-3648-2-4736" x 48"2,000 lb.47"11"36" x 56"1204
EHLTT-4848-2-4748" x 48"2,000 lb.47"11"48" x 56"1235
EHLTT-3648-3-4736" x 48"3,000 lb.47"11"36" x 56"1299
EHLTT-4848-3-4748" x 48"3,000 lb.47"11"48" x 56"1251
EHLTT-3648-4-4736" x 48"4,000 lb.47"11"36" x 56"1206
EHLTT-4848-4-4748" x 48"4,000 lb.47"11"48" x 56"1282
EHLTT-4848-5-4748" x 48"5,000 lb.49"13"48" x 56"1482
EHLTTS-3654-2-4836" x 54"2,000 lb.48"12"38" x 54"1238
EHLTTS-3654-4-4836" x 54"4,000 lb.48"12"38" x 54"1500
EHLTT-H-3648-2-4736" x 48"2,000 lb.47"11¼"36" x 53"1179
EHLTT-H-4848-2-4748" x 48"2,000 lb.47"11¼"48" x 53"1268
MODEL NUMBERDESCRIPTIONWEIGHT (POUND)
FC-4FOUR PEDAL FOOT CONTROL (LIFT & TILT PRODUCTS)6
Platform Size (W X L)36" x 48"; 48" x 48"; 36" x 54"
Uniform Capacity1,000 lb.; 2,000 lb.; 3,000 lb.; 4,000 lb.; 5,000 lb.
Raised Height47"; 49"; 48"
Lowered Height11"; 13"; 12"; 11¼"
Overall Size (W X L)36" x 56"; 48" x 56"; 38" x 54"; 36" x 53"; 48" x 53"

Source: 2018 catalog, page 100. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

The catalog lists EHLTT-3648-1-47 through FC-4 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Platform Size (W X L): 36" x 48"; 48" x 48"; 36" x 54"; Uniform Capacity: 1,000 lb.; 2,000 lb.; 3,000 lb.; 4,000 lb.; 5,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.

The catalog entry describes push-button controls. Check the configuration table and quote details to establish which features apply to your selection.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 100. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for lift & tilt scissor tables?

The catalog records 14 model references for this family. The first listed model is EHLTT-3648-1-47. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right lift & tilt scissor tables configuration?

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
