| MODEL NUMBER | DESCRIPTION | PLATFORM SIZE (W x L) | SERVICE RANGE | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|
| LLW-202058-FW** | WINCH | 20" x 20" | 3 1/8" to 58" | 500 lb. | 107 |
| LLW-242060-4SFL | WINCH | 24" x 20" | 6 1/8" to 60" | 500 lb. | 198 |
| LLH-202053-FW** | FOOT PUMP | 20" x 20" | 3 1/8" to 51 1/8" | 500 lb. | 180 |
| LLH-242056-4SFL | FOOT PUMP | 24" x 20" | 6 1/8" to 54 1/8" | 500 lb. | 228 |
| ALLW-2020-FW | WINCH | 20" x 20" | 3 1/8" to 58" | 400 lb. | 67 |
| ALLW-2420-4SFL | WINCH | 24" x 20" | 6 1/8" to 60" | 400 lb. | 141 |
| ALLH-2020-FW | FOOT PUMP | 20" x 20" | 3 1/8" to 51 1/8" | 400 lb. | 135 |
| ALLH-2420-4SFL | FOOT PUMP | 24" x 20" | 6 1/8" to 54 1/8" | 400 lb. | 172 |
| LLPW-500-FW | WINCH | 20" x 20" | ¼" to 55" | 500 lb. | 134 |
| LLPW-500-4SFL | WINCH | 20" x 20" | ¼" to 58" | 500 lb. | 222 |
| LLPH-500-FW | FOOT PUMP | 20" x 20" | ¼" to 48¼" | 500 lb. | 205 |
| LLPH-500-4SFL | FOOT PUMP | 20" x 20" | ¼" to 48¼" | 500 lb. | 249 |
| ALLPW-500-FW | WINCH | 20" x 20" | ¼" to 55" | 400 lb. | 103 |
| ALLPW-500-4SFL | WINCH | 20" x 20" | ¼" to 58" | 400 lb. | 143 |
| ALLPH-500-FW | FOOT PUMP | 20" x 20" | ¼" to 48¼" | 400 lb. | 141 |
| ALLPH-500-4SFL | FOOT PUMP | 20" x 20" | ¼" to 48¼" | 400 lb. | 172 |
| MODEL NUMBER | DESCRIPTION | PLATFORM SIZE (W x L) | SERVICE RANGE | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|

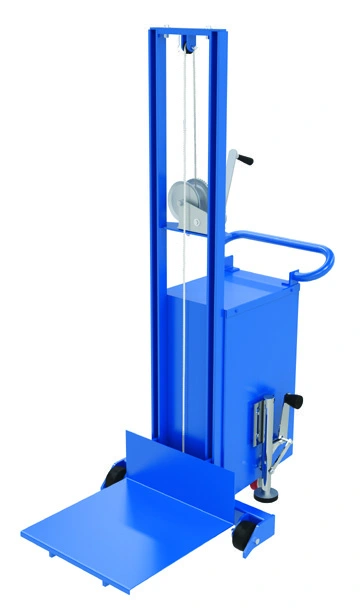

| LLCB-202058 | WINCH | 20" x 20" | 3 1/8" to 59" | 300 lb. | 540 |
| Platform Size (W X L) | 20" x 20"; 24" x 20" |
|---|---|
| Service Range | 3 1/8" to 58"; 6 1/8" to 60"; 3 1/8" to 51 1/8"; 6 1/8" to 54 1/8"; ¼" to 55"; ¼" to 58"; ¼" to 48¼"; 3 1/8" to 59" |
| Uniform Capacity | 500 lb.; 400 lb.; 300 lb. |
Source: 2018 catalog, page 121. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists LLW-202058-FW through LLW-WL within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 20" x 20"; 24" x 20"; Service Range: 3 1/8" to 58"; 6 1/8" to 60"; 3 1/8" to 51 1/8"; 6 1/8" to 54 1/8"; ¼" to 55"; ¼" to 58"; ¼" to 48¼"; 3 1/8" to 59". These values cover multiple models; consult the individual row for the model being quoted.

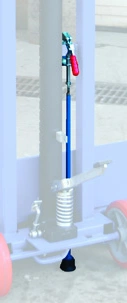

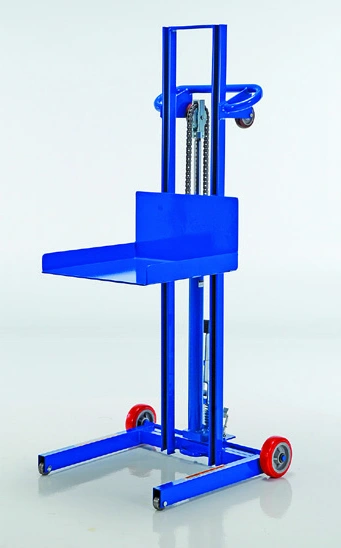

The catalog entry describes foot-pump actuation, hand-winch lifting, floor-lock positioning. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 121. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 18 model references for this family. The first listed model is LLW-202058-FW. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
