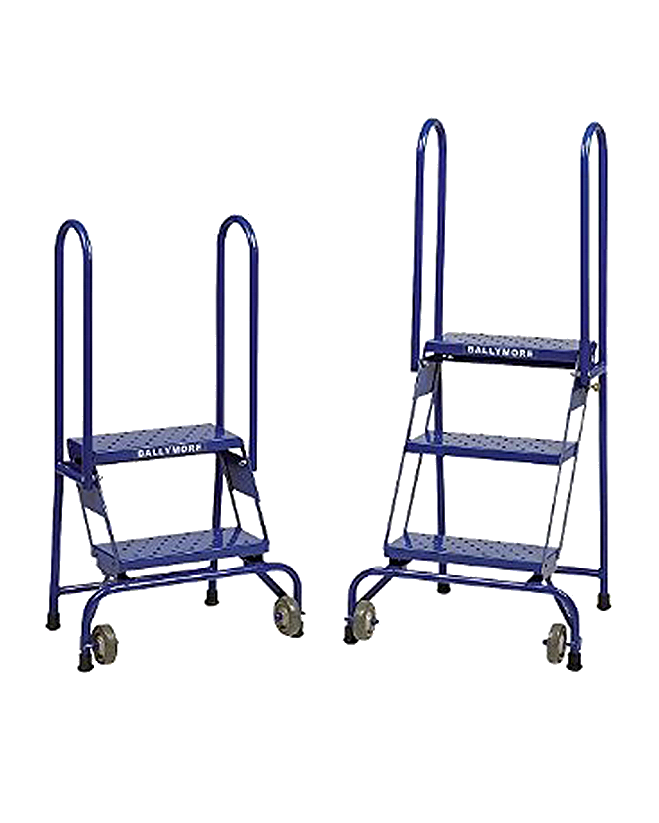

Ballymore manufacturer image listed for LS3247. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
| Model / reference | STEPS INCLUDING TOP STEP | TOP STEP HEIGHT | WEIGHT LBS. | OPEN WIDTH & LENGTH | FOLDED SIZE | SHIPS UPS (Oversize) |
|---|---|---|---|---|---|---|
| LS2247 | 2 STEP | 19” | 36 lbs. | 24 x 17 | 10 x 24 x 41 | YES |
| LS3247 | 3 STEP | 28.5” | 44 lbs. | 24 x 23 | 10 x 24 x 52 | YES |
| LS4247 | 4 STEP | 38” | 51 lbs. | 24 x 30 | 10 x 24 x 65 | YES |
| LS32410 | 3 STEP | 28.5” | 46 lbs. | 24 x 28 | 14 x 24 x 62 | YES |
| LS42410 | 4 STEP | 38” | 52 lbs. | 24 x 35 | 14 x 24 x 73 | YES |
| ALS3247 | 3 STEP | 28.5” | 23 lbs. | 24 x 23 | 10 x 24 x 52 | YES |
| ALS4247 | 4 STEP | 38” | 28 lbs. | 24 x 30 | 10 x 24 x 65 | YES |
| ALS32410 | 3 STEP | 28.5” | 26 lbs. | 24 x 28 | 14 x 24 x 62 | YES |
| ALSS42410 | 4 STEP | 38” | 31 lbs. | 24 x 35 | 14 x 24 x 73 | YES |
| Documented model configurations | 9 |
|---|---|
| SHIPS UPS (Oversize) | YES |
Source: 2026 ladder and access catalog, PDF page 11. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Folding Ladder Stands — Lock-N-Stock is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Less than 4” thick when folded; Ships via UPS in a box to eliminate freight damage; Rolls easily in the open or closed position; 50° slope for easy climbing; Standard finish is powder coat blue; Heavy duty rated for 350 lbs.; Welded construction; Easy to maneuver in the open or closed positions; Locks in the folded or climbing position.
Model and option notes: LS32410* 3 STEP 28.5” 46 lbs. 24 x 28 14 x 24 x 62 YES; LS42410* 4 STEP 38” 52 lbs. 24 x 35 14 x 24 x 73 YES.
Reference: 2026 ladder and access catalog, PDF page 11. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 691215070782
Vestil Steel Folding Ladder with Wheels 4 Step 350 Lb. Capacity Blue FLAD-4. Material: Carbon Steel; Color: Blue; Assembly: Assembled. Review the equi…
SKU G7222345
4 Steps, 40″ high Steel Folding Rolling Ladder, 350 lb. Load Capacity. Load Capacity: 350 lb.; Platform Height: 40″; Overall Height: 70″. Review the e…
SKU G7197617

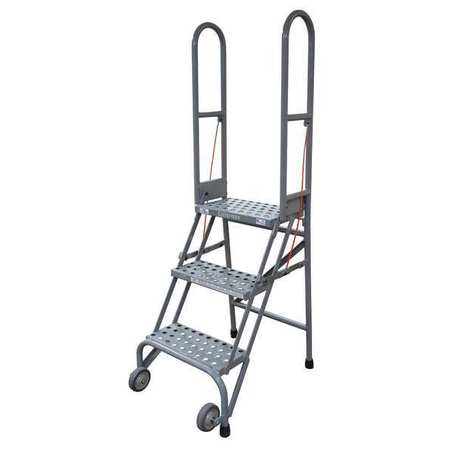

4 Steps, 40″ high Steel Folding Rolling Ladder, 350 lb. Load Capacity. Load Capacity: 350 lb.; Platform Height: 40″; Overall Height: 70″. Review the e…
