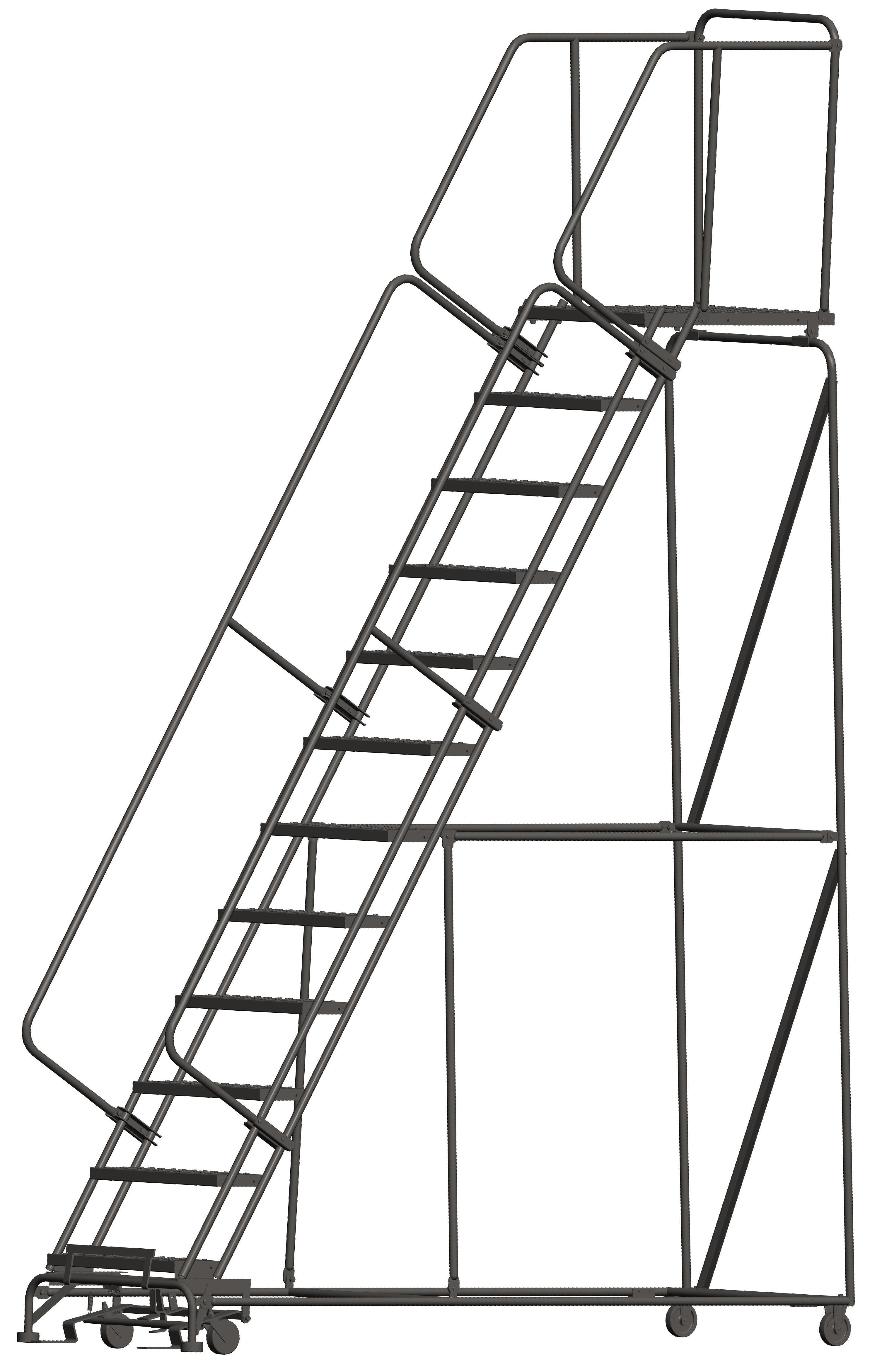

Ballymore 123228P manufacturer configuration image

Ballymore manufacturer image listed for 123228P. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Model / referenceCatalog configurationSTEPS INCLUDING TOP STEPHEIGHT INCHES / TOP STEPHEIGHT INCHES / OVER ALL21” DEEP TOP STEP / BASE W” x L”21” DEEP TOP STEP / WGT Lbs.28” DEEP TOP STEP / BASE W” x L”28” DEEP TOP STEP / WGT Lbs.
05242828” DEEP TOP STEP5 STEP50”83”24 x 5010224 x 57113
06242828” DEEP TOP STEP6 STEP60”93”24 x 5611124 x 63122
07242828” DEEP TOP STEP7 STEP70”103”24 x 6212024 x 69131
08242828” DEEP TOP STEP8 STEP80”113”24 x 6813824 x 75149
05322828” DEEP TOP STEP5 STEP50”83”32 x 5012132 x 57132
06322828” DEEP TOP STEP6 STEP60”93”32 x 5613332 x 63144
07322828” DEEP TOP STEP7 STEP70”103”32 x 6215432 x 69165
08322828” DEEP TOP STEP8 STEP80”113”32 x 6817132 x 75182
09322828” DEEP TOP STEP9 STEP90”123”32 x 7518632 x 82197
10322828” DEEP TOP STEP10 STEP100”133”32 x 8120432 x 88215
11322828” DEEP TOP STEP11 STEP110”143”32 x 8721632 x 94227
12322828” DEEP TOP STEP12 STEP120”153”32 x 9423132 x 101242
13402828” DEEP TOP STEP13 STEP*130”175”40 x 10126140 x 108272
14402828” DEEP TOP STEP14 STEP*140”185”40 x 10729140 x 115302
15402828” DEEP TOP STEP15 STEP*150”195”40 x 11332140 x 120332
Documented model configurations15
Catalog configuration28” DEEP TOP STEP
Catalog feature / option30 high handrails
Catalog feature / option450 LB. CAPACITY

Source: 2026 ladder and access catalog, PDF page 13. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

28-Inch Deep-Top-Step Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 30 high handrails; 21” & 28” deep top step available (see below); Available with rear guard rail removed for walk through; Gray powder coat finish; 450 LB. CAPACITY; All features of the standard M-2000 line with a 21” or 28” Deep Top Step to provide a larger and more comfortable work space; Available with rear guardrail removed for walk through; Side exit available on 28” deep top step models 21” or 28”.

Model and option notes: 24” WIDE STEP WITH 32” - 40” WIDE BASE; 134014 13 STEP* 130” 175” 40 x 94 250; 144014 14 STEP* 140” 185” 40 x 100 280; 154014 15 STEP* 150” 195” 40 x 106 310; 13 STEP* 130” 175” 134021 40 x 101 261 134028 40 x 108 272; 14 STEP* 140” 185” 144021 40 x 107 291 144028 40 x 115 302; 15 STEP* 150” 195” 154021 40 x 113 321 154028 40 x 120 332; * Must be Skidded; AVAILABLE TREAD TYPE OPTIONS:.

Documentation & drawings

Reference: 2026 ladder and access catalog, PDF page 13. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

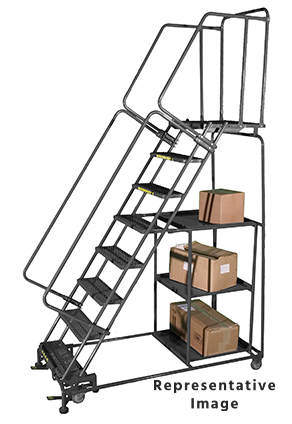

More in Stock Picking Rolling Ladders
