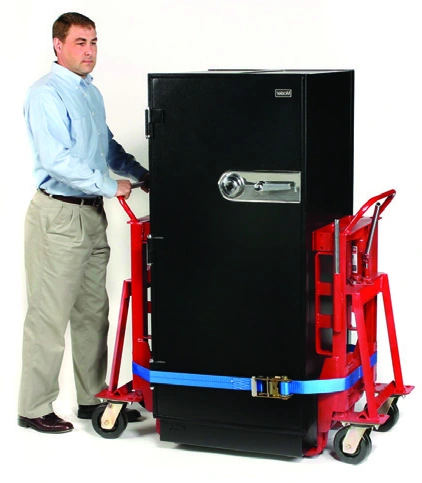

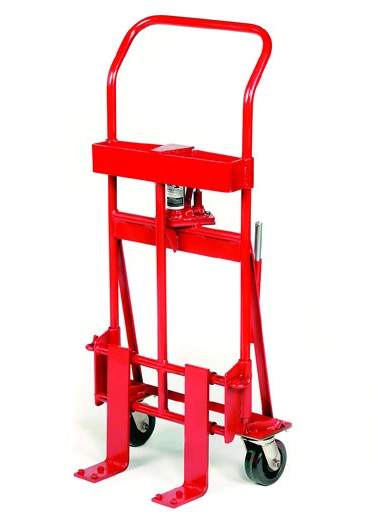

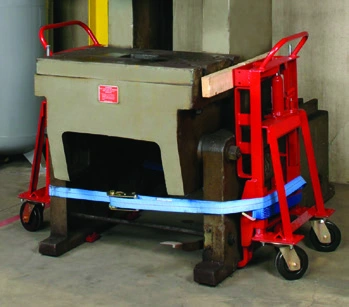

Machinery Lifts catalog equipment view

Open an image to inspect its original detail.

Machinery Lifts catalog equipment viewMachinery Lifts catalog equipment viewMachinery Lifts catalog equipment view

Specifications & options

MODEL NUMBERFORKS ADJUSTABLEFORK LENGTHUNIFORM CAPACITYOVERALL SIZE (W x D x H)WEIGHT (POUND)
MFM-2-RAL7¼" to 17½"5"2,000 lb.22" x 12½" x 47½"160
MFM-4-RAL5" to 19½"6"4,000 lb.23" x 16½" x 44"325
MFM-6-RAL6" to 19½"6"6,000 lb.23" x 16¾" x 42½"335
MFM-8-RAL7¼" to 19½"6"8,000 lb.23" x 17¼" x 45½"400
MFM-10-RAL9¼" to 19½"6"10,000 lb.24" x 18" x 45½"438
MFM-12-RAL9¼" to 19½"6"12,000 lb.24" x 18" x 45½"470
MFM-BELT-12Belt with triangle hood ends, 12 foot long10
MFM-BELT-16Belt with triangle hood ends, 16 foot long12
MFM-BELT-20Belt with triangle hood ends, 20 foot long14
Forks Adjustable7¼" to 17½"; 5" to 19½"; 6" to 19½"; 7¼" to 19½"; 9¼" to 19½"
Fork Length5"; 6"
Overall Size (W X D X H)22" x 12½" x 47½"; 23" x 16½" x 44"; 23" x 16¾" x 42½"; 23" x 17¼" x 45½"; 24" x 18" x 45½"

Source: 2018 catalog, page 371. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists MFM-2-RAL through MFM-BELT-20 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Forks Adjustable: 7¼" to 17½"; 5" to 19½"; 6" to 19½"; 7¼" to 19½"; 9¼" to 19½"; Fork Length: 5"; 6". These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 371. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for machinery lifts?

The catalog records 9 model references for this family. The first listed model is MFM-2-RAL. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right machinery lifts configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
