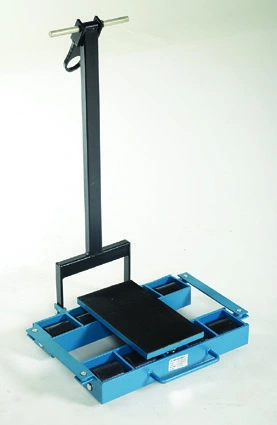

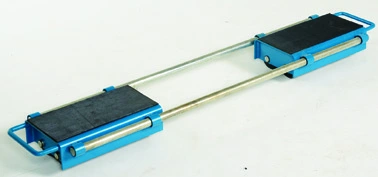

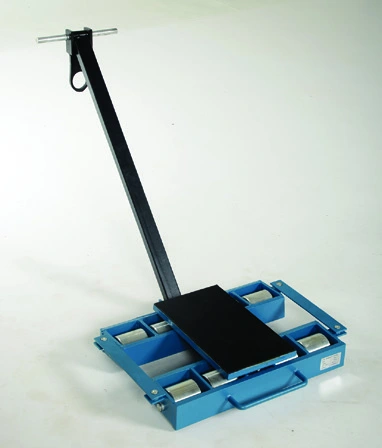

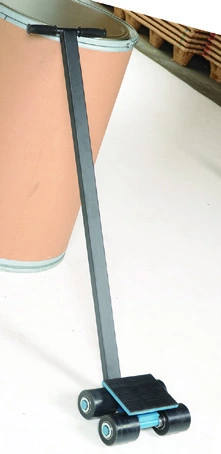

Machinery Skates catalog equipment view

Open an image to inspect its original detail.

Machinery Skates catalog equipment viewMachinery Skates catalog equipment viewMachinery Skates catalog equipment viewMachinery Skates catalog equipment viewMachinery Skates catalog equipment viewMachinery Skates catalog equipment viewMachinery Skates catalog equipment view

Specifications & options

MODEL NUMBERROLLER MATERIALNUMBER OF ROLLERSOVERALL SIZE (W x D x H)STATIC CAPACITYWEIGHT (POUND)
FMS-2.5NYLON210¾" x 4¾" x 4"2.5 tons10
FMS-3NYLON415¾" x 8" x 3¾"3 tons22
FMS-6NYLON616¼" x 8½" x 4"6 tons28
ASKT-6NYLON8 1213/16" x 10½" x 4 3/8" 6 tons72
ASKT-12NYLON1216½" x 10½" x 4½"12 tons130
ASKT-24STEEL1619 9/16" x 11 5/16" x 4½"24 tons173
SSKT-3NYLON411½" x 8½" x 47"3 tons32
SSKT-6NYLON821" x 25" x 46"6 tons114
SSKT-12STEEL821½" x 25" x 46"12 tons202
Roller MaterialNYLON; STEEL
Number Of Rollers2; 4; 6; 8 12; 12; 16; 8
Static Capacity2.5 tons; 3 tons; 6 tons; " 6 tons; 12 tons; 24 tons

Source: 2018 catalog, page 372. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists FMS-2.5 through SSKT-12 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Roller Material: NYLON; STEEL; Number Of Rollers: 2; 4; 6; 8 12; 12; 16; 8. These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 372. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for machinery skates?

The catalog records 9 model references for this family. The first listed model is FMS-2.5. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right machinery skates configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
