Open an image to inspect its original detail.
| MODEL NUMBER | FORK LENGTH | SERVICE RANGE | UNIFORM CAPACITY | OVERALL SIZE (W x L x H) | WEIGHT (POUND) |
|---|---|---|---|---|---|
| VWS-770-AA | 30" | 1 9/16" to 59" | 770 lb. | 48" x 44" x 78" | 361 |
| VWS-770-FF | 30" | 3 3/8" to 59" | 770 lb. | 24 1/2" x 48" x 77 1/2 | " 235 |
| VHPS-2000-AA | 42 1/8" | 2" to 63" | 2,000 lb. | 54" x 62" x 79" | 860 |
| VHPS-2000-AA-17 | 42 1/8" | 3" to 17" | 2,000 lb. | 60½" x 48" x 41" | 490 |
| VHPS-2000-AA-35 | 42 1/8" | 3" to 35" | 2,000 lb. | 60½" x 48" x 55" | 650 |
| VHPS-2000-AA-118 | 42 1/8" | 2 1/8" to 118" | 2,000 lb. | 54" x 62" x 79" | 900 |
| VHPS-3000-AA-17 | 42 1/8" | 2" to 17" | 3,000 lb. | 60¼" x 48" x 41" | 570 |
| VHPS-2000-FF | 42 1/8" | 3 3/4" to 63" | 2,000 lb. 27 | 3/8" x 60 1/4" x 82 1/ | 4" 570 |
| VHPS-2000-FF-118 | 42 1/8" | 3 1/2" to 118" | 2,000 lb. | 27½" x 62" x 79" | 630 |
| VHPS-NM-1000-AA | 42" | 2" to 62" | 1,000 lb. | 41¼" x 48" x 78" | 590 |
| VHPS-NM-1000-FF | 42" | 3½" to 62" | 1,000 lb. | 28" x 62" x 78" | 410 |
| VWS-770-AA-DC | 30" | 1 9/16" to 59" | 770 lb. | 45" x 48" x 78" | 480 |
| VWS-770-FF-DC | 30" | 3 3/8" to 59" | 770 lb. | 26¾" x 49" x 78" | 355 |
| Fork Length | 30"; 42 1/8"; 42" |
|---|---|
| Uniform Capacity | 770 lb.; 2,000 lb.; 3,000 lb.; 2,000 lb. 27; 1,000 lb. |
Source: 2018 catalog, page 114. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The catalog lists VWS-770-AA through VWS-770-FF-DC within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Fork Length: 30"; 42 1/8"; 42"; Uniform Capacity: 770 lb.; 2,000 lb.; 3,000 lb.; 2,000 lb. 27; 1,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.
Power details mentioned in the catalog entry include 12V. Confirm which apply to the selected model or optional power package.

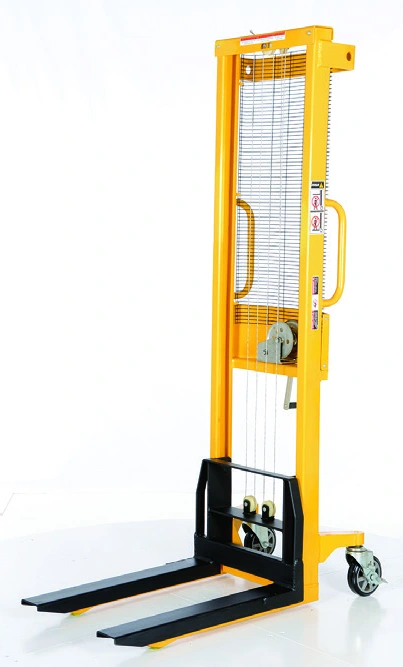

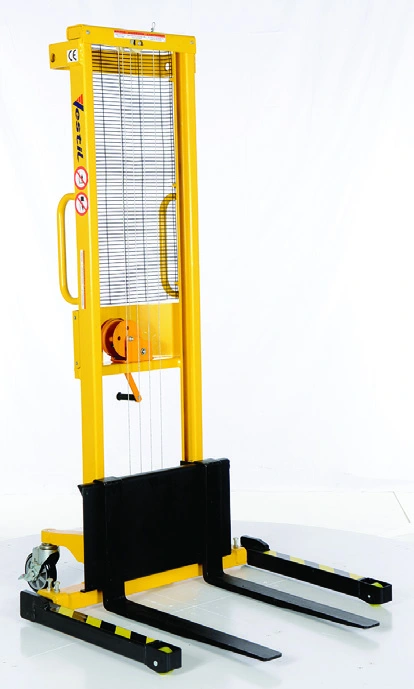

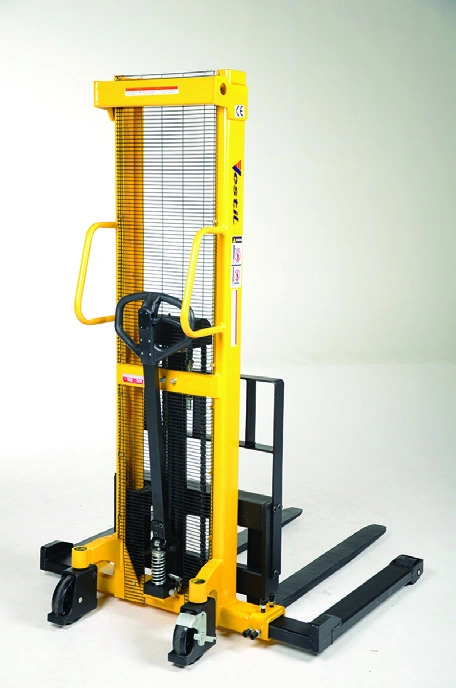

The catalog entry describes hand-pump actuation, hand-winch lifting. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 114. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 13 model references for this family. The first listed model is VWS-770-AA. Compare the model rows and confirm the required configuration when quoting.
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
