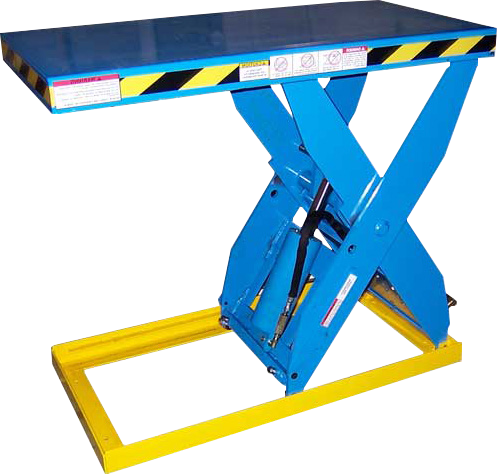

Medium-Duty Hydraulic Scissor Lift Tables — G Series — catalog equipment photograph

Open an image to inspect its original detail.

Medium-Duty Hydraulic Scissor Lift Tables — G Series — catalog equipment photograph

Specifications & options

Model / referenceCAPACITYHEIGHT (+/- 0.125”) / LOWEREDHEIGHT (+/- 0.125”) / RAISEDPLATFORM SIZE / RAISEDBASE SIZE / RAISEDLIFT SPEED (SEC) / RAISEDMOTOR (HP) / RAISEDWEIGHT (LBS) / RAISEDVERTICAL TRAVELBASE FRAME / RAISEDVOLTAGE / RAISED
BM-2G284920008”40”28” x 49”24.75” x 46”18.51.7400———
BM-2G384920008”40”38” x 49”24.75” x 46”18.51.7425———
BM-3G304930008”40”30” x 49”29.25” x 45”281.7530———
BM-3G384930008”40”38” x 49”29.25” x 45”281.7550———
BM-3G484830008”40”48” x 48”39” x 47”281.7550———
BM-MMD-2.2K-43R-244822007.25”43.25”24” x 48”—181.5—36”24” x 48”115
BM-MMD-2.2K-43R-364822007.25”43.25”36” x 48”—181.5—36”24” x 48”115
BM-MMD-2.2K-43R-426022007.25”43.25”42” x 60”—181.5—36”24” x 48”115
BM-MMD-2.2K-43R-484822007.25”43.25”48” x 48”—181.5—36”24” x 48”115
BM-MMD-3.3K-43R-244833007.25”43.25”24” x 48”—201.5—36”24” x 48”115
BM-MMD-3.3K-43R-364833007.25”43.25”36” x 48”—201.5—36”24” x 48”115
BM-MMD-3.3K-43R-426033007.25”43.25”42” x 60”—201.5—36”24” x 48”115
BM-MMD-3.3K-43R-484833007.25”43.25”48” x 48”—201.5—36”24” x 48”115
Documented model configurations13
Catalog feature / optionInternally mounted 1.5 HP 115 Volt TENV motor, 115 Volt operating control voltage
Catalog feature / optionUpper Platform Full Perimeter Safety prevents descent upon obstruction
Catalog feature / optionUpper limit switch shuts motor off at full height extension reducing wear

Source: 2026 material handling catalog, PDF page 24. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Medium-Duty Hydraulic Scissor Lift Tables — G Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: High quality Camrollers, Pivot Pins and Bearings; 4 Standard Tops Available (others upon request); Life-time lubricated bearings; Internally mounted 1.5 HP 115 Volt TENV motor, 115 Volt operating control voltage; NEMA constant pressure, magnet backed up/down push button control station with 10’ straight cord; NEMA - 1 prewired controls and electrical connectors, control box with contactor and transformer; High quality fit and finish; 10 ft. power cord (connector not included); Hard chrome plated, polished shafting and hydraulic cylinder piston rods; Surface degreased, descaled, finished in Safety Yellow and Blue; Smooth steel top with yellow and black safety stripes; S.A.E. hoses and fittings; Internal gear pump with check valve, relief valve, solenoid valve; Includes hydraulic oil and filter; Accordion Skirting; Semi-Live Dolly Jack; Caster Frame Assembly; Custom Top Sizes; Upper Platform Full Perimeter Safety prevents descent upon obstruction; Electric circuit reset button in case safety perimeter bar is activated; Upper limit switch shuts motor off at full height extension reducing wear; Single acting lift cylinder with flow control to prevent fast lowering; Low Tension (24v) control box with up and down buttons; Lifetime lubricated bearings on lift arms.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 24. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
