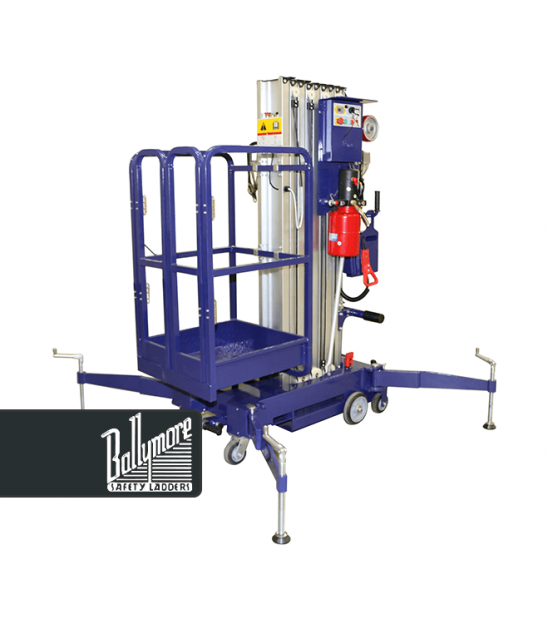

Ballymore BMVL-30 manufacturer configuration image

Ballymore manufacturer image listed for BMVL-30. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Model / reference	WORKING HEIGHT	PLATFORM MAX	PLATFORM MIN	PLATFORM W” x L”	W” x L”	HEIGHT STOWED	WEIGHT
BMVL-30	35’	30’	10”	24” x 27”	29” x 56”	78”	1,040

WORKING HEIGHT	35’
PLATFORM MAX	30’
PLATFORM MIN	10”
PLATFORM W” x L”	24” x 27”
W” x L”	29” x 56”
HEIGHT STOWED	78”
WEIGHT	1,040
Catalog feature / option	Working heights to 35’

Source: 2026 personnel lift catalog, PDF page 8. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Pushable Vertical Mast Lift — BMVL-30 is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Working heights to 35’; Manually propelled maintenance lift; Compact design for easy storage; 29x56 base allows lift to roll through standard doorways; Easy to use outriggers extend from base to provide excellent t bilit SAFETY: For additional safety, outriggers include interlocks, which prevent the platform from being raised unless all four outriggers are in firm contact with the ground 300 Lb. Capacity.

Model and option notes: ADDITIONAL INFORMATION; Outriggers Included & Attached; Outriggers Footprint = 64” x 74”.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF page 8. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Vertical Mast Lifts

Pushable Vertical Mast Lift — BMVL-30

Original supplier reference: Mobile Single Person Vertical Lift BMCL-30

SKU / model reference: BMVL-30

Manufacturer: Ballymore

Pushable Vertical Mast Lift — BMVL-30. WORKING HEIGHT: 35’. PLATFORM MAX: 30’. PLATFORM MIN: 10”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

WORKING HEIGHT: 35’
PLATFORM MAX: 30’
PLATFORM MIN: 10”
PLATFORM W” x L”: 24” x 27”
W” x L”: 29” x 56”

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
