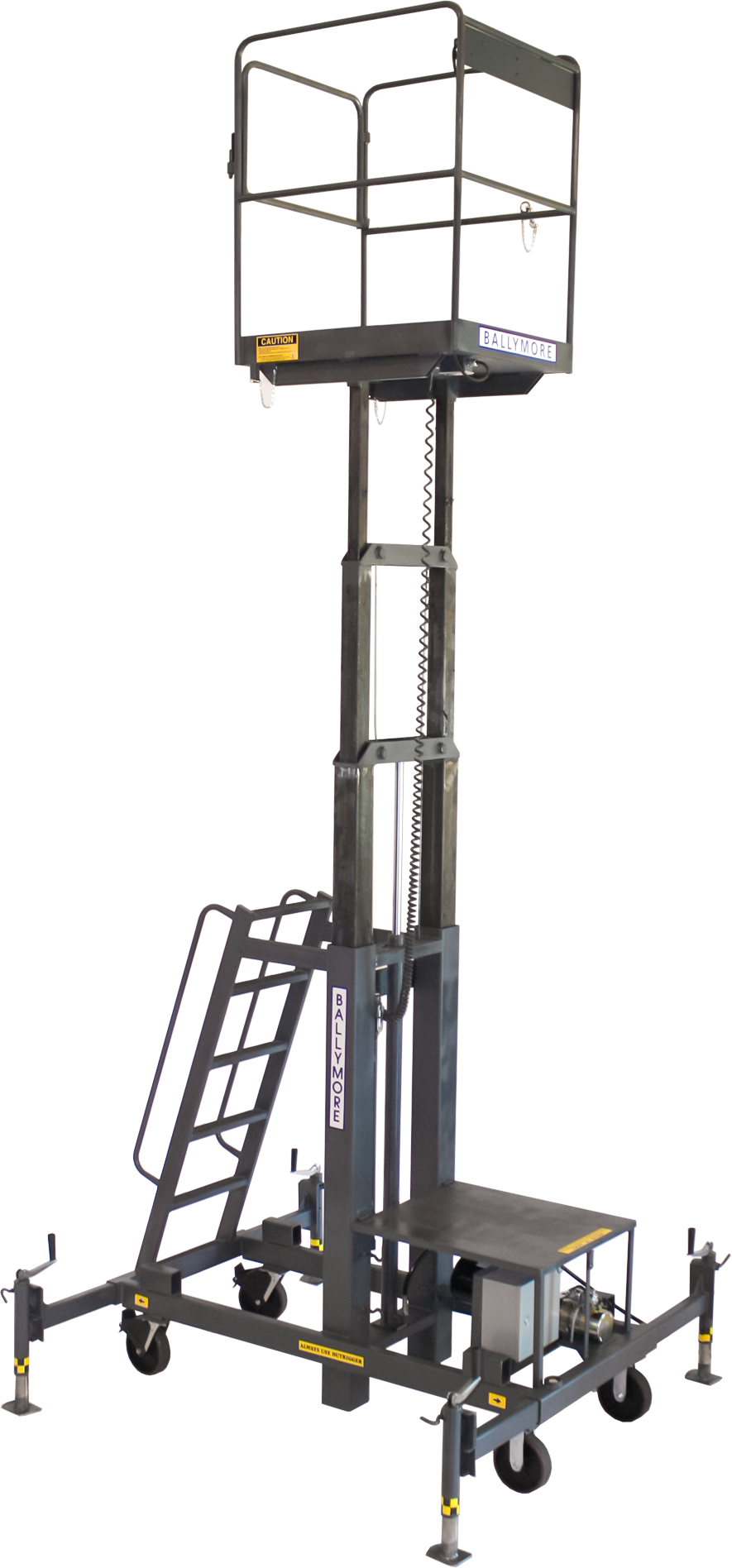

Ballymore MR-15-AC manufacturer configuration image

Ballymore manufacturer image listed for MR-15-AC. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Model / referenceMAXMIN (column 1)MIN (column 2)
MR-15-AC15’6’ 4”800
MR-15-DC15’6’ 4”930
MR-20-AC19’ 3”6’ 4”1,000
MR-20-DC19’ 3”6’ 4”1,130
MR-24-AC23’ 8”6’ 7”1,200
MR-24-DC23’ 8”6’ 7”1,330
MR-28-AC28’6’ 10”1,420
MR-28-DC28’6’ 10”1,550
Documented model configurations8
Catalog feature / optionSelect from maximum platform heights of 15’, 19’, 24’ or 28’
Catalog feature / optionRoomy 28” x 36” platform
Catalog feature / optionTotally enclosed platform with 42” guard rails, mid rails & gate; 4” toeboards and non-slip deckl easy rolling and maneuver ability
Catalog feature / optionOverall height with rails folded is 16” above platform
Catalog feature / optionWorking heights to 34’
Catalog feature / optionPowder coated gray finish Shown with optional orange finish Two Worker Capacity 500 Lb. Capacity

Source: 2026 personnel lift catalog, PDF page 6. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Telescoping Hydraulic Maintenance Lifts — MR Series is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Select from maximum platform heights of 15’, 19’, 24’ or 28’; Roomy 28” x 36” platform; Accommodates two workers; Totally enclosed platform with 42” guard rails, mid rails & gate; 4” toeboards and non-slip deckl easy rolling and maneuver ability; Self-storing outriggers extend from base for maxi mum stability; Leveling jacks secure unit to floor and compensate for uneven surfaces; Overall height with rails folded is 16” above platform; 500 LB. COMBINED; Working heights to 34’; Two power options:; Convenient plug in 120V AC; Independent 12V DC deep cycle system with battery and charger; Powder coated gray finish Shown with optional orange finish Two Worker Capacity 500 Lb. Capacity.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF page 6. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
