Equipment details
5092EX Explosion Proof Scissor Lift
5092EX Explosion Proof Scissor Lift: Maximum Reach & Capacity for Safe Work in Classified Areas
- Working height
- 56 ft
- Platform dimensions
- 74 x 168 in

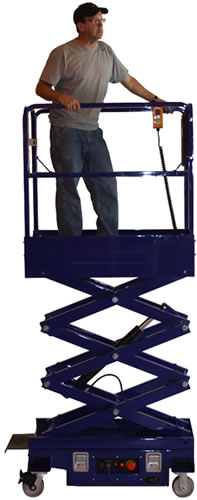

Ballymore manufacturer image listed for MSL-12. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
Specifications & options
| Model / reference | Capacity (lb) | Working height | Maximum platform height | Minimum platform height (in) | Platform W x L (in) | Platform extension (in) | Base W x L (in) | Overall height (in) | Weight (lb) | Power |
|---|---|---|---|---|---|---|---|---|---|---|
| MSL-12 | 500 | 19 ft | 12 ft 9 in | 26 | 28 x 50 | — | 30 x 57 | 77 | 1260 | 12V DC |
| Capacity (lb) | 500 |
|---|---|
| Working height | 19 ft |
| Maximum platform height | 12 ft 9 in |
| Minimum platform height (in) | 26 |
| Platform W x L (in) | 28 x 50 |
| Platform extension (in) | — |
| Base W x L (in) | 30 x 57 |
| Overall height (in) | 77 |
| Weight (lb) | 1260 |
| Power | 12V DC |
Source: 2026 personnel lift catalog, PDF pages 12, 13. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Mini Scissor Lift — MSL-12 is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Model and option notes: DMSL-19C* 500 25’ 19’ 42” 28” x 53” 24” 32” x 60” 83” 2733 2 - 12V.
Documentation & drawings
Reference: 2026 personnel lift catalog, PDF pages 12, 13. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model or configuration?
Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
Are the catalog specifications current?
These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
How do I request a quote?
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
