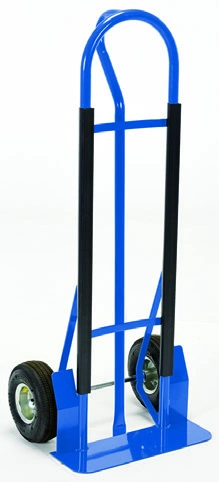

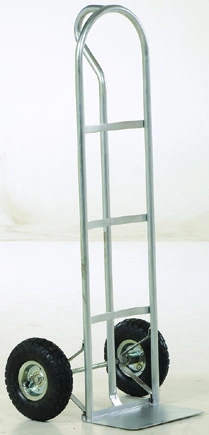

| MODEL NUMBER | STEEL "P" HANDLE HAND TRUCKS | NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | FINISH | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| SPHT-500S-HR | 14" x 7½" | 500 lb. | 21" x 18" x 52" | Galvanized | 33 | |
| SPHT-500S-HD-HR | 20" x 5 1/8" | 600 lb. | 20" x 16¼" x 52" | Painted | 43 | |
| SPHT-500S | 14" x 7½" | 500 lb. | 21" x 18" x 52" | Galvanized | 23 | |
| SPHT-500S-HD | 20" x 5 1/8" | 600 lb. | 20" x 16¼" x 52" | Painted | 32 | |
| SPHT-600S-IND | 14" x 7" | 600 lb. | 22" x 22" x 52" | Painted | 31 |

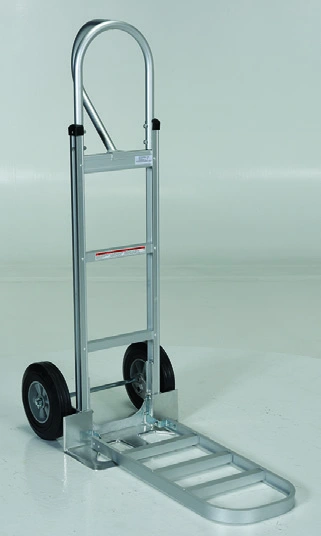

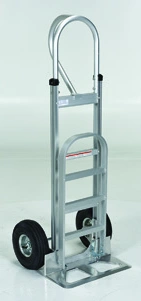

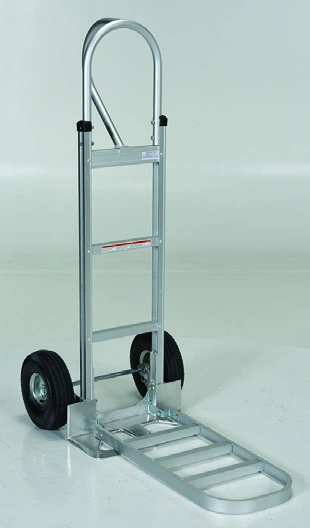

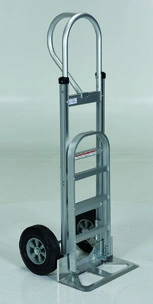

| MODEL NUMBER | ALUMINUM "P" HANDLE HAND TRUCKS with extended nose plate NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | WEIGHT (POUND) |
|---|---|---|---|---|
| APHT-500A-HR | 18" x 7½" / 12" x 27" | 500 / 200 lb. | 18½" x 18½" x 52½" | 38 |
| APHT-500A | 18" x 7½" / 12" x 27" | 500 / 200 lb. | 20½" x 18½" x 52½" | 28 |

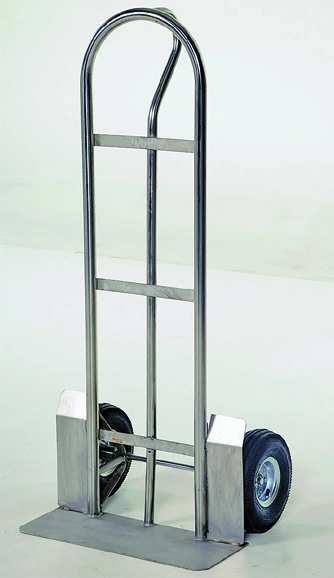

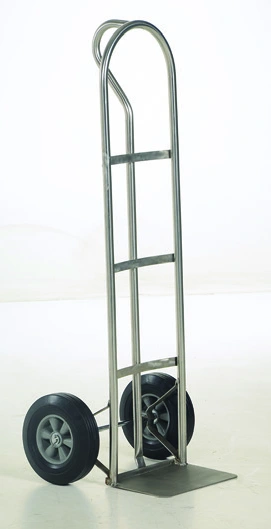

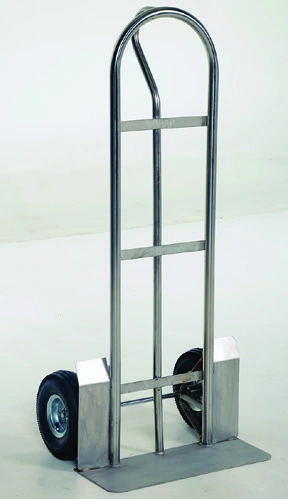

| MODEL NUMBER | STAINLESS STEEL "P" HANDLE HAND TRUCKS | NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | WEIGHT (POUND) |
|---|---|---|---|---|---|
| SPHT-500-HD-SS-HR | 22" x 7½" | 600 lb. | 22" x 19" x 52" | 45 | |
| SPHT-500-SS-HR | 14" x 7½" | 500 lb. | 21" x 18" x 52" | 45 | |
| SPHT-500-HD-SS | 22" x 7½" | 600 lb. | 22" x 19" x 52" | 35 | |
| SPHT-500-SS | 14" x 7½" | 500 lb. | 21" x 18" x 52" | 24 |
| MODEL NUMBER | NOSE PLATE (W x D) | UNIFORM CAPACITY | OVERALL SIZE (W x D x H) | WEIGHT (POUND) |
|---|---|---|---|---|
| SPHT-500-HD-SS-HR | 22" x 7½" | 600 lb. | 22" x 19" x 52" | 45 |
| SPHT-500-SS-HR | 14" x 7½" | 500 lb. | 21" x 18" x 52" | 45 |
| SPHT-500-HD-SS | 22" x 7½" | 600 lb. | 22" x 19" x 52" | 35 |
| SPHT-500-SS | 14" x 7½" | 500 lb. | 21" x 18" x 52" | 24 |
| Nose Plate (W X D) | 14" x 7½"; 20" x 5 1/8"; 14" x 7"; 22" x 7½" |
|---|---|
| Uniform Capacity | 500 lb.; 600 lb.; 500 / 200 lb. |
| Overall Size (W X D X H) | 21" x 18" x 52"; 20" x 16¼" x 52"; 22" x 22" x 52"; 18½" x 18½" x 52½"; 20½" x 18½" x 52½"; 22" x 19" x 52" |
| Finish | Galvanized; Painted |
| Aluminum "P" Handle Hand Trucks With Extended Nose Plate Nose Plate (W X D) | 18" x 7½" / 12" x 27" |
Source: 2018 catalog, pages 356, 419. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The catalog lists SPHT-500S-HR through SPHT-500-SS within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Nose Plate (W X D): 14" x 7½"; 20" x 5 1/8"; 14" x 7"; 22" x 7½"; Uniform Capacity: 500 lb.; 600 lb.; 500 / 200 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, pages 356, 419. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 11 model references for this family. The first listed model is SPHT-500S-HR. Compare the model rows and confirm the required configuration when quoting.
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
