Open an image to inspect its original detail.
| MODEL NUMBER | DESCRIPTION | OVERALL SIZE (W x D x H) | TOTAL UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|
| WBT-S-3624 | SOLID TOP/SOLID LOWER | 36" x 24" x 36" | 580 lb. | 34 |
| WBT-S-4824 | SOLID TOP/SOLID LOWER | 48" x 24" x 36" | 785 lb. | 43 |
| WBT-S-6624 | SOLID TOP/SOLID LOWER | 66" x 24" x 36" | 1,070 lb. | 57 |
| WBT-S-9624 | SOLID TOP/SOLID LOWER | 96" x 24" x 36" | 1,555 lb. | 81 |

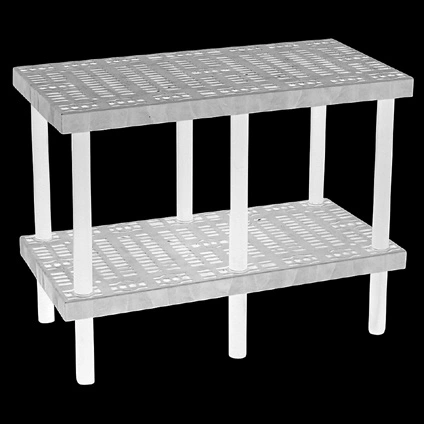

| WBT-G-3624 | GRID TOP/GRID LOWER | 36" x 24" x 36" | 500 lb. | 39 |
| WBT-G-4824 | GRID TOP/GRID LOWER | 48" x 24" x 36" | 688 lb. | 39 |
| WBT-G-6624 | GRID TOP/GRID LOWER | 66" x 24" x 36" | 925 lb. | 48 |
| WBT-G-9624 | GRID TOP/GRID LOWER | 96" x 24" x 36" | 1,350 lb. | 70 |
| Overall Size (W X D X H) | 36" x 24" x 36"; 48" x 24" x 36"; 66" x 24" x 36"; 96" x 24" x 36" |
|---|---|
| Total Uniform Capacity | 580 lb.; 785 lb.; 1,070 lb.; 1,555 lb.; 500 lb.; 688 lb.; 925 lb.; 1,350 lb. |
Source: 2018 catalog, page 396. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists WBT-S-3624 through WBT-G-9624 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Overall Size (W X D X H): 36" x 24" x 36"; 48" x 24" x 36"; 66" x 24" x 36"; 96" x 24" x 36"; Total Uniform Capacity: 580 lb.; 785 lb.; 1,070 lb.; 1,555 lb.; 500 lb.; 688 lb.; 925 lb.; 1,350 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 396. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 8 model references for this family. The first listed model is WBT-S-3624. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
