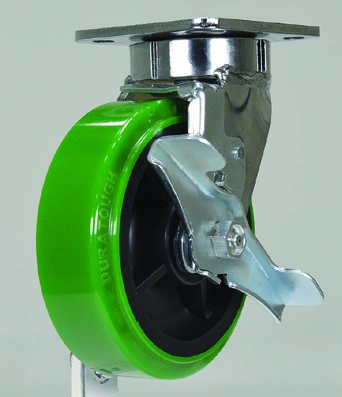

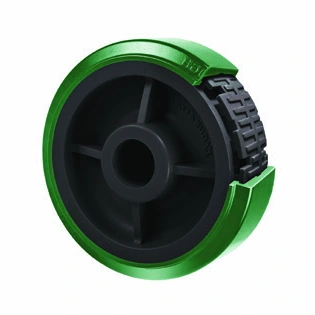

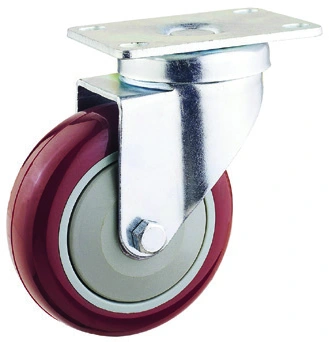

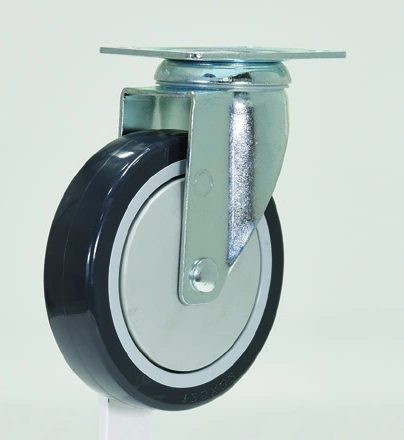

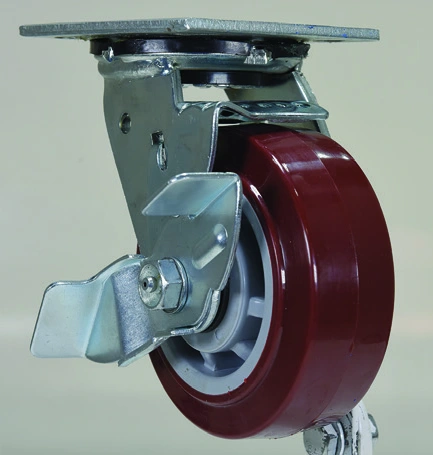

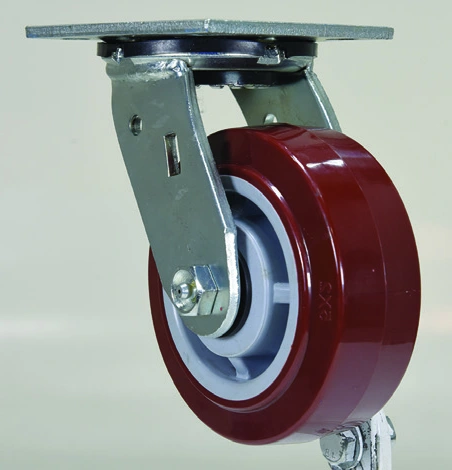

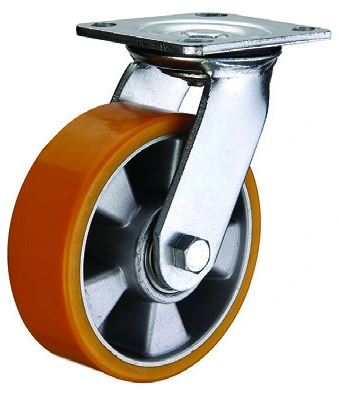

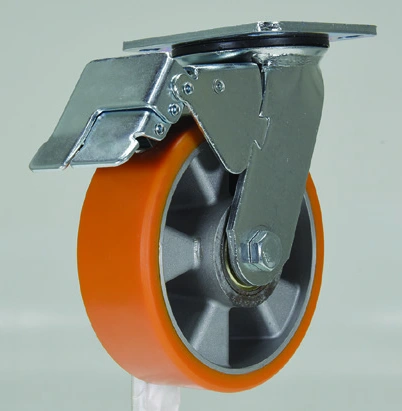

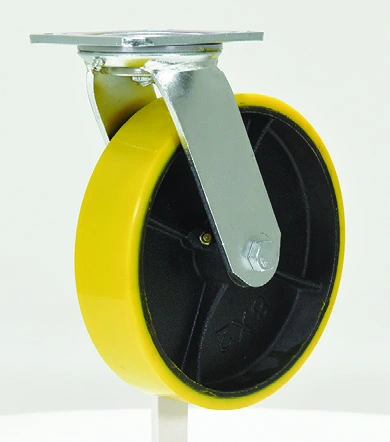

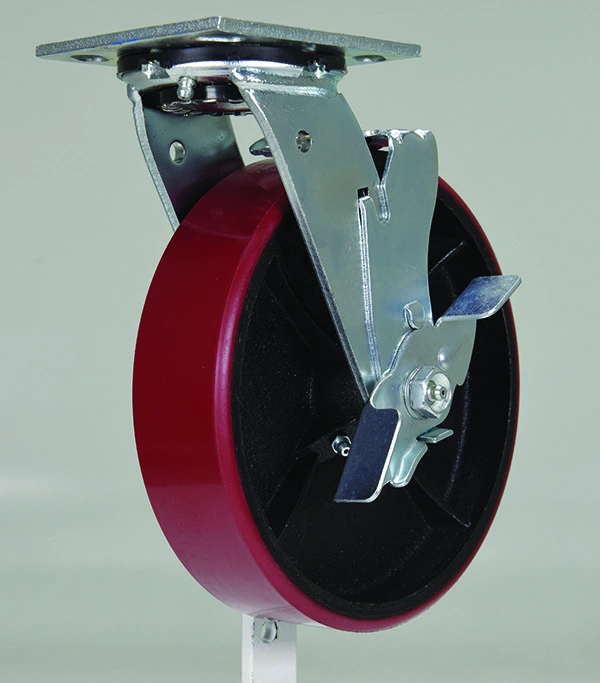

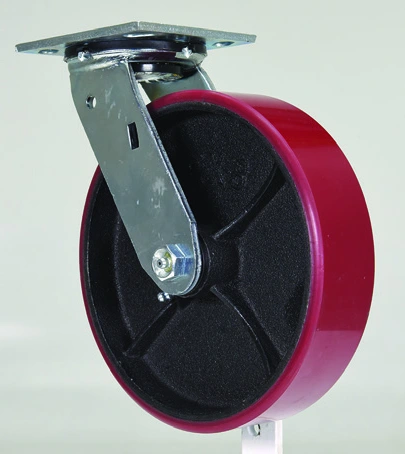

| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | WEIGHT (POUND) |
|---|---|---|---|---|---|
| CST-FC47-6X2DT-S | 6" x 2" | 900 lb. | 7 1/2" | 4" x 4½" | 5.75 |
| CST-FC47-8X2DT-S | 8" x 2" | 1,000 lb. | 9½" | 4" x 4½" | 6.75 |
| CST-FC47-6X2DT-R | 6" x 2" | 900 lb. | 7 1/2" | 4" x 4½" | 5 |
| CST-FC47-8X2DT-R | 8" x 2" | 1,000 lb. | 9½" | 4" x 4½" | 6.25 |
| CST-FC47-6X2DT-SWB | 6" x 2" | 900 lb. | 7 1/2" | 4" x 4½" | 6.25 |
| CST-FC47-8X2DT-SWB | 8" x 2" | 1,000 lb. | 9½" | 4" x 4½" | 7.25 |
| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | HARDENED RACEWAY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CST-C22-4X1PU-S*/** | 4" x 1 1/4" | 250 lb. | 5 3/16" | 2 3/4" x 3 3/4" | Double | 2 |
| CST-B28-5X1PU-S | 5" x 1 1/4" | 330 lb. | 6 1/4" | 2 5/8" x 3 3/4" | Double | 1.93 |
| CST-B28-5X1PU-R | 5" x 1 1/4" | 330 lb. | 6 1/4" | 2 5/8" x 3 3/4" | -- | 1.40 |
| CST-B28-5X1PU-SWTB | 5" x 1 1/4" | 330 lb. | 6 1/4" | 2 5/8" x 3 3/4" | Double | 2.32 |
| CST-B28 MODELS HAVE A BEARING DUST COVER SEAL | *MAROON TREAD COLOR FOR CST-C22-4X1PU-S / **NSF COMPLIANT |
| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | HARDENED RACEWAY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CST-C44-5X2PU-S | 5" x 2" | 700 lb. | 6 1/2" | 4" x 4½" | Double | 4.60 |
| CST-C44-6X2PU-S | 6" x 2" | 750 lb. | 7 1/2" | 4" x 4½" | Double | 5.17 |
| CST-C44-5X2PU-R | 5" x 2" | 700 lb. | 6 1/2" | 4" x 4½" | -- | 3.80 |
| CST-C44-6X2PU-R | 6" x 2" | 750 lb. | 7 1/2" | 4" x 4½" | -- | 4.37 |
| CST-C44-5X2PU-SWB | 5" x 2" | 700 lb. | 6 1/2" | 4" x 4½" | Double | 5.20 |
| CST-C44-6X2PU-SWB | 6" x 2" | 750 lb. | 7 1/2" | 4" x 4½" | Double | 5.50 |
| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | HARDENED RACEWAY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CST-B29-6X2PUA-S | 6" x 2" | 1,212 lb. | 7½" | 4" x 4½" | Double | 8.0 |
| CST-B29-8X2PUA-S | 8" x 2" | 1,543 lb. | 9 7/16" | 4" x 4½" | Double | 10.66 |
| CST-B29-6X2PUA-R | 6" x 2" | 1,212 lb. | 7½" | 4" x 4½" | -- | 7.06 |
| CST-B29-8X2PUA-R | 8" x 2" | 1,543 lb. | 9 7/16" | 4" x 4½" | -- | 9.9 |
| CST-B29-6X2PUA-SWTB | 6" x 2" | 1,212 lb. | 7½" | 4" x 4½" | Double | 8.6 |
| CST-B29-8X2PUA-SWTB | 8" x 2" | 1,543 lb. | 9 7/16" | 4" x 4½" | Double | 11.4 |
| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | HARDENED RACEWAY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CST-B29-6X2PU-S* | 6" x 2" | 1,234 lb. | 7½" | 3 7/8" x 4½" | Double | 7.05 |
| CST-B29-8X2PU-S** | 8" x 2" | 1,477 lb. | 9½" | 4" x 4½" | Double | 9.40 |
| CST-B29-6X2PU-R* | 6" x 2" | 1,234 lb. | 7½" | 3 7/8" x 4½" | -- | 6.29 |
| CST-B29-8X2PU-R** | 8" x 2" | 1,477 lb. | 9½" | 4" x 4½" | -- | 8.70 |
| MODEL NUMBER | CASTER SIZE | CAPACITY | OVERALL HEIGHT | TOP PLATE SIZE | HARDENED RACEWAY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| CST-C44-8X2PU-S | 8" x 2" | 1,250 lb. | 9½" | 4" x 4½" | Double | 9.5 |
| CST-C44-8X2PU-R | 8" x 2" | 1,250 lb. | 9½" | 4" x 4½" | -- | 8.8 |
| CST-C44-8X2PU-SWB | 8" x 2" | 1,250 lb. | 9½" | 4" x 4½" | Double | 9.9 |
| Caster Size | 6" x 2"; 8" x 2"; 4" x 1 1/4"; 5" x 1 1/4"; *MAROON TREAD COLOR FOR CST-C22-4X1PU-S / **NSF COMPLIANT; 5" x 2" |
|---|---|
| Overall Height | 7 1/2"; 9½"; 5 3/16"; 6 1/4"; 6 1/2"; 7½"; 9 7/16" |
| Top Plate Size | 4" x 4½"; 2 3/4" x 3 3/4"; 2 5/8" x 3 3/4"; 3 7/8" x 4½" |
| Hardened Raceway | Double; -- |
Source: 2018 catalog, pages 434, 439, 440, 442. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The catalog lists CST-FC47-6X2DT-S through CST-C44-8X2PU-SWB within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Caster Size: 6" x 2"; 8" x 2"; 4" x 1 1/4"; 5" x 1 1/4"; *MAROON TREAD COLOR FOR CST-C22-4X1PU-S / **NSF COMPLIANT; 5" x 2"; Overall Height: 7 1/2"; 9½"; 5 3/16"; 6 1/4"; 6 1/2"; 7½"; 9 7/16". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, pages 434, 439, 440, 442. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 30 model references for this family. The first listed model is CST-FC47-6X2DT-S. Compare the model rows and confirm the required configuration when quoting.
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
