Specifications & options
| MODEL NUMBER | DESCRIPTION | KW AMPS | VOLTS PHASE | TEMP RISE | WEIGHT (POUND) |
|---|---|---|---|---|---|

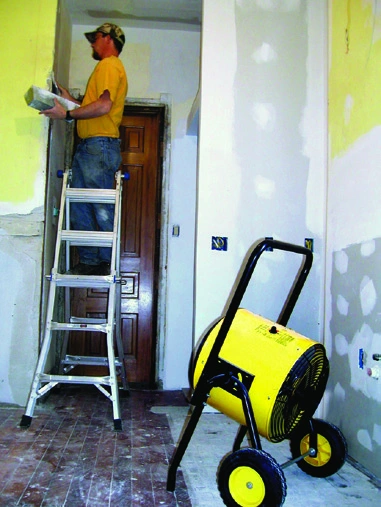

| PES-1520-3 | PORTABLE HEATER | 15/42 | 208/3 | 45 | 65 |
| PES-1524-1 | PORTABLE HEATER | 15/63 | 240/1 | 45 | 69 |
| PES-1524-3 | PORTABLE HEATER | 15/36 | 240/3 | 45 | 69 |
| PES-1548-3 | PORTABLE HEATER | 15/18 | 480/3 | 45 | 65 |
| PES-3048-3 | PORTABLE HEATER | 30/36 | 480/3 | 90 | 83 |
| PES-1024-1* | PORTABLE HEATER | 10/42 | 240/1 | 30 | 63 |
| MODEL NUMBER | OPTIONAL 25 FOOT CORD WITH PLUG | CABLE TYPE | USE WITH MODEL |
|---|---|---|---|
| PES-43-SO | 4/3 SO, POWER CORD | PES-1524-1 | |
| PES-64-SO | 6/4 SO, POWER CORD | PES-1520-3, PES-1524-3, PES-3048-3 | |
| PES-124-SO | 12/4 SO, POWER CORD | PES-1548-3 |
| Kw Amps | 15/42; 15/63; 15/36; 15/18; 30/36; 10/42 |
|---|---|
| Volts Phase | 208/3; 240/1; 240/3; 480/3 |
| Temp Rise | 45; 90; 30 |
| Cable Type | 4/3 SO, POWER CORD; 6/4 SO, POWER CORD; 12/4 SO, POWER CORD |
| Use With Model | PES-1524-1; PES-1520-3, PES-1524-3, PES-3048-3; PES-1548-3 |
Source: 2018 catalog, page 61. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists PES-1520-3 through PES-124-SO within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Kw Amps: 15/42; 15/63; 15/36; 15/18; 30/36; 10/42; Volts Phase: 208/3; 240/1; 240/3; 480/3. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 61. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for portable electric salamanders?
The catalog records 9 model references for this family. The first listed model is PES-1520-3. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right portable electric salamanders configuration?
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
