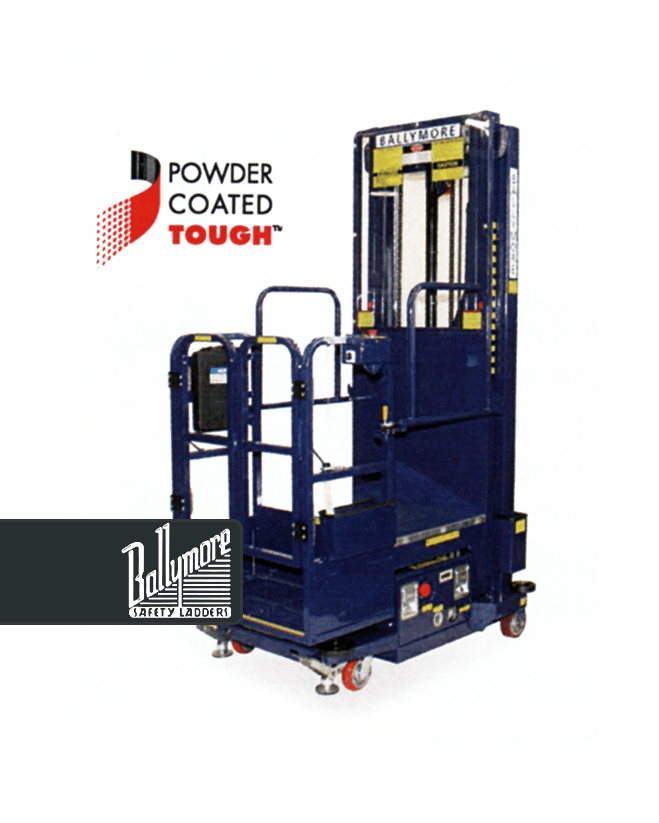

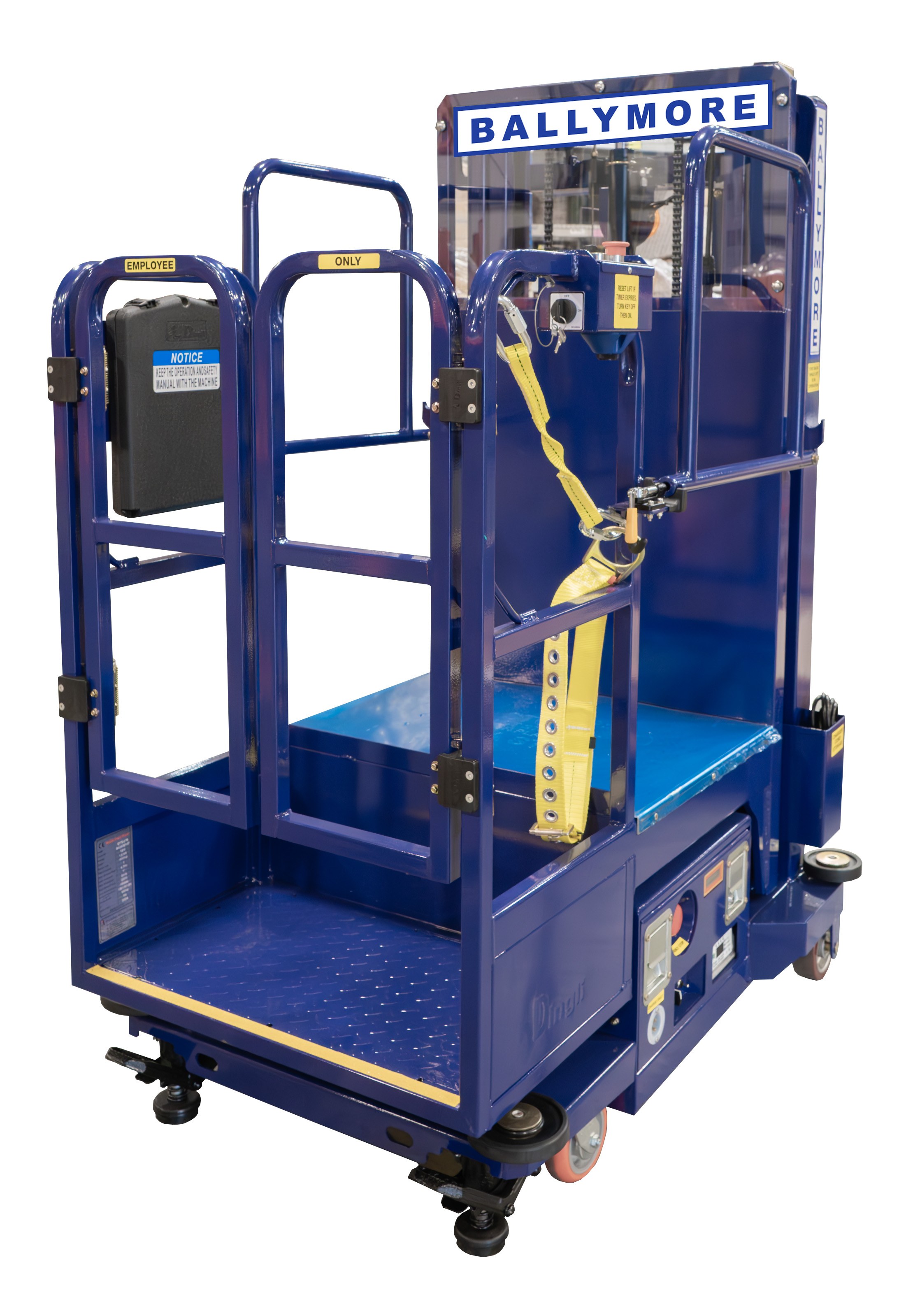

Ballymore PS-10 manufacturer configuration image

Ballymore manufacturer image listed for PS-10. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Model / reference	Working height	Maximum merchandise deck height	Maximum standing platform height	Cargo platform (in)	Footprint W x L (in)	Lowered overall height (in)	Power	Weight (lb)
PS-10	15 ft	10 ft	9 ft	24 x 32	43 x 54	76	12V DC	1,231
PS-12	18 ft	13 ft	12 ft 2 in	24 x 32	42 x 54	94	12V DC	1,331
PS-15	21 ft	15 ft 9 in	14 ft	24 x 32	43 x 60	90	12V DC	1,434
PS-12DRV	18 ft	13 ft	11 ft 2 in	28 x 32	42 x 60	96	2-12V	1,600
PS-15DRV	20 ft	14 ft 10 in	13 ft 10 in	28 x 32	43 x 65	90	2-12V	1,675
PS-18DRV	24 ft	19 ft 3 in	18 ft	30 x 33	40 x 79	88	2-12V	3,043

Documented model configurations	6
Rated capacity	650 lb

Source: 2026 personnel lift catalog, PDF pages 10, 11. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Pushable and Drivable Stocker Lifts — PS Series is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Model and option notes: PS-12* 18’ 13’ 12’ 2” 24” x 32” 42” x 54” 94” 12V DC 1,331; PS-15* 21’ 15’ 9” 14’ 24” x 32” 43” x 60” 90” 12V DC 1,434; PS-12DRV* 18’ 13’ 11’ 2” 28” x 32” 42” x 60” 96” 2-12V 1,600; PS-15DRV* 20’ 14’ 10” 13’ 10” 28” x 32” 43” x 65” 90” 2-12V 1,675; PS-18DRV* 24’ 19’ 3” 18’ 30” x 33” 40” x 79” 88” 2-12V 3043; * Available with optional sensing system - Add (-S) to Model #.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF pages 10, 11. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Manlifts & Personnel Lifts

Pushable and Drivable Stocker Lifts — PS Series

Original supplier reference: Power Stocker Lifts | PS-10 | PS-12

Manufacturer: Ballymore

Pushable and Drivable Stocker Lifts — PS Series. Documented model configurations: 6. Rated capacity: 650 lb.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Documented model configurations: 6
Rated capacity: 650 lb

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
