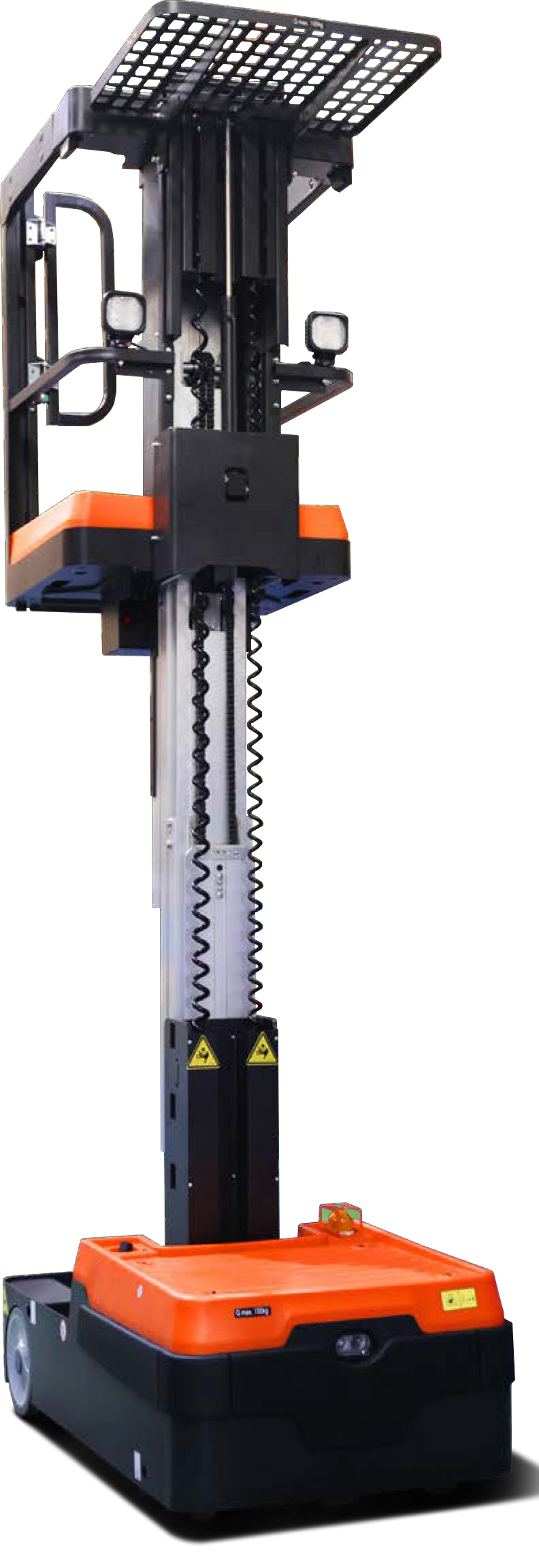

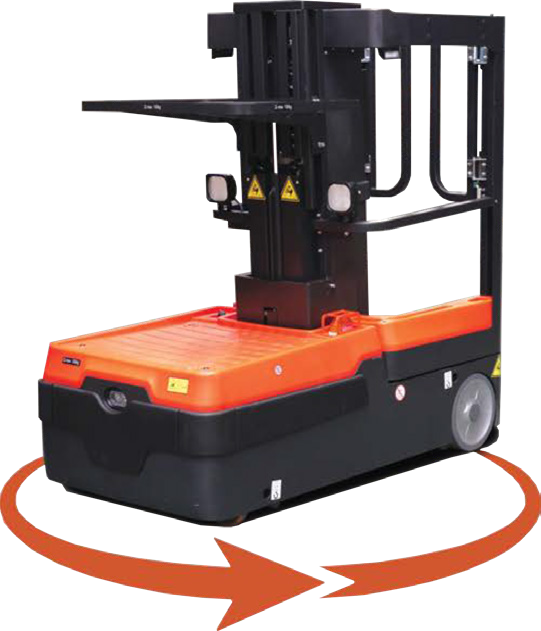

Powered Order Pickers — Rebel-10 and Rebel-11 — original catalog photograph

Open an image to inspect its original detail.

Powered Order Pickers — Rebel-10 and Rebel-11 — catalog equipment photographPowered Order Pickers — Rebel-10 and Rebel-11 — catalog equipment photographPowered Order Pickers — Rebel-10 and Rebel-11 — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITYWORKING HEIGHTOVERALL HEIGHTMERCH DECK MAX HEIGHTFOOTPRINT L” X W”POWERWEIGHT Lbs.
Rebel-10300*16’62”12.5’62” x 30”2-12V1,411
Rebel-11300*16.4’58”13’58” x 30”2-12V1,522
Documented model configurations2
WEIGHT CAPACITY300*
POWER2-12V
Catalog feature / optionCapacity personnel deck - 300 lbs
Catalog feature / optionLoad capacity upper merchandise deck - 200 lbs
Catalog feature / optionLoad capacity lower merchandise deck - 250lbs
Catalog feature / optionStanding Platform - 116”

Source: 2026 personnel lift catalog, PDF page 7. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Powered Order Pickers — Rebel-10 and Rebel-11 is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

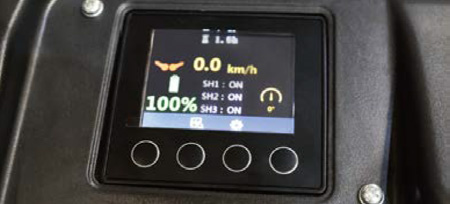

Catalog features and options: Capacity personnel deck - 300 lbs; Load capacity upper merchandise deck - 200 lbs; Load capacity lower merchandise deck - 250lbs; Charging 110v outlet; Color - Orange; Saloon doors; Two speeds- Turtle Drive Mode when the lift is in the raised position; Travel speed up to 3 mph; Wheels - 2 Drive wheels 12” x 2.5” and 2 wheels 10” x 2.5”; Merchandise deck- 26.5” w x 21” L; Standing Platform - 116”; Compact, maintenance- friendly design for work in narrow aisles; Curtis Controller with CAN-bus control; High performance AC drive motor and DC lifting motor; Lithium battery: 24V/80Ah with Built-in 24V/25Ah charger; EPS-Electric Power Steering system; Smart handle with Keyless Pin- Code Panel and RFID Card; Electric Lifting and Lowering Buttons; High-performance handle with dual-hands sensing operation; LCD display: speed, usage time, power, steering, fault code, alarm and more; Emergency lowering switch.

Model and option notes: * Capacity personnel deck ** LIAM; Rebel-10 300* 16’ 62” 12.5’ 62” x 30” 2-12V 1,411; Rebel-11** 300* 16.4’ 58” 13’ 58” x 30” 2-12V 1,522.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF page 7. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
