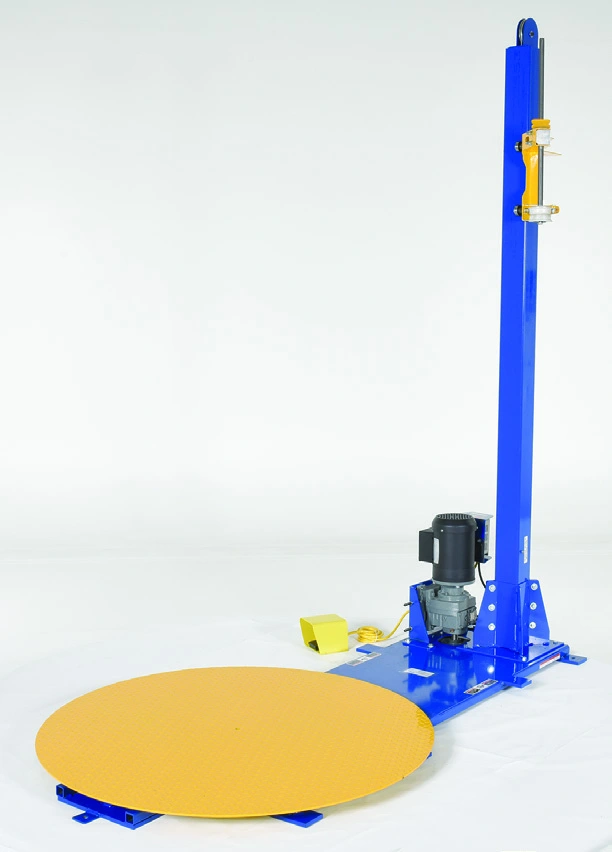

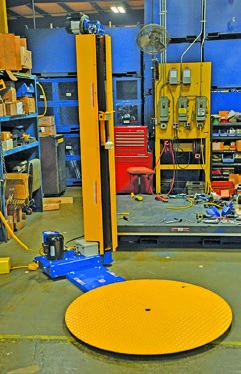

Powered Stretch Wrap Machines catalog equipment view

Open an image to inspect its original detail.

Powered Stretch Wrap Machines catalog equipment viewPowered Stretch Wrap Machines catalog equipment viewPowered Stretch Wrap Machines catalog equipment viewPowered Stretch Wrap Machines catalog equipment view

Specifications & options

MODEL NUMBERTURNTABLE DIAMETERTURNTABLE HEIGHTUNIFORM CAPACITYMAXIMUM LOAD DIAMETERMAXIMUM WRAP HEIGHTWEIGHT (POUND)
SWA-5050"2 1/16"4,000 lb.64"82"615
SWA-7070"2 3/16"4,000 lb.84"81 7/8"985
SWA-VCC-208/230-1VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE--
SWA-VCC-208/230-3VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE--
SWA-VCC-460-3VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE--

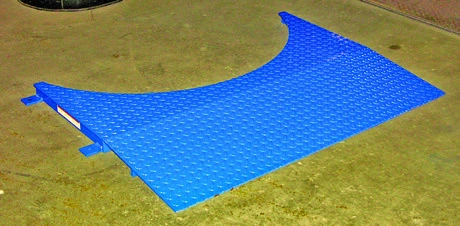

SWA-50-R-484848"W x 39 15/16"L x 2"H APPROACH RAMP OPTION FOR SWA-50221
SWA-70-R-484848"W x 39 15/16"L x 2"H APPROACH RAMP OPTION FOR SWA-70399
SWA-50-SCALEDIGITAL SCALE OPTION FOR SWA-50(ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED)680
SWA-70-SCALEDIGITAL SCALE OPTION FOR SWA-70(ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED)884
SWA-50-R-4860-SCLAPPROACH RAMP FOR SCALE OPTION (SWA-50)346
SWA-70-R-4860-SCLAPPROACH RAMP FOR SCALE OPTION (SWA-70)352
SWA-COUNTCOUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATION1
SWA-NRTL-COMPINCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB(NRTL)0
SWA-INDEXAUTO-INDEXING 90°, 120°, OR 180°1
SWA-CGCHAIN GUARD FOR POWERED MAST OPTION110
SWA-MST-FLRFLOOR MOUNTED MAST BRACKET FOR STAND-ALONE APPLICATIONS.(SWA-50 & -70 MASTS)21
SWA-FILM20"H x 80 ga. x 6,000' x 3" CORE (ONE ROLL)42
SWA-5070LP-PMOPOWERED MAST OPTION - FACTORY INSTALLED144
SWA-5070LP-PMO-RF115V POWERED MAST OPTION (RETROFIT - FIELD INSTALLED)194
SWA-5070LP-M-RFMANUAL MAST OPTION (RETROFIT - FIELD INSTALLED)150
PMO-VCC-208/230-1VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE--
PMO-VCC-208/230-3VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE--
PMO-VCC-460-3VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE--
MODEL NUMBERTURNTABLE DIAMETERTURNTABLE HEIGHTUNIFORM CAPACITY (POUNDS)MAXIMUM LOAD DIAMETERMAXIMUM WRAP HEIGHTWEIGHT (POUND)
SWA-4848"2 3/8"4,00062"83 3/4"594
SWA-48-PMO48"2 3/8"4,00062"80 5/16"619
SWA-PMO-RF115V POWERED MAST OPTION (RETROFIT - FIELD INSTALLED)194
SWA-SCALEDIGITALE SCALE OPTION(AVAILABLE ONLY ON SWA-48 & ADDS 3½" TO HEIGHT - FACTORY INSTALLED)339
SWA-VCC-208/230-1VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE--
SWA-VCC-208/230-3VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE--
SWA-VCC-460-3VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE--
SWA-R-483648"W x 36"L x 2"H APPROACH RAMP (FOR ELECTRIC PALLET TRUCKS)*170
SWA-R-484848"W x 48"L x 2"H APPROACH RAMP (FOR MANUAL PALLET TRUCKS)*212
SWA-R-48100-SCL48"W x 100"L x 6"H APPROACH RAMP(FOR SWA-48 WITH SCALE) (ELECTRIC & MANUAL PALLET TRUCKS)600
SWA-COUNTCOUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATION1
SWA-NRTL-COMPINCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB(NRTL)--
SWA-INDEXAUTO-INDEXING 90°, 120°, OR 180°1
SWA-FILM20"W x 80 ga. x 6,000' x 3" CORE (ONE ROLL)42
Turntable Diameter50"; 70"; 48"W x 39 15/16; 48"; DIGITALE SCALE OPTION
Uniform Capacity4,000 lb.; "L x 2"H APPROACH RAMP OPTION FOR SWA-50; "L x 2"H APPROACH RAMP OPTION FOR SWA-70
Maximum Load Diameter64"; 84"; (ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED); 62"; (AVAILABLE ONLY ON SWA-48 & ADDS 3½" TO HEIGHT - FACTORY INSTALLED); (FOR SWA-48 WITH SCALE) (ELECTRIC & MANUAL PALLET TRUCKS)
Maximum Wrap Height82"; 81 7/8"; (NRTL); (SWA-50 & -70 MASTS); 83 3/4"; 80 5/16"
Uniform Capacity (Pounds)INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB; 4,000; 48"W x 36"L x 2"H APPROACH RAMP (FOR ELECTRIC PALLET TRUCKS)*; 48"W x 48"L x 2"H APPROACH RAMP (FOR MANUAL PALLET TRUCKS)*

Source: 2018 catalog, pages 154, 155. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists SWA-50 through SWA-R-48100-SCL within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Turntable Diameter: 50"; 70"; 48"W x 39 15/16; 48"; DIGITALE SCALE OPTION; Uniform Capacity: 4,000 lb.; "L x 2"H APPROACH RAMP OPTION FOR SWA-50; "L x 2"H APPROACH RAMP OPTION FOR SWA-70. These values cover multiple models; consult the individual row for the model being quoted.

Power details mentioned in the catalog entry include 115V. Confirm which apply to the selected model or optional power package.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, pages 154, 155. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for powered stretch wrap machines?

The catalog records 30 model references for this family. The first listed model is SWA-50. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right powered stretch wrap machines configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
