Equipment details

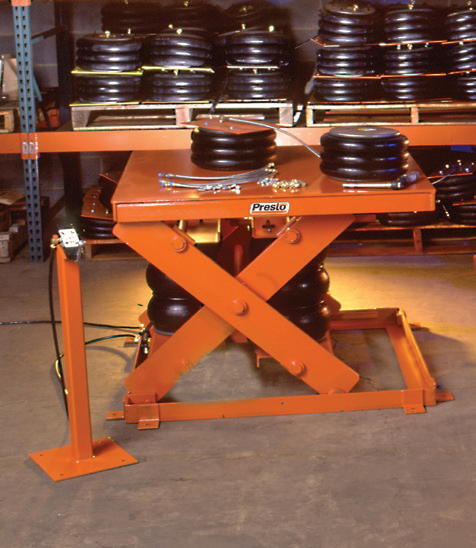

Presto AXS Heavy-Duty Pneumatic Lift Tables
AXS uses additional airbags to support heavier positioning loads, with different placement requirements from AX.
- Manufacturer
- Presto
- Catalog range
- AXS Heavy-Duty Pneumatic Lift Tables
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Vertical Travel | Base Size W x L | Platform Size W x L | Shipping Weight |
|---|---|---|---|---|---|---|---|
| AX10-3648 | 1000 lbs | 29" | 8" | 21" | 36 x 48" | 36 x 48" | 820 lbs |
| AX10-4848 | 1000 lbs | 29" | 8" | 21" | 36 x 48" | 48 x 48" | 890 lbs |
| AX10-4856 | 1000 lbs | 29" | 8" | 21" | 36 x 48" | 48 x 56" | 935 lbs |
| AX10-4860 | 1000 lbs | 29" | 8" | 21" | 36 x 48" | 48 x 60" | 960 lbs |
| AX20-3648 | 2000 lbs | 32" | 8" | 24" | 36 x 48" | 36 x 48" | 855 lbs |
| AX20-4848 | 2000 lbs | 32" | 8" | 24" | 36 x 48" | 48 x 48" | 915 lbs |
| AX20-4856 | 2000 lbs | 32" | 8" | 24" | 36 x 48" | 48 x 56" | 955 lbs |
| AX20-4860 | 2000 lbs | 32" | 8" | 24" | 36 x 48" | 48 x 60" | 1040 lbs |
| AX40-4848 | 4000 lbs | 32" | 8" | 24" | 48 x 48" | 48 x 48" | 1040 lbs |
| AX40-4856 | 4000 lbs | 32" | 8" | 24" | 48 x 48" | 48 x 56" | 1115 lbs |
| AX40-4860 | 4000 lbs | 32" | 8" | 24" | 48 x 48" | 48 x 60" | 1135 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | AX Pneumatic Scissor Lift Tables |
| Documented configurations | 11 |
| Lowered Height | 8" |
Source: Presto General Catalog 2026, PDF page 32. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
AX tables raise platforms through airbag actuation using shop air rather than a hydraulic power unit.
The source specifies 80 psi at 15 cfm and floor anchoring for AX. Compare platform, capacity and travel, then include the available air supply in the technical request.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 32. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a AX Pneumatic Scissor Lift Tables configuration?
The source specifies 80 psi at 15 cfm and floor anchoring for AX. Compare platform, capacity and travel, then include the available air supply in the technical request.
What should I provide for a AX Pneumatic Scissor Lift Tables quote?
For AX Pneumatic Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
